Congo Rubber Kits



Williams Electronics Games, Incorporated, a subsidiary of WMS Ind., Incorporated , November, 1995
4 Players , 5 Balls

(1)

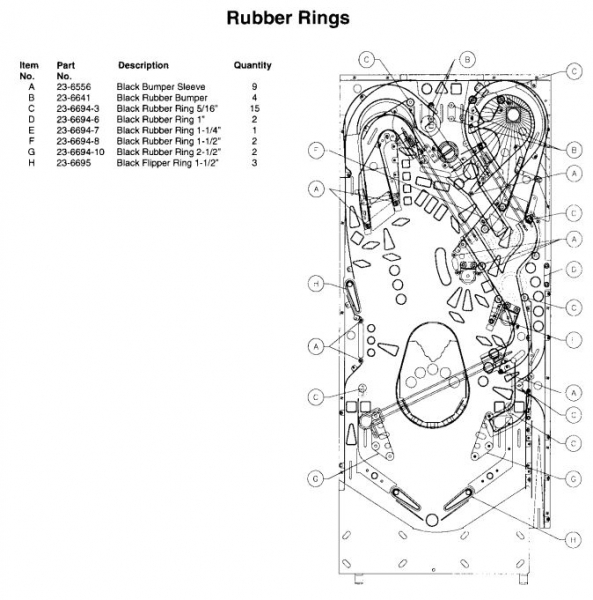

Standard kit from manual with green slings and flippers

Submitted by: Anonymous Anonymous
Submitted on: 2015-05-01 15:58:57 2015-05-01 15:58:57
View Full Kit

Post Sleeves - Standard
Black
Qty: 9
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 15
Rubber Rings - 1 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - 2 Inch I.D.
Green
Qty: 2
Rubber Rings - Flipper Standard
Green
Qty: 3
Rubber Rings - Shooter Tip
Green
Qty: 1
(0)

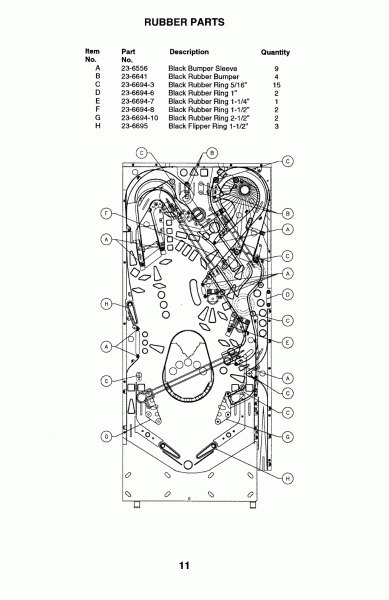

based on https://www.flippers.com/rings/congo-ring-chart.gif

Submitted by: Anonymous Anonymous
Submitted on: 2016-05-24 15:17:25 2016-05-24 15:17:25
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Black
Qty: 2
Rubber Rings - Flipper Standard
Black
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 15
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 4
(0)

Congo Kit in orange from the manual changing the 2" slings to 2-1/4"

Submitted by: Titan . Titan .
Submitted on: 2018-07-09 12:01:21 2018-07-09 12:01:21
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Orange
Qty: 9
Rubber Rings - 3/16 Inch I.D.
Orange
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Orange
Qty: 15
Rubber Rings - 1 Inch I.D.
Orange
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Orange
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Orange
Qty: 2
Rubber Rings - 2 1/4 Inch I.D.
Orange
Qty: 2
Rubber Rings - Flipper Standard
Orange
Qty: 3
Rubber Rings - Shooter Tip
Orange
Qty: 1
(0)

Congo Black, with Green Flipper and Shooter

Submitted by: Anonymous Anonymous
Submitted on: 2019-01-03 09:46:32 2019-01-03 09:46:32
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Black
Qty: 9
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 15
Rubber Rings - 1 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - Flipper Standard
Green
Qty: 3
Rubber Rings - Shooter Tip
Green
Qty: 1
Rubber Rings - 2 Inch I.D.
Black
Qty: 2
(0)

missing 6 post sleeves

Submitted by: Anonymous Anonymous
Submitted on: 2019-05-01 14:02:19 2019-05-01 14:02:19
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Orange
Qty: 3
Rubber Rings - Shooter Tip
Orange
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Orange
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Purple
Qty: 15
Post Sleeves - Standard
Green
Qty: 3
Rubber Rings - 3/16 Inch I.D.
Yellow
Qty: 4
Rubber Rings - 1 Inch I.D.
Purple
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Purple
Qty: 2
(0)

Same sizes as original, color matched to the various playfield / plastics artwork. I counted one more 5/16" on my playfield than shown in the manual, hidden behind the volcano

Submitted by: Hans H. Hans H.
Submitted on: 2021-04-23 21:01:44 2021-04-23 21:01:44
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Grey
Qty: 2
Post Sleeves - Standard
Green
Qty: 5
Post Sleeves - Standard
Red
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Yellow
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Orange
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Green
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 5
Rubber Rings - 1 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Red
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Red
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Orange
Qty: 2
Rubber Rings - Flipper Standard
Orange
Qty: 2
Rubber Rings - Flipper Standard
Blue
Qty: 1
(0)

Straight from the manual in all black

Submitted by: Anonymous Anonymous
Submitted on: 2023-06-06 13:16:39 2023-06-06 13:16:39
View Full Kit

Post Sleeves - Standard
Black
Qty: 9
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 15
Rubber Rings - 1 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - Flipper Standard
Black
Qty: 3
(0)

Color matched to playfield w/ Oranger shooter tip!!

Submitted by: Eric B. Eric B.
Submitted on: 2024-10-20 16:58:13 2024-10-20 16:58:13
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Grey
Qty: 2
Post Sleeves - Standard
Green
Qty: 5
Post Sleeves - Standard
Red
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Yellow
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Orange
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Green
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 5
Rubber Rings - 1 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Red
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Red
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Orange
Qty: 2
Rubber Rings - Flipper Standard
Orange
Qty: 2
Rubber Rings - Flipper Standard
Blue
Qty: 1
Rubber Rings - Shooter Tip
Orange
Qty: 1
