El Dorado Rubber Kits



D. Gottlieb & Company , March, 1975
1 Players

(0)

Standard colors

Submitted by: Anonymous Anonymous
Submitted on: 2018-03-06 10:26:49 2018-03-06 10:26:49
View Full Kit

Rubber Rings - 5/16 Inch I.D.
White
Qty: 8
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Rubber Rings - 2 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 3 Inch I.D.
White
Qty: 5
Rubber Rings - Flipper 3/8 Inch
Red
Qty: 2
Rubber Rings - Flipper Standard
Red
Qty: 2
Post Sleeves - Standard
White
Qty: 7
Rubber Rings - Shooter Tip
White
Qty: 1
(0)

El Dorado "Bandit Edition"

Submitted by: Anonymous Anonymous
Submitted on: 2019-08-19 11:39:52 2019-08-19 11:39:52
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Shooter Tip
Translucent
Qty: 1
Rubber Rings - Flipper 3/8 Inch
Black
Qty: 2
Rubber Rings - Flipper Beaded
Black
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 7
Rubber Rings - 3 Inch I.D.
Black
Qty: 8
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - 2 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 Inch I.D.
Black
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 8
(0)

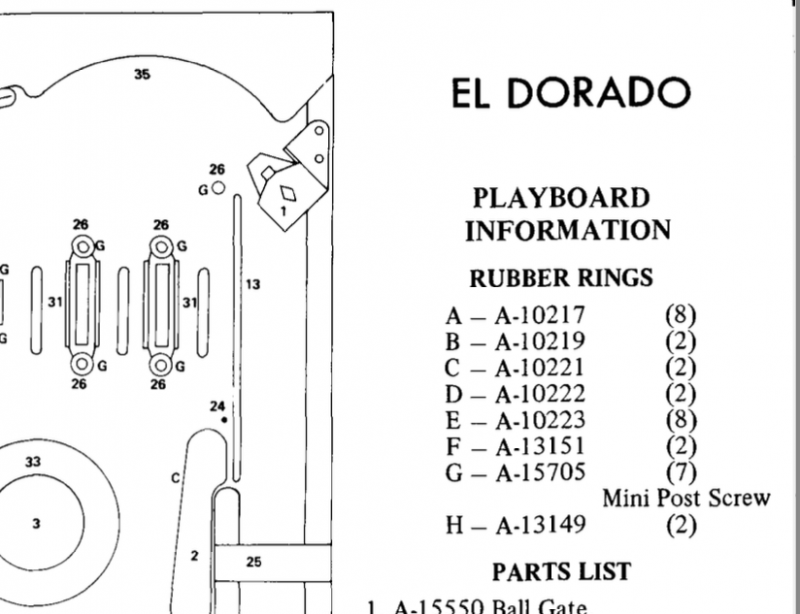

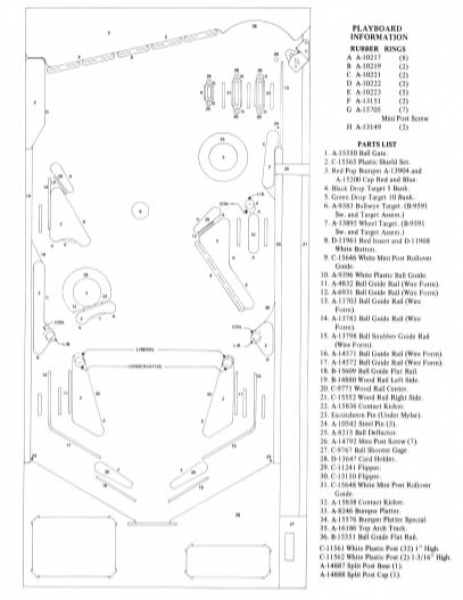

The other "standard" kit for this game is so comically incorrect. Here is the correct kit featuring the correct parts. The manual seems to be incorrect in the number of listings of the 3" rubbers as well, requiring only 5 in actuality. Please note that the replacement for "A-15705" is very subjective. You can size up to the 7/16 o.d. that the part number calls for, but may find that you prefer to use the 3/8 o.d. to make the upper rollover lanes easier to shoot. Using the 7/16" o.d. in the top post next to the shooter ball gate may cause issue even though the part number calls for it.

Submitted by: Anonymous Anonymous
Submitted on: 2023-07-22 13:10:02 2023-07-22 13:10:02
View Full Kit

Rubber Rings - 5/16 Inch I.D.
White
Qty: 8
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Rubber Rings - 2 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 3 Inch I.D.
White
Qty: 5
Rubber Rings - Flipper 3/8 Inch
Red
Qty: 2
Rubber Rings - Flipper Beaded
Red
Qty: 2
Rubber Rings - 3/8 Inch O.D.
White
Qty: 7
Rubber Rings - Shooter Tip
White
Qty: 1
