Fathom Rubber Kits



Bally Manufacturing Corporation , August, 1981
4 Players

(0)

Standard White kit from manual with yellow flippers

Submitted by: Anonymous Anonymous
Submitted on: 2015-04-28 10:07:57 2015-04-28 10:07:57
View Full Kit

Rubber Rings - Flipper Standard
Yellow
Qty: 3
Rubber Rings - 1 Inch I.D.
White
Qty: 4
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - 5/16 Inch I.D.
White
Qty: 8
Rubber Rings - 3/8 Inch O.D.
White
Qty: 10
(0)

Fathom Clear Kit With Blue Shooter Tip.

Submitted by: Anonymous Anonymous
Submitted on: 2016-03-10 03:35:00 2016-03-10 03:35:00
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 8
Rubber Rings - Shooter Tip
Lt. Blue
Qty: 1
(0)

Glow in the dark competition kit

Submitted by: Craig S. Craig S.
Submitted on: 2016-08-16 11:26:29 2016-08-16 11:26:29
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 1 Inch I.D.
Glow
Qty: 4
Rubber Rings - 1 1/2 Inch I.D.
Glow
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
Glow
Qty: 2
Rubber Rings - 3 Inch I.D.
Glow
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Glow
Qty: 11
Rubber Rings - Flipper Standard
Glow
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Glow
Qty: 10
Rubber Rings - Shooter Tip
Glow
Qty: 1
Misc - Post Cap
Glow
Qty: 20
(0)

Fathom kit

Submitted by: Anonymous Anonymous
Submitted on: 2017-05-15 06:03:41 2017-05-15 06:03:41
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
White
Qty: 8
Rubber Rings - 1 Inch I.D.
White
Qty: 4
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - Flipper Standard
Blue
Qty: 3
Rubber Rings - Shooter Tip
Blue
Qty: 1
Misc - Post Cap
Blue
Qty: 20
(0)

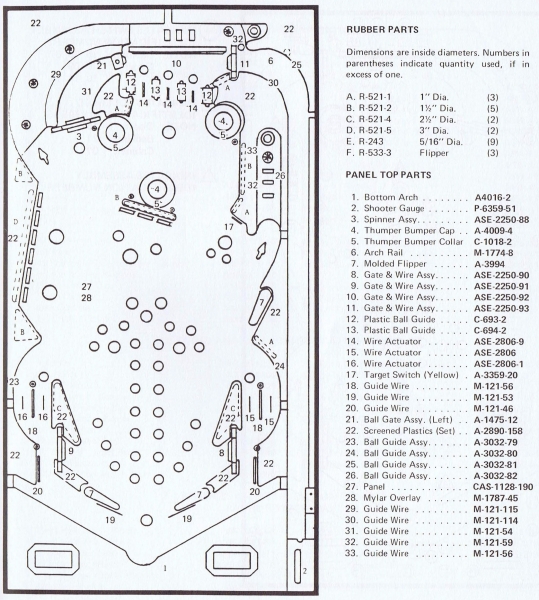

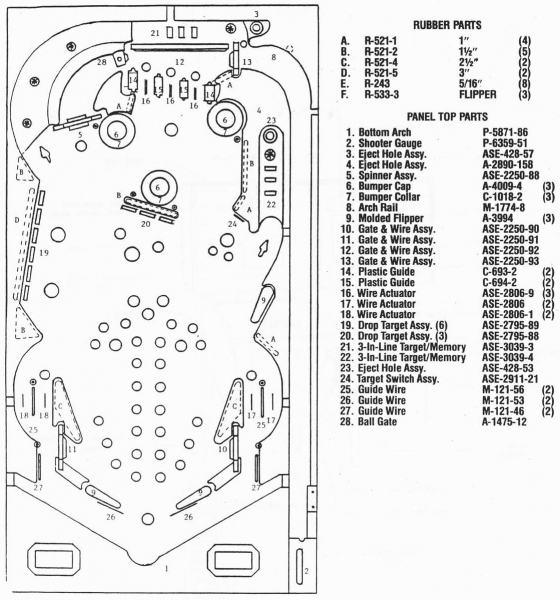

Standard colors, with post caps; no extras. First image is from the 1981 Bally parts catalog. Second image is from the Fathom manual. Both are wrong.

Submitted by: Vaughn S. Vaughn S.
Submitted on: 2021-01-11 09:02:02 2021-01-11 09:02:02
View Full Kit

Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - 3/16 Inch I.D.
White
Qty: 1
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 4
Rubber Rings - 1 Inch I.D.
White
Qty: 3
Rubber Rings - 3/16 Inch I.D.
White
Qty: 1
Rubber Rings - Shooter Tip
White
Qty: 1
Misc - Post Cap
White
Qty: 20
Rubber Rings - 5/16 Inch I.D.
White
Qty: 10
Rubber Rings - 3/4 Inch I.D.
White
Qty: 1
(0)

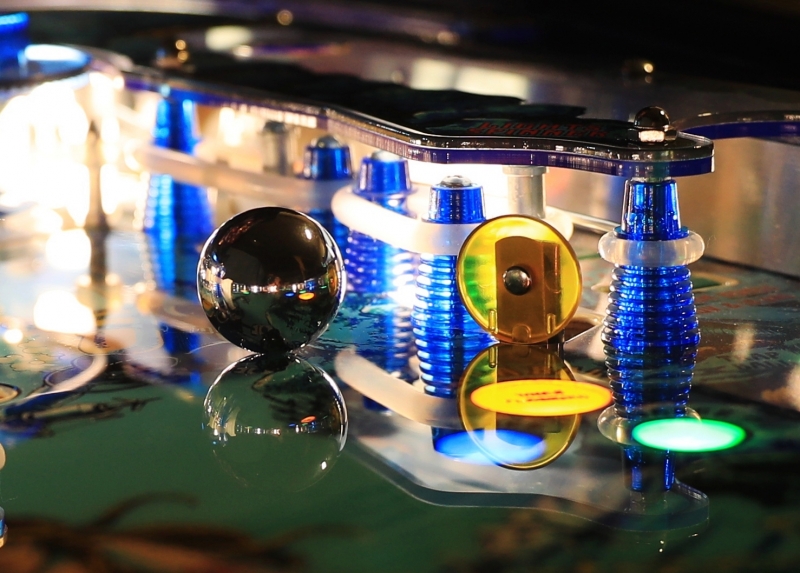

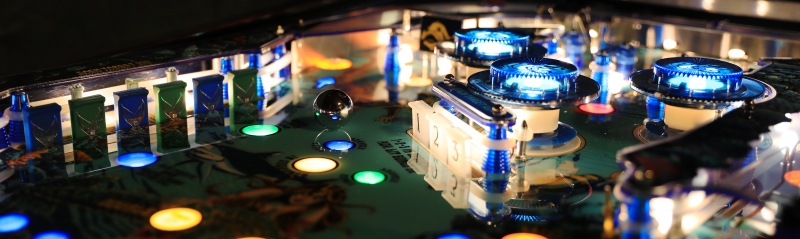

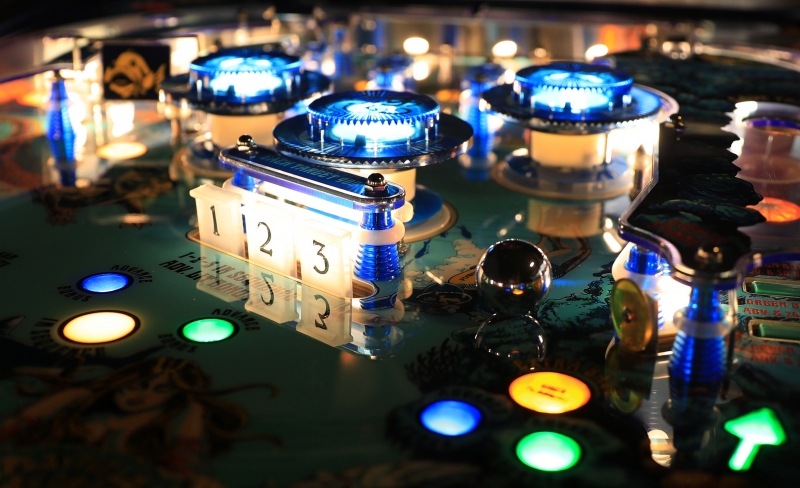

Clear Everything. I used the translucent blue flipper bats to compliment the clear flipper rubbers. Translucent rubbers let more light thru -- also feel more underwatery to me.

Submitted by: Dave H. Dave H.
Submitted on: 2021-02-19 16:52:25 2021-02-19 16:52:25
View Full Kit

Rubber Rings - Flipper Standard
Translucent
Qty: 3
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 8
(0)

all clear except: added some blue/green flipper options

Submitted by: Anonymous Anonymous
Submitted on: 2022-03-31 10:18:50 2022-03-31 10:18:50
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Translucent
Qty: 3
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 8
Rubber Rings - Flipper Standard
Blue
Qty: 3
Rubber Rings - Flipper Standard
Green
Qty: 1
(0)

underwater

Submitted by: Anonymous Anonymous
Submitted on: 2023-02-04 12:25:59 2023-02-04 12:25:59
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Translucent
Qty: 3
Rubber Rings - 3/16 Inch I.D.
Green
Qty: 11
Rubber Rings - 3 Inch I.D.
Green
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Green
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Green
Qty: 5
Rubber Rings - 1 Inch I.D.
Green
Qty: 4
Rubber Rings - Shooter Tip
Green
Qty: 1
Misc - Post Cap
Green
Qty: 20
Rubber Rings - 5/16 Inch I.D.
Green
Qty: 10
Rubber Rings - 3/4 Inch I.D.
Green
Qty: 1
Rubber Rings - Shooter Tip
Blue
Qty: 1
(0)

Fathom- clear w/ blue shooter. Glow option for flippers and 3/8od rings

Submitted by: Anonymous Anonymous
Submitted on: 2023-06-16 13:48:56 2023-06-16 13:48:56
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 8
Rubber Rings - Shooter Tip
Lt. Blue
Qty: 1
Rubber Rings - Flipper Standard
Translucent
Qty: 3
Rubber Rings - Flipper Standard
Glow
Qty: 3
Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 10
Rubber Rings - 3/8 Inch O.D.
Glow
Qty: 10
