(0)

glow ring kit

Submitted by: Anonymous Anonymous

Submitted on: 2015-08-28 17:14:54 2015-08-28 17:14:54

(0)

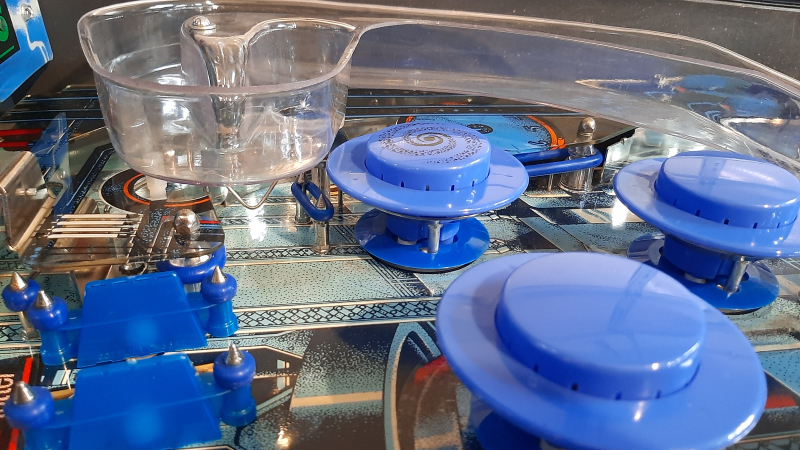

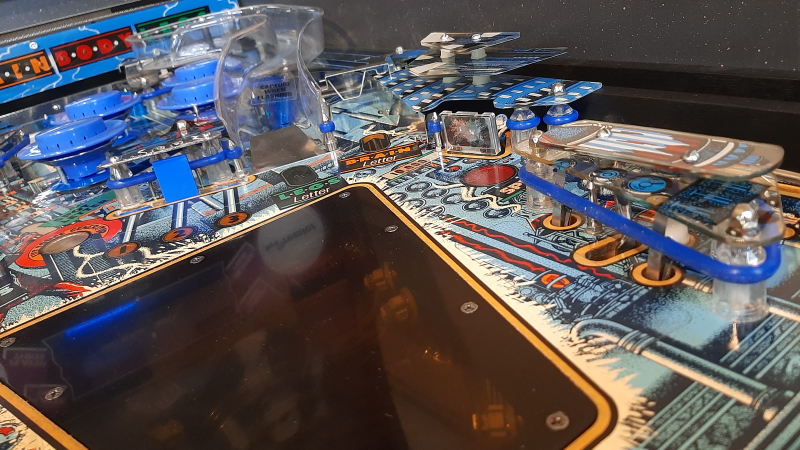

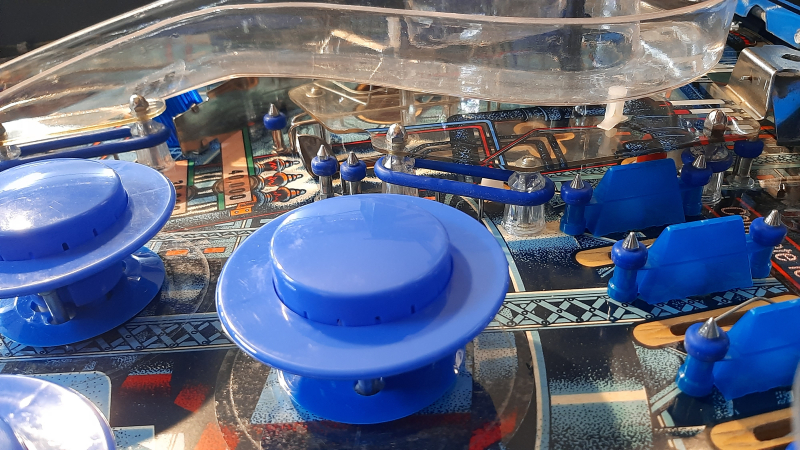

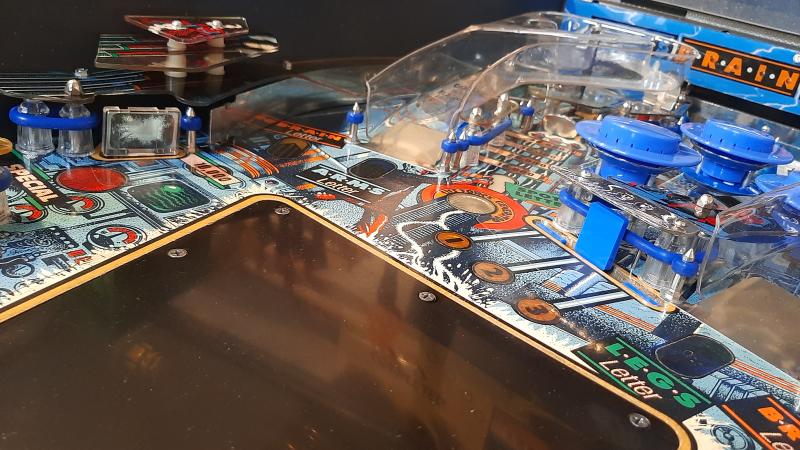

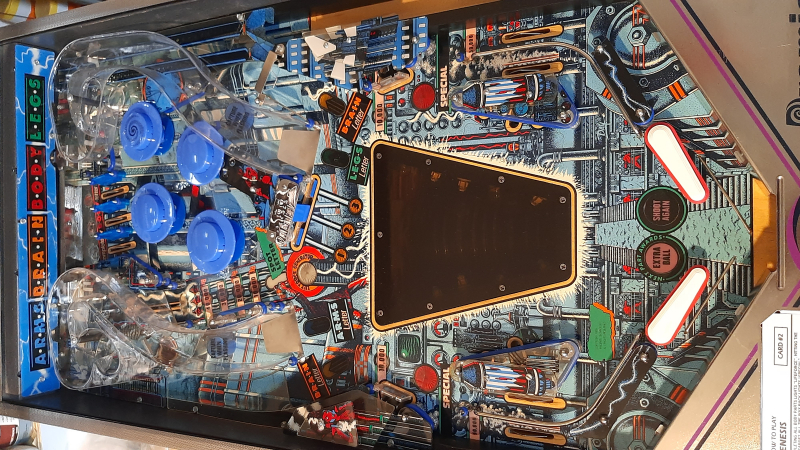

I want this to be an accurate rings list for Genesis. Please see photos for more details. Any issues, please email me [email protected] -dave

Submitted by: David D. David D.

Submitted on: 2016-03-25 19:49:01 2016-03-25 19:49:01

(0)

Classic White rubber

Submitted by: Anonymous Anonymous

Submitted on: 2018-08-05 14:28:34 2018-08-05 14:28:34

(0)

UV reactive

Submitted by: Anonymous Anonymous

Submitted on: 2019-03-13 19:12:35 2019-03-13 19:12:35

(0)

Clear set with purple flippers

Submitted by: Anonymous Anonymous

Submitted on: 2020-11-26 12:24:04 2020-11-26 12:24:04

(0)

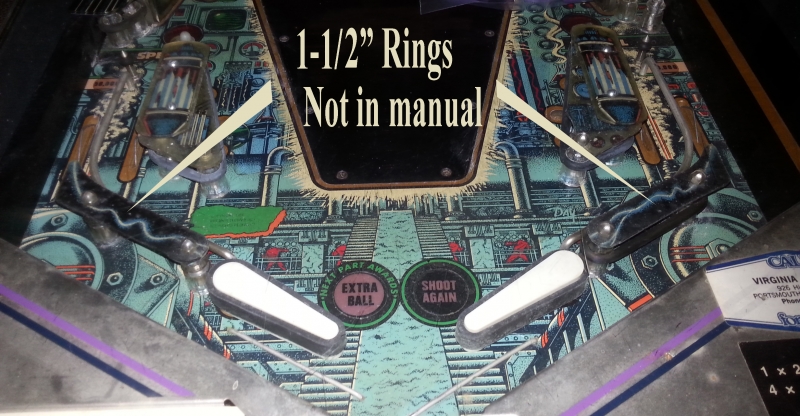

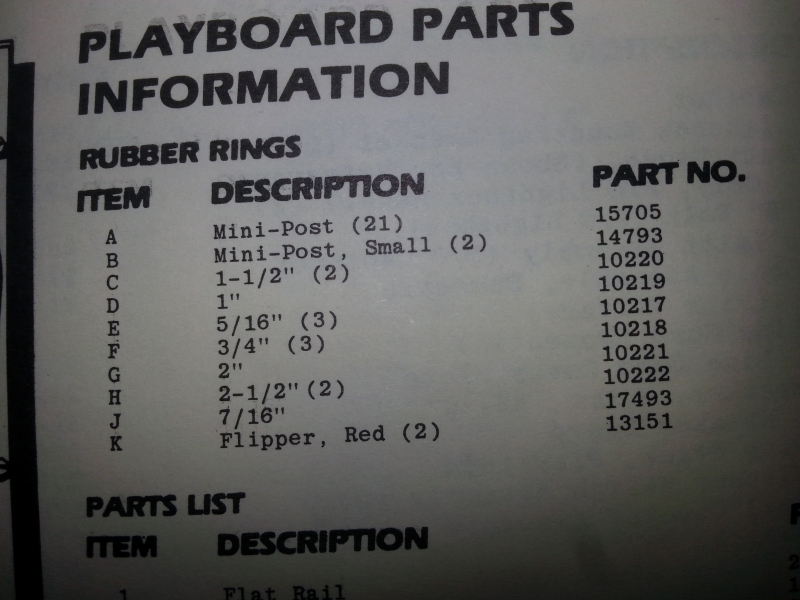

[Tested and Complete] Made using a test kit of Titan rubbers on the actual game for proper tensions, some sizes in the manual aren't suited as traditional rubber has a different tension and stretch than silicone. Photos show different flipper rubbers than the kit. Ideally, the 7/16" ID rubber should be bigger, but 3/4" is too big. Install Guide: (2) 2.75", slingshots | (1) 2", behind drops | (2) 1.5", below top-right pop bumper, and below vari-target | (1) 1.25", right of vari-target | (1) 1", below bottom-middle pop bumper | (1) 0.75", below shooter lane entry gate | (1) 7/16" ID, across the two spike posts above top-right pop bumper | (7) 5/16" ID, 2 above right outlane, 1 top-left of toplanes, 4 to support back of inlane guide wires | (22) 7/16" OD, spike posts including one in the outhole | (2) 3/8" OD, for the inlane/outlane spike posts

Submitted by: Anonymous Anonymous

Submitted on: 2023-05-02 09:48:15 2023-05-02 09:48:15
