Gilligan's Island Rubber Kits



Midway Manufacturing Company, a subsidiary of WMS Industries, Incorporated , May, 1991
4 Players

(0)

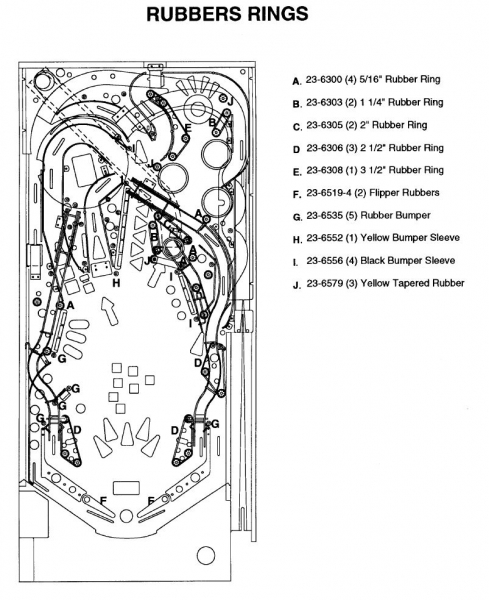

From the manual

Submitted by: Titan . Titan .
Submitted on: 2017-09-03 10:28:48 2017-09-03 10:28:48
View Full Kit

Rubber Rings - 5/16 Inch I.D.
White
Qty: 4
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 2 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 3
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 5
Post Sleeves - 7/8 Inch
Yellow
Qty: 1
Post Sleeves - Standard
Black
Qty: 4
Post Sleeves - Tapered Post
Yellow
Qty: 3
(0)

All clear with yellow posts and flippers

Submitted by: Anonymous Anonymous
Submitted on: 2019-12-15 08:09:55 2019-12-15 08:09:55
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 3 1/2 Inch I.D.
Translucent
Qty: 1
Rubber Rings - Flipper Standard
Yellow
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 5
Post Sleeves - 7/8 Inch
Yellow
Qty: 1
Post Sleeves - Standard
Yellow
Qty: 4
Post Sleeves - Tapered Post
Yellow
Qty: 3
Rubber Rings - Shooter Tip
Yellow
Qty: 1
(0)

Standard black kit with red flippers.

Submitted by: Steven E. Steven E.
Submitted on: 2020-04-04 23:22:15 2020-04-04 23:22:15
View Full Kit

Rubber Rings - 5/16 Inch I.D.
Black
Qty: 4
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 2 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 3
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - Flipper Standard
Black
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 5
Post Sleeves - 7/8 Inch
Green
Qty: 1
Post Sleeves - Tapered Post
Green
Qty: 1
Rubber Rings - Shooter Tip
Black
Qty: 1
Post Sleeves - Standard
Lt. Blue
Qty: 2
Post Sleeves - Standard
Green
Qty: 2
Post Sleeves - Tapered Post
Blue
Qty: 1
Post Sleeves - Tapered Post
Lt. Blue
Qty: 1
(0)

All translucent with red flipper rubber and a set of orange flipper rubber to see what looks better

Submitted by: Anonymous Anonymous
Submitted on: 2022-07-18 16:19:18 2022-07-18 16:19:18
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 3 1/2 Inch I.D.
Translucent
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 5
Post Sleeves - 7/8 Inch
Yellow
Qty: 1
Post Sleeves - Standard
Yellow
Qty: 4
Post Sleeves - Tapered Post
Yellow
Qty: 3
Rubber Rings - Shooter Tip
Yellow
Qty: 1
Rubber Rings - Flipper Standard
Orange
Qty: 2
(0)

Gilligan's Island in Green with Yellow posts, brought to you by Randy's Pinball Repair in Maryville Tn.

Submitted by: Anonymous Anonymous
Submitted on: 2023-05-31 15:08:14 2023-05-31 15:08:14
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Green
Qty: 4
Rubber Rings - 1 1/4 Inch I.D.
Green
Qty: 2
Rubber Rings - 2 Inch I.D.
Green
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Green
Qty: 3
Rubber Rings - 3 1/2 Inch I.D.
Green
Qty: 1
Rubber Rings - Flipper Standard
Green
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Green
Qty: 5
Post Sleeves - 7/8 Inch
Yellow
Qty: 1
Post Sleeves - Tapered Post
Yellow
Qty: 1
Rubber Rings - Shooter Tip
Green
Qty: 1
Post Sleeves - Standard
Lt. Blue
Qty: 2
Post Sleeves - Standard
Green
Qty: 2
Post Sleeves - Tapered Post
Blue
Qty: 1
Post Sleeves - Tapered Post
Lt. Blue
Qty: 1
(0)

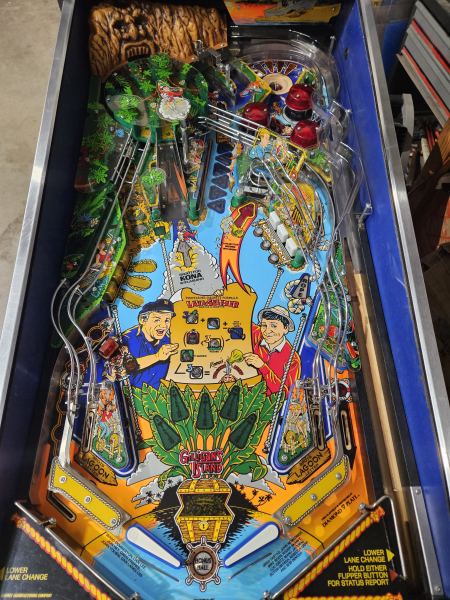

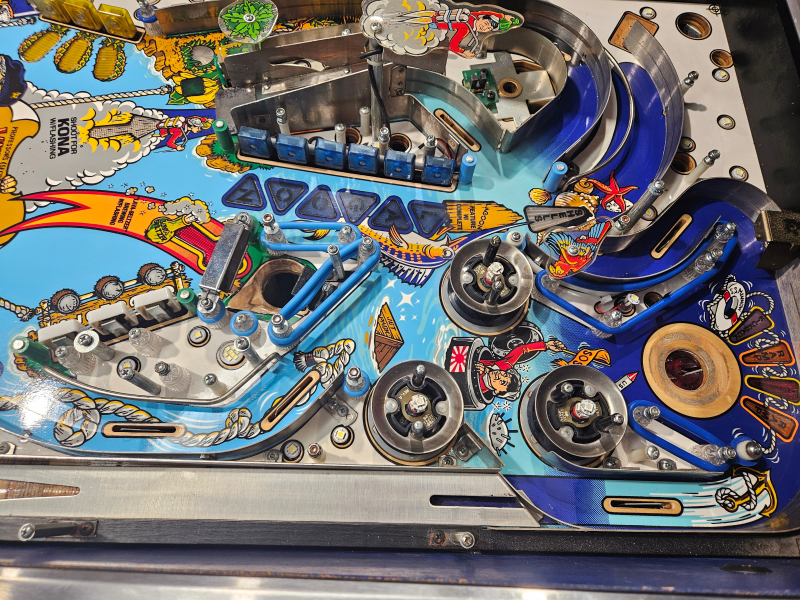

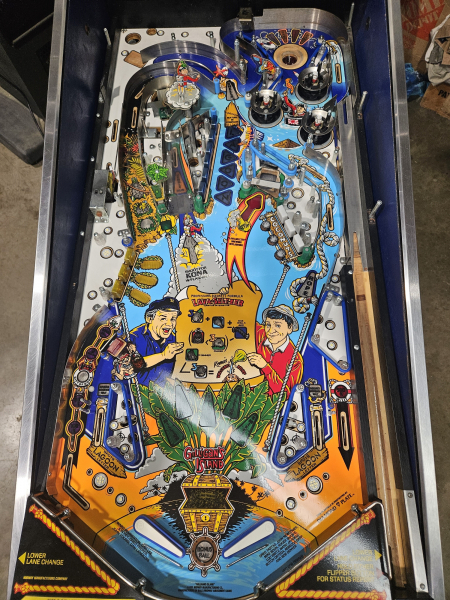

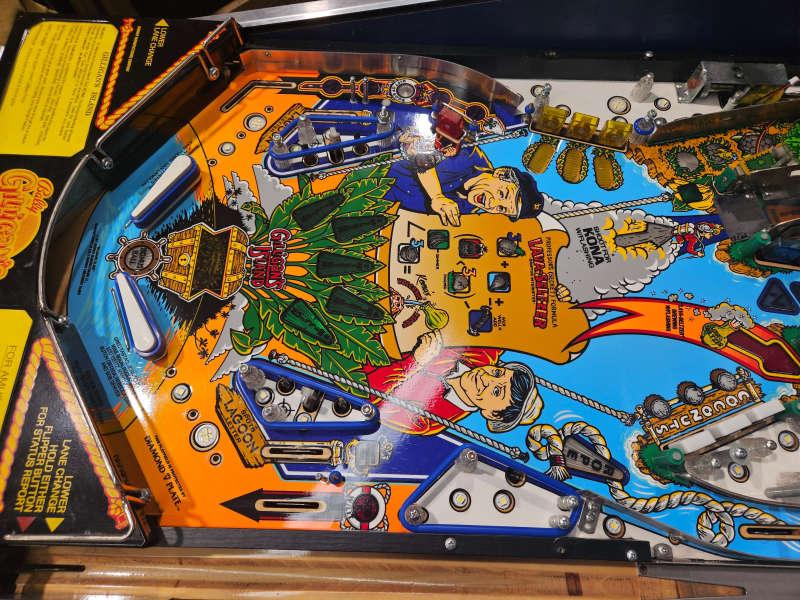

Color matched and confirmed complete. See pictures for band locations. The manual calls for a tapered bell post sleeve (pictured in green) just to the right of the Lagoon "N". This kit also includes a regular green post sleeve if you prefer that instead. If not simply delete the last line.

Submitted by: Derrick W. Derrick W.
Submitted on: 2023-07-31 09:10:42 2023-07-31 09:10:42
View Full Kit

Rubber Rings - Flipper Standard
Blue
Qty: 2
Post Sleeves - Standard
Green
Qty: 3
Post Sleeves - Standard
Lt. Blue
Qty: 2
Post Sleeves - Tapered Post
Blue
Qty: 1
Post Sleeves - Tapered Post
Green
Qty: 1
Post Sleeves - Tapered Post
Lt. Blue
Qty: 1
Rubber Rings - Shooter Tip
Blue
Qty: 1
Rubber Rings - 4 Inch I.D.
Blue
Qty: 1
Rubber Rings - 3 Inch I.D.
Blue
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Blue
Qty: 2
Rubber Rings - 2 Inch I.D.
Lt. Blue
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Blue
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Lt. Blue
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Lt. Blue
Qty: 3
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 4
Post Sleeves - Standard
Green
Qty: 1
