Grand Lizard Rubber Kits



Williams Electronics Games, Incorporated, a subsidiary of WMS Ind., Incorporated , April, 1986
4 Players

(0)

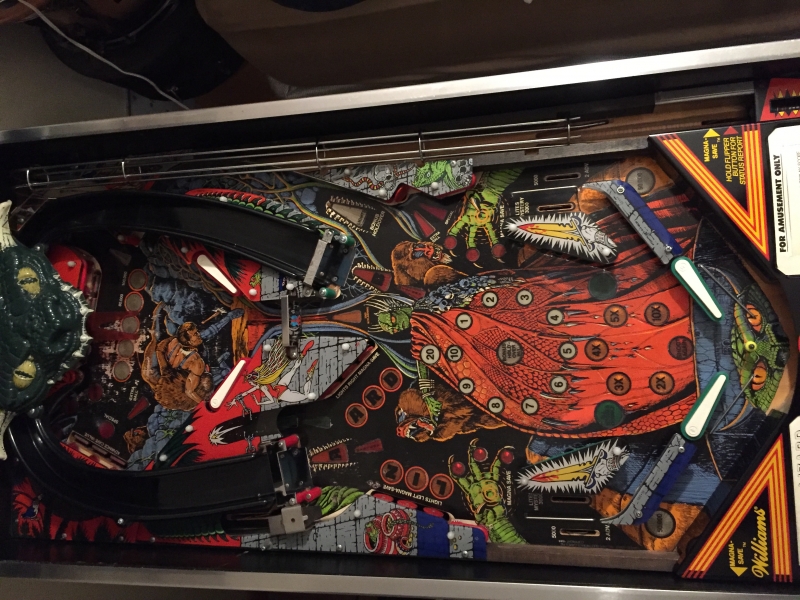

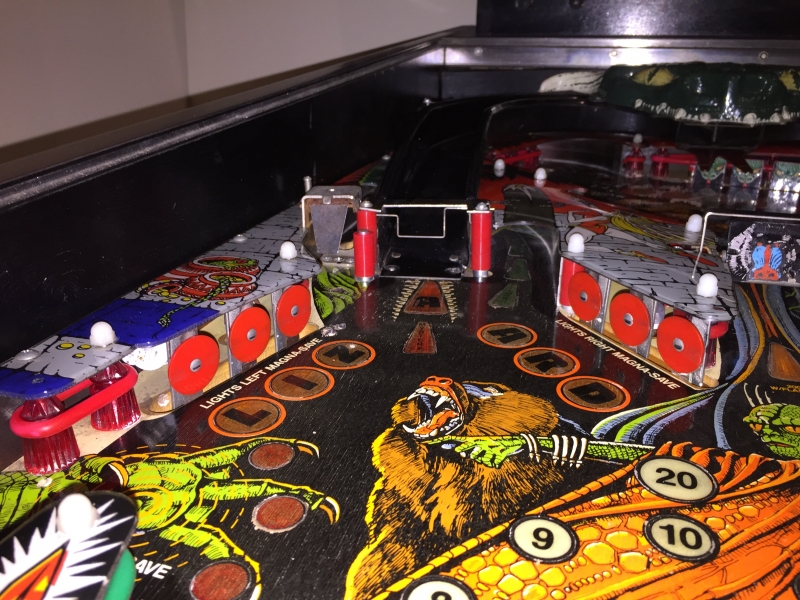

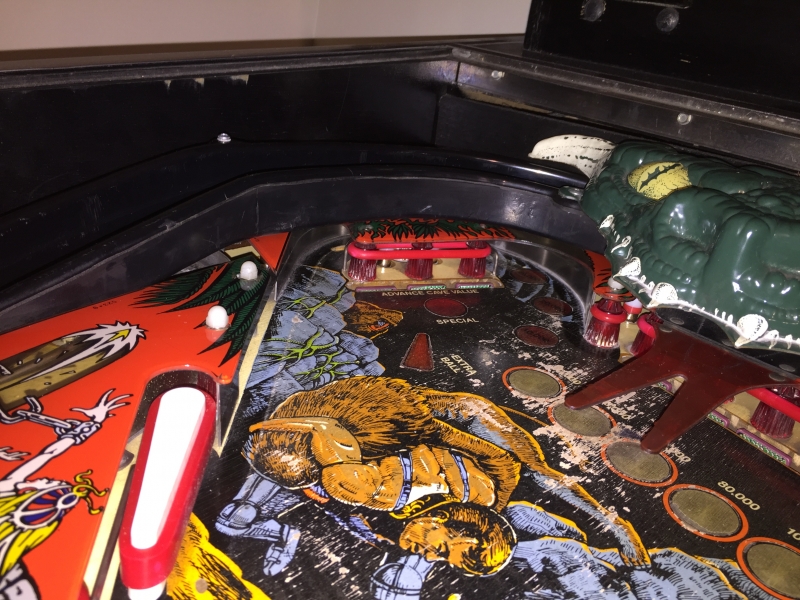

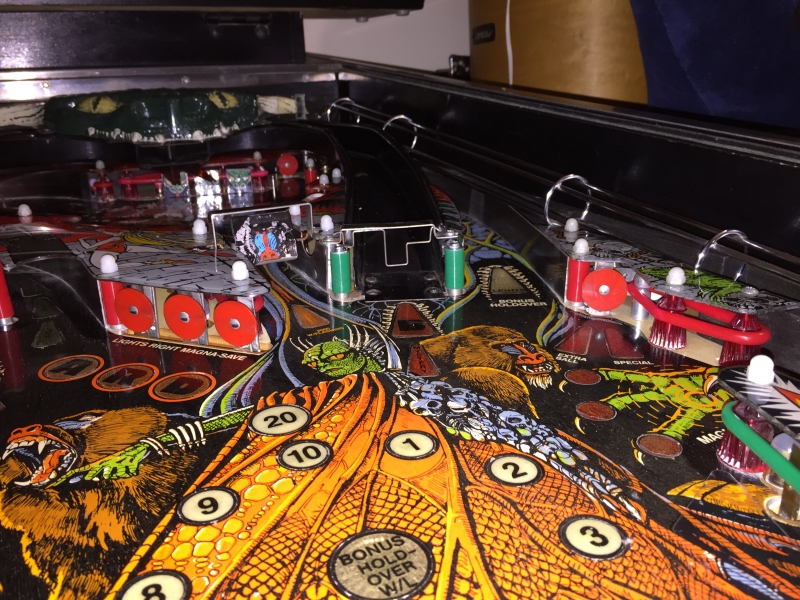

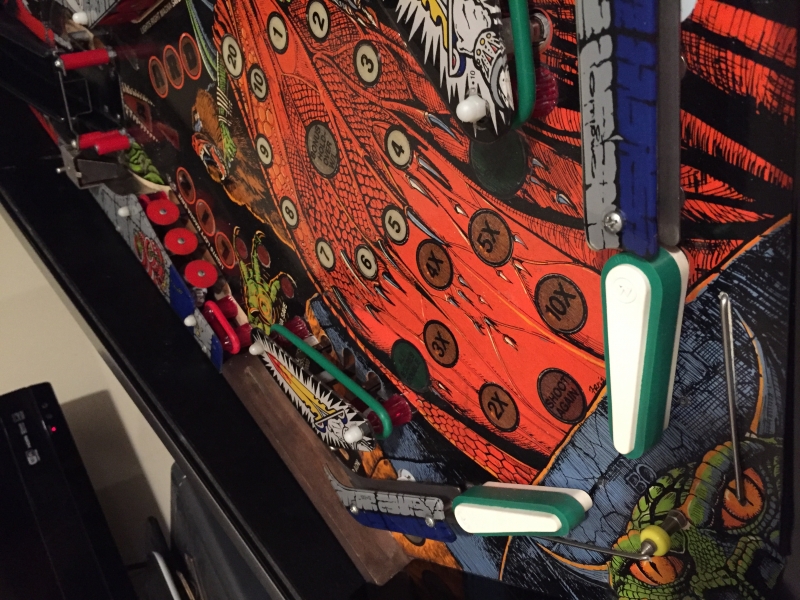

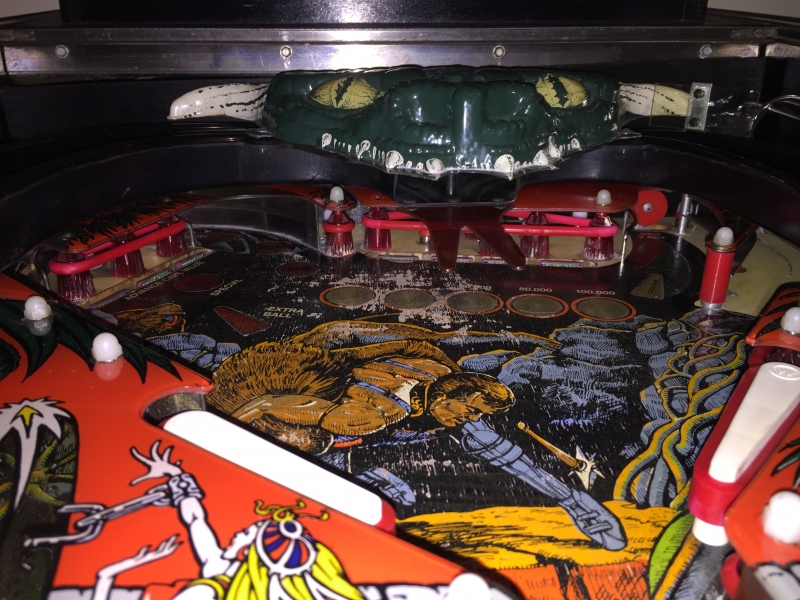

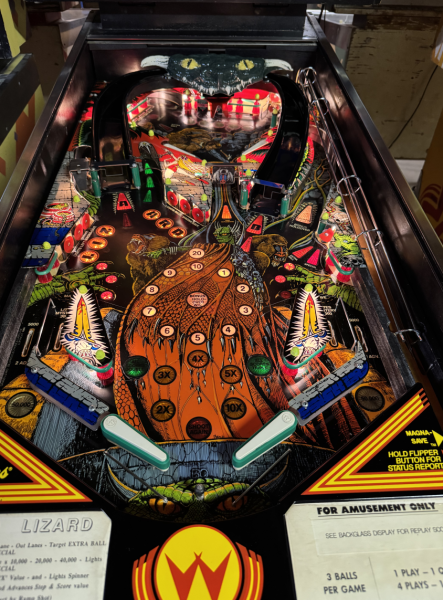

Green lower flippers and sling red upper flippers. Green and red posts. Remaining rubber red.

Submitted by: Jim C. Jim C.
Submitted on: 2017-01-16 09:45:46 2017-01-16 09:45:46
View Full Kit

Rubber Rings - 2 1/2 Inch I.D.
Red
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Red
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Red
Qty: 3
Post Sleeves - Standard
Red
Qty: 7
Rubber Rings - 2 1/2 Inch I.D.
Green
Qty: 2
Post Sleeves - Standard
Green
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Yellow
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 4
Rubber Rings - Shooter Tip
Green
Qty: 1
Rubber Rings - Flipper Standard
Green
Qty: 2
Rubber Rings - Flipper Standard
Red
Qty: 2
(0)

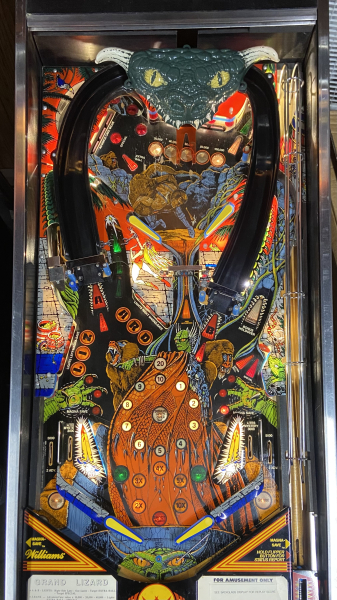

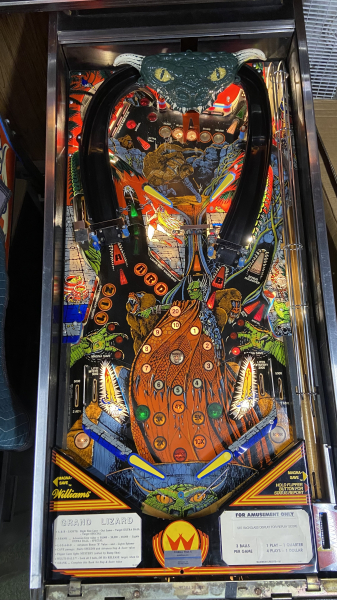

. No plastic-securing post cap rubbers on this kit. I used a lot of blue in photo. Choose whatever colors you like. Quantity and sizes listed in Kit are correct.

Submitted by: Dave W. Dave W.
Submitted on: 2024-09-09 17:14:05 2024-09-09 17:14:05
View Full Kit

Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 3
Rubber Rings - 3/4 Inch I.D.
White
Qty: 3
Post Sleeves - Standard
Blue
Qty: 9
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 1
Rubber Rings - 5/16 Inch I.D.
White
Qty: 4
Rubber Rings - Shooter Tip
Blue
Qty: 1
Rubber Rings - Flipper Standard
Lt. Blue
Qty: 2
Rubber Rings - Flipper Standard
Blue
Qty: 2
(0)

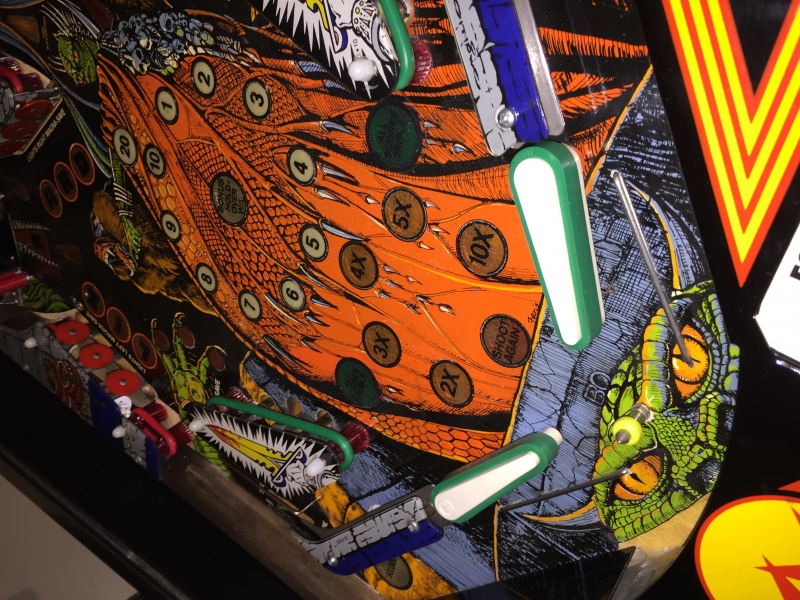

All green! There are two places where two individual 5/16" rings are replaced with a single 3/4" ring. Both locations are under the center plastic, just to the left of the spinner. The two posts on the left ramp entrance will require you to trim one of the post sleeves and add it to a full one to cover the entire post.

Submitted by: Marc S. Marc S.
Submitted on: 2024-09-23 20:04:42 2024-09-23 20:04:42
View Full Kit

Rubber Rings - 2 1/2 Inch I.D.
Green
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Green
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Green
Qty: 3
Post Sleeves - Standard
Green
Qty: 9
Rubber Rings - 7/16 Inch I.D.
Green
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Green
Qty: 4
Rubber Rings - Shooter Tip
Green
Qty: 1
Rubber Rings - Low Bounce Standard Flipper
Green
Qty: 4
Rubber Rings - 3/8 Inch O.D.
Green
Qty: 1
