Hurricane Rubber Kits



Williams Electronics Games, Incorporated, a subsidiary of WMS Ind., Incorporated , August, 1991
4 Players , 3 Balls

(0)

From the manual with yellow flipper rings.

Submitted by: James T. James T.
Submitted on: 2018-11-21 14:55:52 2018-11-21 14:55:52
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
White
Qty: 2
Rubber Rings - 3/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 5
Rubber Rings - Flipper Standard
Yellow
Qty: 2
Post Sleeves - Standard
Yellow
Qty: 1
Post Sleeves - Standard
Blue
Qty: 1
Post Sleeves - Tapered Post
Yellow
Qty: 2
Rubber Rings - 3/16 Inch I.D.
White
Qty: 1
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - 3/8 Inch O.D.
White
Qty: 4
(0)

Hurricane

Submitted by: Anonymous Anonymous
Submitted on: 2018-12-26 09:31:35 2018-12-26 09:31:35
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 5
Rubber Rings - Flipper Standard
Yellow
Qty: 2
Post Sleeves - Standard
Yellow
Qty: 1
Post Sleeves - Standard
Blue
Qty: 1
Post Sleeves - Tapered Post
Yellow
Qty: 2
Rubber Rings - 3/16 Inch I.D.
White
Qty: 1
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - 3/8 Inch O.D.
White
Qty: 4
(0)

Hurricane with extra color 2 1/2 to see what looks best

Submitted by: Anonymous Anonymous
Submitted on: 2018-12-26 09:48:58 2018-12-26 09:48:58
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
White
Qty: 2
Rubber Rings - 3/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 5
Rubber Rings - Flipper Standard
Yellow
Qty: 2
Post Sleeves - Standard
Yellow
Qty: 1
Post Sleeves - Standard
Blue
Qty: 1
Post Sleeves - Tapered Post
Yellow
Qty: 2
Rubber Rings - 3/16 Inch I.D.
White
Qty: 1
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - 3/8 Inch O.D.
White
Qty: 4
(0)

Extra color 2 1/2

Submitted by: Anonymous Anonymous
Submitted on: 2018-12-26 10:02:43 2018-12-26 10:02:43
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
Blue
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Red
Qty: 2
Rubber Rings - Flipper Standard
Blue
Qty: 2
Post Sleeves - Standard
Green
Qty: 1
Post Sleeves - Standard
Blue
Qty: 1
Post Sleeves - Standard
Orange
Qty: 2
Post Sleeves - Standard
Yellow
Qty: 2
Post Sleeves - Tapered Post
Yellow
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 1
Rubber Rings - Shooter Tip
Blue
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 4
(0)

List started from manual and modified based on installation. Translucent rings - yellow flippers, colored sleeves per manual. Changes: Removed 3/4 Bumper - Changed for Tapered post Added: 3/8 OD Mini Post x4 - 1 on ramp, 1 between Ferris wheels and two near out-lanes Added: 1x Yellow Post Sleeve near left pop bumper Added: 3/16 Ring (Item I in manual)

Submitted by: Chris P. Chris P.
Submitted on: 2022-03-12 14:58:49 2022-03-12 14:58:49
View Full Kit

Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 5
Rubber Rings - Shooter Tip
Translucent
Qty: 1
Rubber Rings - Low Bounce Standard Flipper
Yellow
Qty: 2
Post Sleeves - Tapered Post
Yellow
Qty: 2
Post Sleeves - Standard
Yellow
Qty: 2
Post Sleeves - Standard
Blue
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 1
Verified
(0)

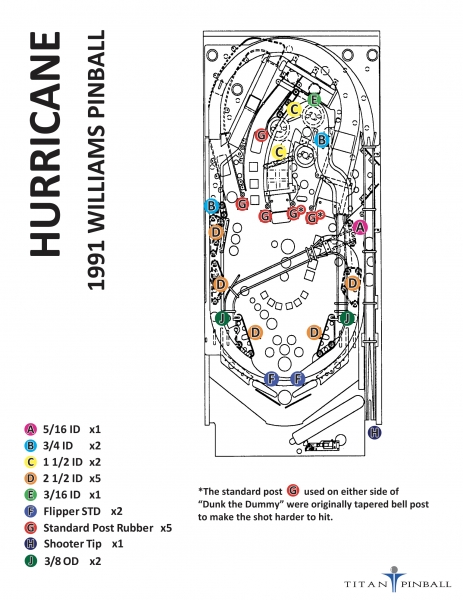

Custom Titan Pinball kit for Hurricane. The standard post used on either side of “Dunk the Dummy” were originally tapered bell post to make the shot harder to hit.

Submitted by: Titan . Titan .
Submitted on: 2022-03-13 11:14:18 2022-03-13 11:14:18
View Full Kit

Rubber Rings - 5/16 Inch I.D.
Grey
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Grey
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Grey
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Grey
Qty: 5
Rubber Rings - 3/16 Inch I.D.
Grey
Qty: 1
Rubber Rings - Flipper Standard
Blue
Qty: 2
Post Sleeves - Standard
Grey
Qty: 5
Rubber Rings - Shooter Tip
Grey
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Grey
Qty: 2
(0)

Hurricane Kit

Submitted by: Anonymous Anonymous
Submitted on: 2024-02-22 11:07:44 2024-02-22 11:07:44
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Glow
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Orange
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Glow
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Orange
Qty: 2
Rubber Rings - Shooter Tip
Orange
Qty: 1
Post Sleeves - Standard
Orange
Qty: 3
Post Sleeves - Standard
Glow
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Orange
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Red
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Glow
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Orange
Qty: 2
