Indiana Jones: The Pinball Adventure Rubber Kits



Williams Electronics Games, Incorporated, a subsidiary of WMS Ind., Incorporated , August, 1993
4 Players , 6 Balls

(0)

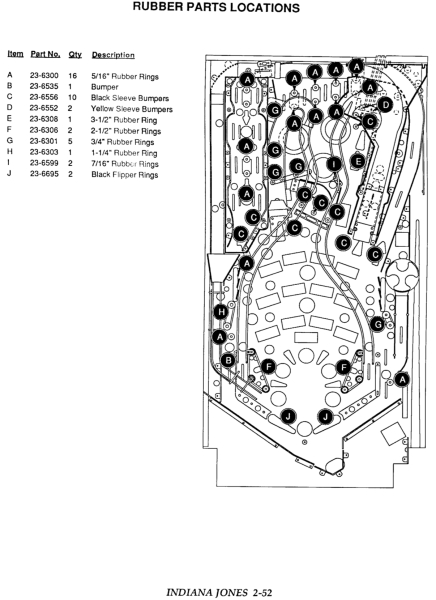

Basic White kit from manual - changed 2 5/16 to 3/16

Submitted by: Anonymous Anonymous
Submitted on: 2015-05-11 12:25:13 2015-05-11 12:25:13
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Black
Qty: 2
Post Sleeves - Standard
Yellow
Qty: 2
Post Sleeves - Standard
Black
Qty: 10
Rubber Rings - 3/8 Inch O.D.
White
Qty: 1
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 3/4 Inch I.D.
White
Qty: 5
Rubber Rings - 7/16 Inch I.D.
White
Qty: 2
Rubber Rings - 5/16 Inch I.D.
White
Qty: 17
Rubber Rings - 3/16 Inch I.D.
White
Qty: 2
(0)

Williams Indiana Jones: The Pinball Adventure kit

Submitted by: Anonymous Anonymous
Submitted on: 2015-11-11 03:55:14 2015-11-11 03:55:14
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Green
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 17
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Translucent
Qty: 1
Post Sleeves - Standard
Green
Qty: 4
Post Sleeves - Standard
Orange
Qty: 6
Post Sleeves - Standard
Yellow
Qty: 2
Rubber Rings - 7/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 1
(0)

Orange rings, color matched sleeves.

Submitted by: Anonymous Anonymous
Submitted on: 2016-05-01 23:58:41 2016-05-01 23:58:41
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Green
Qty: 4
Post Sleeves - Standard
Orange
Qty: 6
Post Sleeves - Standard
Yellow
Qty: 2
Rubber Rings - Flipper Standard
Orange
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Orange
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Orange
Qty: 17
Rubber Rings - 3/4 Inch I.D.
Orange
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Orange
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Orange
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Orange
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Orange
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Orange
Qty: 1
(0)

Just the rings, not the post sleeves or flippers

Submitted by: Anonymous Anonymous
Submitted on: 2017-03-07 03:38:38 2017-03-07 03:38:38
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/16 Inch I.D.
Orange
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Orange
Qty: 17
Rubber Rings - 3/4 Inch I.D.
Orange
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Orange
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Orange
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Orange
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Orange
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Orange
Qty: 1
(0)

Color matched posts with white, orange flippers.

Submitted by: Anonymous Anonymous
Submitted on: 2017-08-30 11:19:14 2017-08-30 11:19:14
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Green
Qty: 4
Post Sleeves - Standard
Orange
Qty: 6
Post Sleeves - Standard
Yellow
Qty: 2
Rubber Rings - Flipper Standard
Orange
Qty: 2
Rubber Rings - 3/16 Inch I.D.
White
Qty: 2
Rubber Rings - 5/16 Inch I.D.
White
Qty: 17
Rubber Rings - 3/4 Inch I.D.
White
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 7/16 Inch I.D.
White
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 1
(0)

Starcher- multi color

Submitted by: Anonymous Anonymous
Submitted on: 2018-11-27 01:23:35 2018-11-27 01:23:35
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Green
Qty: 4
Rubber Rings - Flipper Standard
Orange
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Orange
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Orange
Qty: 17
Rubber Rings - 3/4 Inch I.D.
Orange
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Orange
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Orange
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Orange
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Orange
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Orange
Qty: 1
Post Sleeves - Standard
Orange
Qty: 10
Post Sleeves - Standard
Red
Qty: 10
Post Sleeves - Standard
Yellow
Qty: 10
Rubber Rings - Flipper Standard
Red
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Red
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 17
Rubber Rings - 5/16 Inch I.D.
Yellow
Qty: 17
Rubber Rings - 3/4 Inch I.D.
Yellow
Qty: 5
Rubber Rings - 3/4 Inch I.D.
Red
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
Red
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - Shooter Tip
Yellow
Qty: 2
Rubber Rings - Shooter Tip
Red
Qty: 2
Rubber Rings - Shooter Tip
Orange
Qty: 2
(0)

All black rings with colored sleeves

Submitted by: Anonymous Anonymous
Submitted on: 2019-03-25 21:08:38 2019-03-25 21:08:38
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Green
Qty: 8
Post Sleeves - Standard
Red
Qty: 2
Post Sleeves - Standard
Yellow
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 17
Rubber Rings - 7/16 Inch I.D.
Black
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Black
Qty: 1
Rubber Rings - Flipper Standard
Black
Qty: 2
(0)

Clear, orange flippers and colored sleeves

Submitted by: Anonymous Anonymous
Submitted on: 2019-07-21 21:26:12 2019-07-21 21:26:12
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Green
Qty: 8
Post Sleeves - Standard
Red
Qty: 2
Post Sleeves - Standard
Yellow
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 17
Rubber Rings - 7/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Translucent
Qty: 1
Rubber Rings - Flipper Standard
Orange
Qty: 2
(0)

Colour coded kit. Coded to either the plastic, Star post or playfield. I can only find 4 x 3/4” ID rubbers but the manual clearly states 5 x 3/4” ID 1 extra post sleeve in yellow as the 2 post sleeves next to the captive ball are taller than standard. I’m not convinced that the 3 1/2” ID rubber is correct so I’ve added a 4” ID to the kit as well and I’ve done them both in 2 colours. In reality you only need one of these four rubbers for your kit but it’s your decision to choose what you think will work for you. I’ve added 2 x 5/16” ID in red to the kit as I’m not sure if I want yellow or red on two the star posts. I’ve changed the colour of some of my star posts from yellow to green to match the playfield.

Submitted by: Scott W. Scott W.
Submitted on: 2020-02-12 01:02:22 2020-02-12 01:02:22
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Red
Qty: 3
Post Sleeves - Standard
Glow
Qty: 4
Post Sleeves - Standard
Orange
Qty: 3
Post Sleeves - Standard
Yellow
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Green
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Orange
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Yellow
Qty: 1
Rubber Rings - 3 1/2 Inch I.D.
Green
Qty: 1
Rubber Rings - 4 Inch I.D.
Green
Qty: 1
Rubber Rings - 4 Inch I.D.
Yellow
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Red
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 14
Rubber Rings - 5/16 Inch I.D.
Green
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Green
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Red
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Orange
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Yellow
Qty: 1
(0)

Basic Standard kit from manual

Submitted by: Anonymous Anonymous
Submitted on: 2021-01-29 16:13:59 2021-01-29 16:13:59
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
White
Qty: 16
Rubber Rings - 7/16 Inch O.D.
White
Qty: 1
Post Sleeves - Standard
Black
Qty: 10
Post Sleeves - Standard
Yellow
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 3/4 Inch I.D.
White
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 7/16 Inch I.D.
White
Qty: 2
Rubber Rings - Flipper Standard
Black
Qty: 2
(0)

A - 23-6300 - 14 - 5/16" Ring - Red A - 23-6300 - 2 - 5/16" Ring - Green B - 23-6535 - 1 - Bumper - Red C - 23-6556 - 2 - Sleeve Bumpers - Yellow C - 23-6556 - 4 - Sleeve Bumpers - Green C - 23-6556 - 3 - Sleeve Bumpers - Orange C - 23-6556- 1 - Sleeve Bumper - Red D - 23-6552 - 2 - Sleeve Bumper - Yellow E - 23-6308 - 1 - 3 1/2" - Green F - 23-6306 - 2 - 2 1/2" - Orange G - 23-6301 - 2 - 3/4" - Orange G - 23-6301 - 2 - 3/4" - Green G - 23-6301 - 1 - 3/4" - Red H - 23-6303 - 1 - 1 1/4" - Green I - 23-6599 - 2 - 7/16" - Orange J - 23-6695 - 2 - Flippers - Green Might be missing 1 7/16" Ring - Looking into

Submitted by: Anonymous Anonymous
Submitted on: 2024-04-08 16:41:29 2024-04-08 16:41:29
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Green
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Orange
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 14
Rubber Rings - 5/16 Inch I.D.
Green
Qty: 2
Post Sleeves - Standard
Green
Qty: 4
Post Sleeves - Standard
Yellow
Qty: 4
Post Sleeves - Standard
Orange
Qty: 3
Post Sleeves - Standard
Red
Qty: 1
Rubber Rings - 3 1/2 Inch I.D.
Green
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Green
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Red
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Orange
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Green
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Orange
Qty: 2
(0)

Translucent throughout

Submitted by: Anonymous Anonymous
Submitted on: 2024-06-29 14:16:39 2024-06-29 14:16:39
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Translucent
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 17
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Translucent
Qty: 1
Post Sleeves - Standard
Translucent
Qty: 4
Post Sleeves - Standard
Translucent
Qty: 6
Post Sleeves - Standard
Translucent
Qty: 2
Rubber Rings - 7/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 1
