(0)

Motordome

Submitted by: Anonymous Anonymous

Submitted on: 2017-07-31 19:41:44 2017-07-31 19:41:44

(0)

Motordome all yellow. I ordered an extra 3/16,5/16, and 1 mini flipper

Submitted by: Anonymous Anonymous

Submitted on: 2019-01-27 12:48:25 2019-01-27 12:48:25

(0)

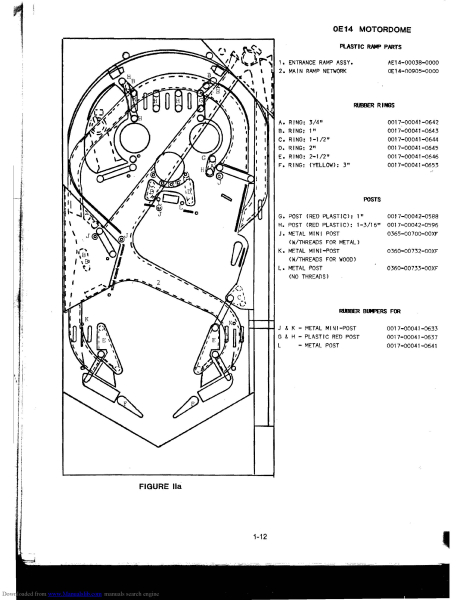

Part numbers and quantities cross-referenced from official manual and physical machine (not all are marked in manual). Manual diagram and part numbers attached. See notes below on flipper rubbers and optional swaps. RINGS A. RING: 3/4" 0017-00041-0642 ___ QTY: 1 B. RING: 1" 0017-00041-0643 ____ QTY: 3-5 **(1 or 2 stacked for mini flipper) C. RING: 1-1/2" 0017-00041-0644 ____ QTY: 1 D. RING: 2" 0017-00041-0645 ____ QTY: 2 E. RING: 2-1/2" 0017-00041-0646 ____ QTY: 2 ** F. RING: (YELLOW) : 3" 0017-00041-0653 ____ QTY: 3 ( **Manual calls for 3" yellow rings for flippers... replaced in pack-list with standard flipper rubbers in translucent pink) RUBBER BUMPERS J & K - for METAL MINI-POST 0017-00041-0633 - 7/16" OD ____ QTY: 10 G & H - for PLASTIC RED POST 0017-00041-0637 5/16" ID ____ QTY: 12 **(Several posts at top of playfield are labeled either for individual 5/16" individually, or share 1" between two). 9 included, get 3 extra if swapping top playfield 1" rings for individual post rings. L - METAL POST 0017-00041-0641 3/16" ID ____ QTY: 10

Submitted by: Brad A. Brad A.

Submitted on: 2024-06-04 14:10:28 2024-06-04 14:10:28
