Mr. & Mrs. Pac-Man Pinball Rubber Kits



Bally Manufacturing Corporation , May, 1982
4 Players

(0)

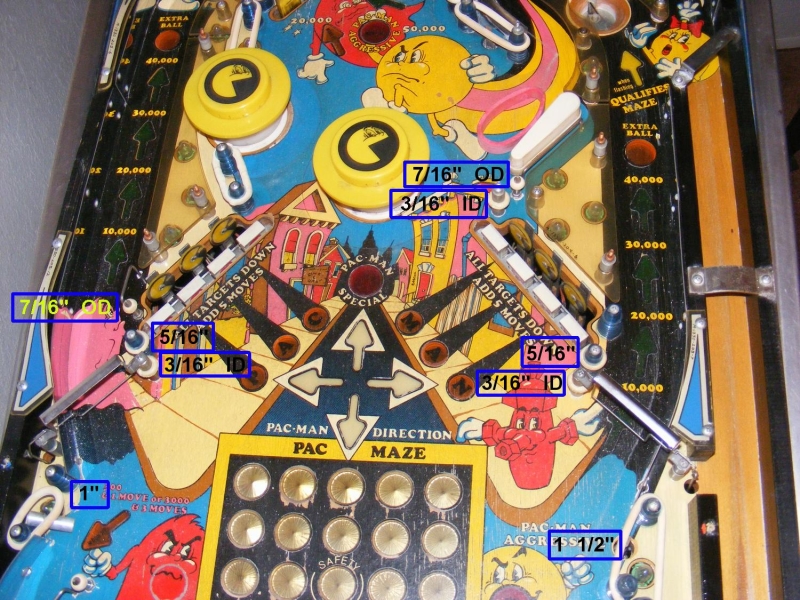

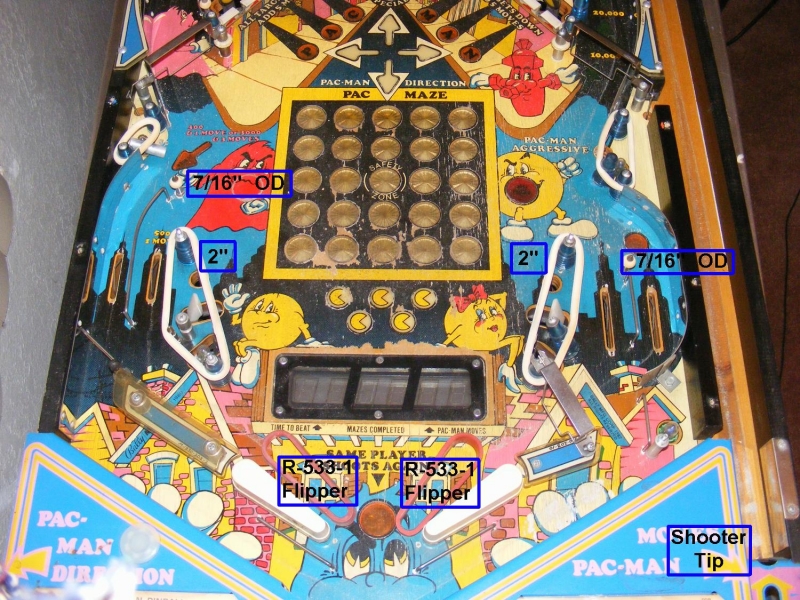

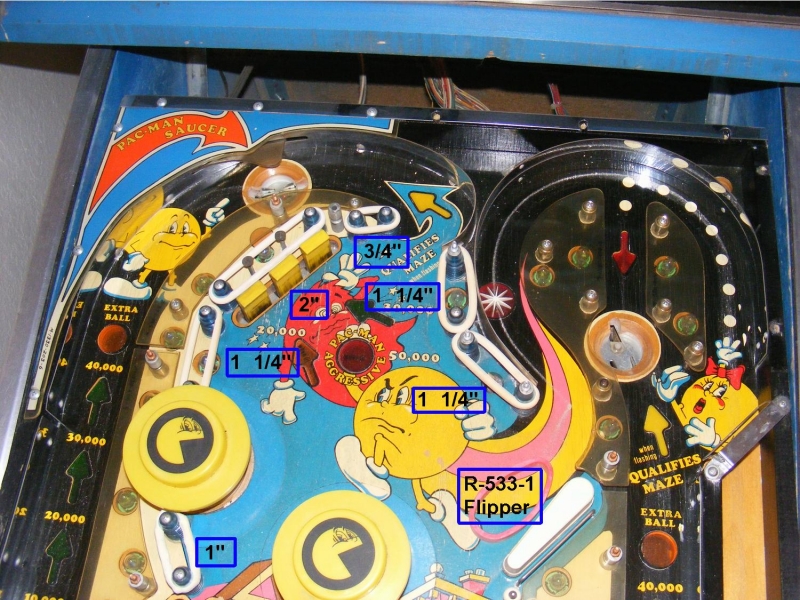

Translucent ring kit w/ yellow flipper rings created from new playfield rings. **Note: Multiple changes from manual. (Click on pics below) 23 total items. Bally # Size Qty - 17-41-641 3/16 ID 3 Manual shows 0, R-243 5/16 ID 2 Manual shows 3, R-414 7/16 OD 4, R-521 3/4" ID 1 Manual shows 4, R-521-1 1" ID 2, XXXXXX 1 1/4" 3 Manual shows 0, R-521-2 1 1/2" 1 Manual shows 2, R-521-3 2" 3, R-533-1 Flipper 3, R-108-3 Shooter Tip 1, Total qty 23 Manual shows 20

Submitted by: Alan N. Alan N.
Submitted on: 2015-08-21 09:42:59 2015-08-21 09:42:59
View Full Kit

Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 4
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 3
Rubber Rings - Flipper Standard
Yellow
Qty: 3
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 3
Rubber Rings - Shooter Tip
Yellow
Qty: 1
(0)

Blue ring kit w/ yellow flipper rings created from new playfield rings. **Note: Multiple changes from manual. (Click on pics below) 23 total items. Bally # Size Qty - 17-41-641 3/16 ID 3 Manual shows 0, R-243 5/16 ID 2 Manual shows 3, R-414 7/16 OD 4, R-521 3/4" ID 1 Manual shows 4, R-521-1 1" ID 2, XXXXXX 1 1/4" 3 Manual shows 0, R-521-2 1 1/2" 1 Manual shows 2, R-521-3 2" 3, R-533-1 Flipper 3, R-108-3 Shooter Tip 1, Total qty 23 Manual shows 20

Submitted by: Alan N. Alan N.
Submitted on: 2015-08-21 10:21:33 2015-08-21 10:21:33
View Full Kit

Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 4
Rubber Rings - 3/4 Inch I.D.
Blue
Qty: 1
Rubber Rings - 1 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Blue
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Blue
Qty: 1
Rubber Rings - 2 Inch I.D.
Blue
Qty: 3
Rubber Rings - Flipper Standard
Yellow
Qty: 3
Rubber Rings - 3/16 Inch I.D.
Blue
Qty: 3
Rubber Rings - Shooter Tip
Blue
Qty: 1
(0)

White ring kit w/ yellow flipper rings created from new playfield rings. **Note: Multiple changes from manual. (Click on pics below) 23 total items. Bally # Size Qty - 17-41-641 3/16 ID 3 Manual shows 0, R-243 5/16 ID 2 Manual shows 3, R-414 7/16 OD 4, R-521 3/4" ID 1 Manual shows 4, R-521-1 1" ID 2, XXXXXX 1 1/4" 3 Manual shows 0, R-521-2 1 1/2" 1 Manual shows 2, R-521-3 2" 3, R-533-1 Flipper 3, R-108-3 Shooter Tip 1, Total qty 23 Manual shows 20

Submitted by: Alan N. Alan N.
Submitted on: 2015-08-21 10:27:46 2015-08-21 10:27:46
View Full Kit

Rubber Rings - 5/16 Inch I.D.
White
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 4
Rubber Rings - 3/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 2 Inch I.D.
White
Qty: 3
Rubber Rings - Flipper Standard
Yellow
Qty: 3
Rubber Rings - 3/16 Inch I.D.
White
Qty: 3
Rubber Rings - Shooter Tip
White
Qty: 1
(0)

All pink kit with yellow bats

Submitted by: Anonymous Anonymous
Submitted on: 2017-04-02 11:26:16 2017-04-02 11:26:16
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Shooter Tip
Pink
Qty: 1
Rubber Rings - 3/16 Inch I.D.
Pink
Qty: 3
Rubber Rings - 2 Inch I.D.
Pink
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Pink
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Pink
Qty: 3
Rubber Rings - 1 Inch I.D.
Pink
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Pink
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Pink
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Pink
Qty: 2
Rubber Rings - Flipper Standard
Yellow
Qty: 3
(0)

All pink kit looks very nice on this playfield.

Submitted by: Anonymous Anonymous
Submitted on: 2023-10-06 22:43:39 2023-10-06 22:43:39
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Shooter Tip
Pink
Qty: 1
Rubber Rings - 3/16 Inch I.D.
Pink
Qty: 3
Rubber Rings - 2 Inch I.D.
Pink
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Pink
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Pink
Qty: 3
Rubber Rings - 1 Inch I.D.
Pink
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Pink
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Pink
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Pink
Qty: 2
Rubber Rings - Flipper Standard
Pink
Qty: 3
(0)

Followed the previous purchaser, who included the extra notes of sizing. I think they missed a 5/16 ring for a post on the right lane. I always +1 all the smaller sizes, as I have found that there can be some missing, or missed off. For example, I have added an extra 1.5" black ring, as this was missing from my last order for Road kings. Delete this, before ordering or you'll be .."WTF is this."

Submitted by: Anonymous Anonymous
Submitted on: 2024-08-21 18:59:04 2024-08-21 18:59:04
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 4
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 3
Rubber Rings - Flipper Standard
Translucent Blue
Qty: 3
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 3
Rubber Rings - Shooter Tip
Translucent Blue
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Black
Qty: 1
(0)

Mr & Mrs Pac-Man - ordered all rubbers + 1 for replacement if needed. T. pink bats and smaller rubbers, Yellow 3rd bat & post caps, T. blue rubbers 1 inch and above. will post pictures once finished

Submitted by: Anonymous Anonymous
Submitted on: 2024-10-07 20:56:57 2024-10-07 20:56:57
View Full Kit

This kit doesn't have any photos.
Misc - Post Cap
Yellow
Qty: 25
Rubber Rings - 2 Inch I.D.
Translucent Blue
Qty: 4
Rubber Rings - 1 1/2 Inch I.D.
Translucent Blue
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Translucent Blue
Qty: 4
Rubber Rings - 1 Inch I.D.
Translucent Blue
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Translucent Pink
Qty: 5
Rubber Rings - 7/16 Inch O.D.
Translucent Pink
Qty: 7
Rubber Rings - 3/4 Inch I.D.
Translucent Pink
Qty: 2
Rubber Rings - Flipper Standard
Translucent Pink
Qty: 3
Rubber Rings - Flipper Standard
Yellow
Qty: 2
Rubber Rings - Shooter Tip
Translucent Blue
Qty: 1
