(0)

Manual accurate

Submitted by: Anonymous Anonymous

Submitted on: 2020-03-26 19:47:32 2020-03-26 19:47:32

(2)

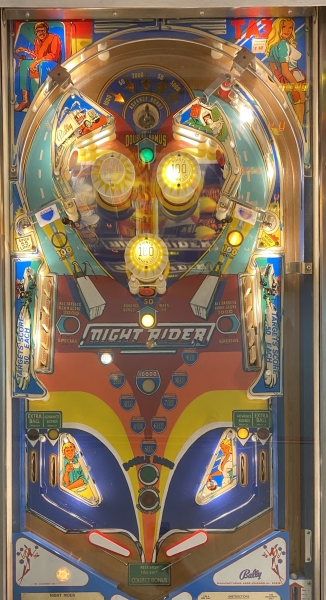

Clean white rubbers make the primary colors on this playfield pop. The bright red flipper rings will have you ready to haul freight.

Submitted by: David D. David D.

Submitted on: 2020-06-05 12:06:43 2020-06-05 12:06:43

(0)

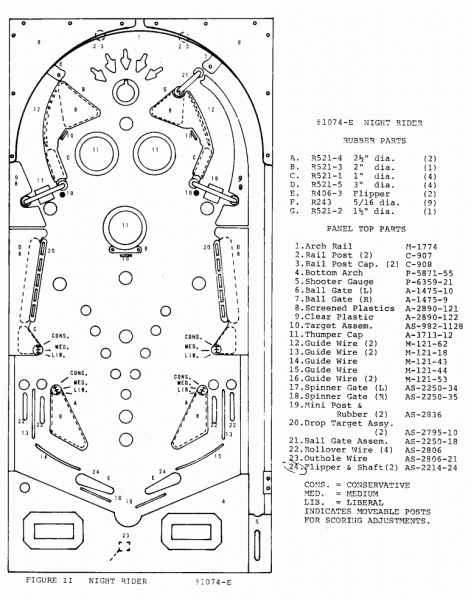

[Tested and complete] Includes the often forgotten tee post rubbers! Using my test kit for checking tension I've made 2 changes from the manual, the 1-1/2" is switched to 1-3/4", and the 1" is switched to 1-1/4". Add 19 post caps to replace the original plastic nuts that secure the plastics. Written guide to installation: Starting from the top of the playfield, (1) 5/16" red on shooter lane gate post (should be a red post), (1) 2" orange left of saucer, (1) 1-3/4" orange right of saucer, (2) 5/16" yellow on upper side of upper stand up targets, (2) 5/16" light blue on lower side of upper stand up targets, (2) 1-1/4" light blue left and right of pops, (2) tee post light blue at orbit entrances, (2) 5/16" red around center stand up, (2) 5/16" orange above drop target banks, (4) 3" orange doubled up behind drop targets, (2) 1" yellow above outlanes, (2) 2-1/2" light blue on the slings, and I bet you can figure out where the flipper and shooter rubbers go ;)

Submitted by: Anonymous Anonymous

Submitted on: 2021-05-15 11:48:29 2021-05-15 11:48:29
