Sorcerer Rubber Kits



Williams Electronics, Incorporated , March, 1985
4 Players

(0)

Standard white set with yellow post sleeves and red flipper rings

Submitted by: Cole W. Cole W.
Submitted on: 2015-10-08 21:30:49 2015-10-08 21:30:49
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 7/16 Inch O.D.
White
Qty: 5
Rubber Rings - 5/16 Inch I.D.
White
Qty: 13
Rubber Rings - 3/4 Inch I.D.
White
Qty: 4
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 1
Post Sleeves - Standard
Yellow
Qty: 4
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - Shooter Tip
White
Qty: 1
(0)

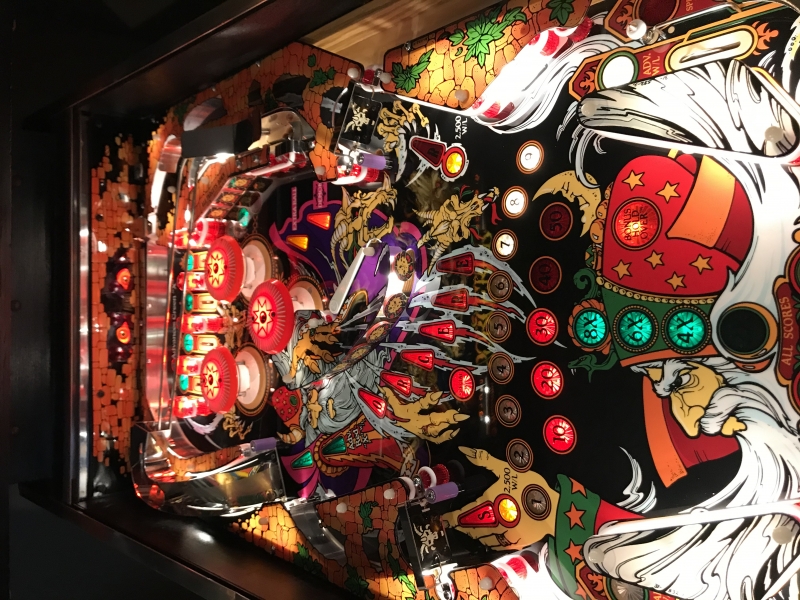

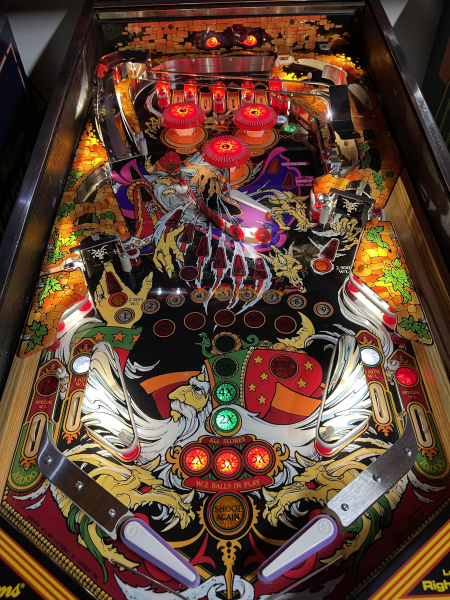

Playfield Rings: White Flipper Rings: Black Post Sleeves: Black Counts confirmed w/ Williams Blue Manual (see attached pics)

Submitted by: Anonymous Anonymous
Submitted on: 2015-11-04 12:14:12 2015-11-04 12:14:12
View Full Kit

Rubber Rings - 5/16 Inch I.D.
White
Qty: 13
Rubber Rings - 3/4 Inch I.D.
White
Qty: 4
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - Flipper Standard
Black
Qty: 3
Post Sleeves - Standard
Black
Qty: 4
Rubber Rings - 7/16 Inch O.D.
White
Qty: 5
Rubber Rings - Shooter Tip
White
Qty: 1
(0)

White rubbers with pink flippers, which look great on the new CPR playfields.

Submitted by: David H. David H.
Submitted on: 2019-07-08 20:59:02 2019-07-08 20:59:02
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
White
Qty: 14
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - Flipper Standard
Pink
Qty: 3
Rubber Rings - 7/16 Inch O.D.
White
Qty: 5
Post Sleeves - Standard
Yellow
Qty: 4
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - 3/4 Inch I.D.
White
Qty: 3
(0)

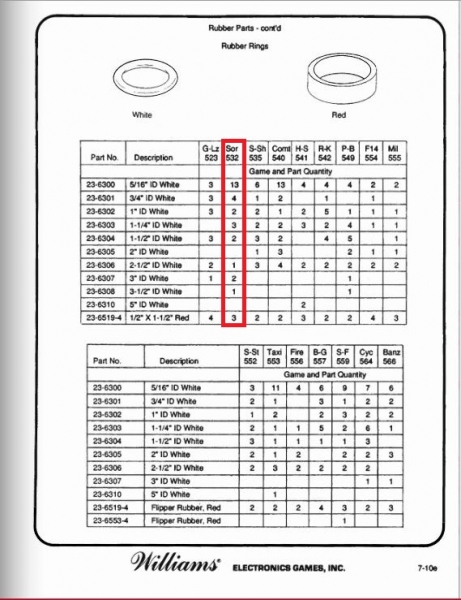

Purple Rubber Ring Kit (based off the blue parts book).

Submitted by: Anonymous Anonymous
Submitted on: 2019-11-30 18:31:14 2019-11-30 18:31:14
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Purple
Qty: 13
Rubber Rings - 3/4 Inch I.D.
Purple
Qty: 4
Rubber Rings - 1 Inch I.D.
Purple
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Purple
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Purple
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Purple
Qty: 1
Rubber Rings - 3 Inch I.D.
Purple
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Purple
Qty: 1
Rubber Rings - Flipper Standard
Purple
Qty: 3
Post Sleeves - Standard
Purple
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Purple
Qty: 5
Rubber Rings - Shooter Tip
Purple
Qty: 1
(0)

Purple Rubber Ring Kit (based on blue parts book), except yellow flipper rubbers.

Submitted by: Anonymous Anonymous
Submitted on: 2019-11-30 18:33:47 2019-11-30 18:33:47
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Purple
Qty: 13
Rubber Rings - 3/4 Inch I.D.
Purple
Qty: 4
Rubber Rings - 1 Inch I.D.
Purple
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Purple
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Purple
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Purple
Qty: 1
Rubber Rings - 3 Inch I.D.
Purple
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Purple
Qty: 1
Post Sleeves - Standard
Purple
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Purple
Qty: 5
Rubber Rings - Shooter Tip
Purple
Qty: 1
Rubber Rings - Flipper Standard
Yellow
Qty: 3
(0)

Purple Rubber Ring Kit (based on blue parts book), except yellow flipper rubbers and shooter tip.

Submitted by: Anonymous Anonymous
Submitted on: 2019-11-30 18:34:30 2019-11-30 18:34:30
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Purple
Qty: 13
Rubber Rings - 3/4 Inch I.D.
Purple
Qty: 4
Rubber Rings - 1 Inch I.D.
Purple
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Purple
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Purple
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Purple
Qty: 1
Rubber Rings - 3 Inch I.D.
Purple
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Purple
Qty: 1
Post Sleeves - Standard
Purple
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Purple
Qty: 5
Rubber Rings - Flipper Standard
Yellow
Qty: 3
Rubber Rings - Shooter Tip
Yellow
Qty: 1
(0)

Red Rubber Ring Kit (based off the blue parts book).

Submitted by: Anonymous Anonymous
Submitted on: 2019-11-30 21:57:05 2019-11-30 21:57:05
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 13
Rubber Rings - 3/4 Inch I.D.
Red
Qty: 4
Rubber Rings - 1 Inch I.D.
Red
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Red
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Red
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Red
Qty: 1
Rubber Rings - 3 Inch I.D.
Red
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Red
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 3
Post Sleeves - Standard
Red
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Red
Qty: 5
Rubber Rings - Shooter Tip
Red
Qty: 1
(0)

Red Rubber Ring Kit (based off the blue parts book). Also includes color matched post caps and post sleeves.

Submitted by: Anonymous Anonymous
Submitted on: 2019-11-30 22:08:51 2019-11-30 22:08:51
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 13
Rubber Rings - 3/4 Inch I.D.
Red
Qty: 4
Rubber Rings - 1 Inch I.D.
Red
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Red
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Red
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Red
Qty: 1
Rubber Rings - 3 Inch I.D.
Red
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Red
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 3
Post Sleeves - Standard
Red
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Red
Qty: 5
Rubber Rings - Shooter Tip
Red
Qty: 1
Post Sleeves - Standard
Black
Qty: 3
Post Sleeves - Standard
Purple
Qty: 1
Misc - Post Cap
Black
Qty: 2
Misc - Post Cap
Orange
Qty: 13
Misc - Post Cap
Purple
Qty: 1
Misc - Post Cap
Translucent
Qty: 6
(0)

Black rings and sleeves, purple flippers rings

Submitted by: Anonymous Anonymous
Submitted on: 2019-11-30 23:24:00 2019-11-30 23:24:00
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Black
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 13
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 4
Rubber Rings - 1 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 1
Rubber Rings - 3 Inch I.D.
Black
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Black
Qty: 1
Rubber Rings - Flipper Standard
Purple
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 5
Rubber Rings - Shooter Tip
Black
Qty: 1
(0)

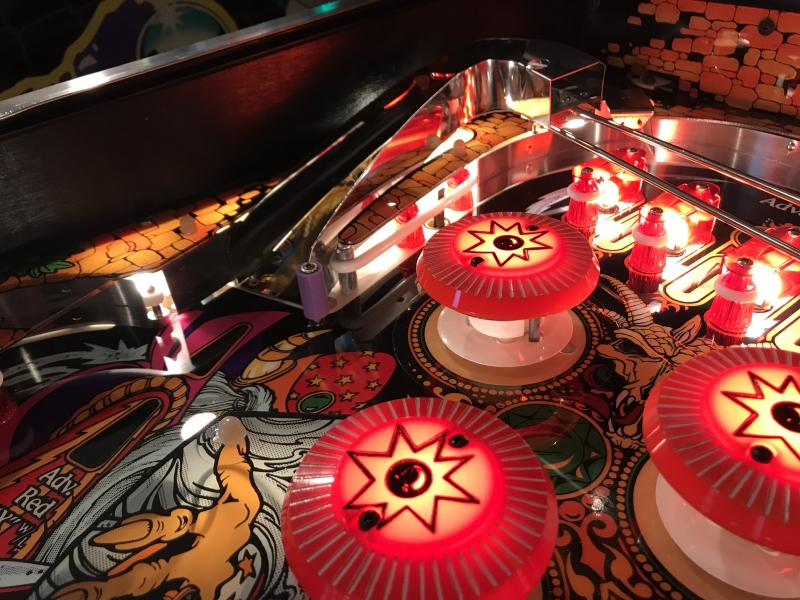

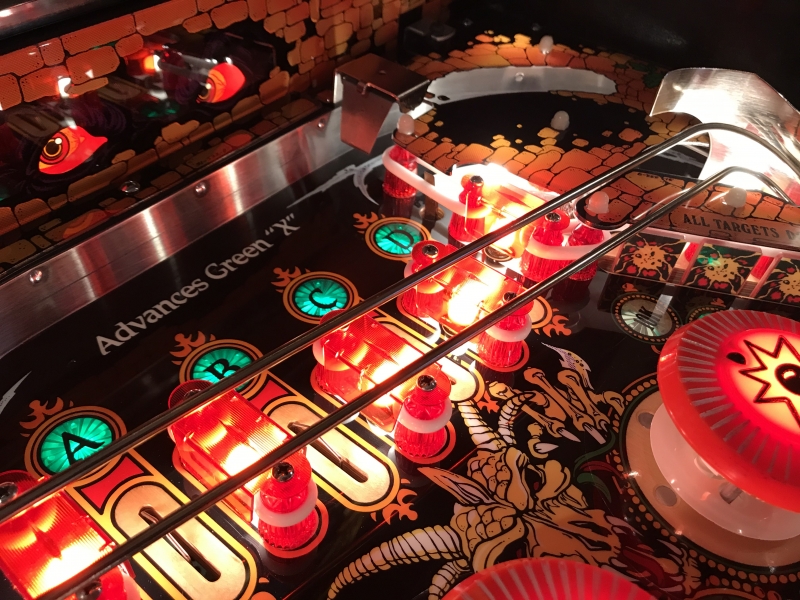

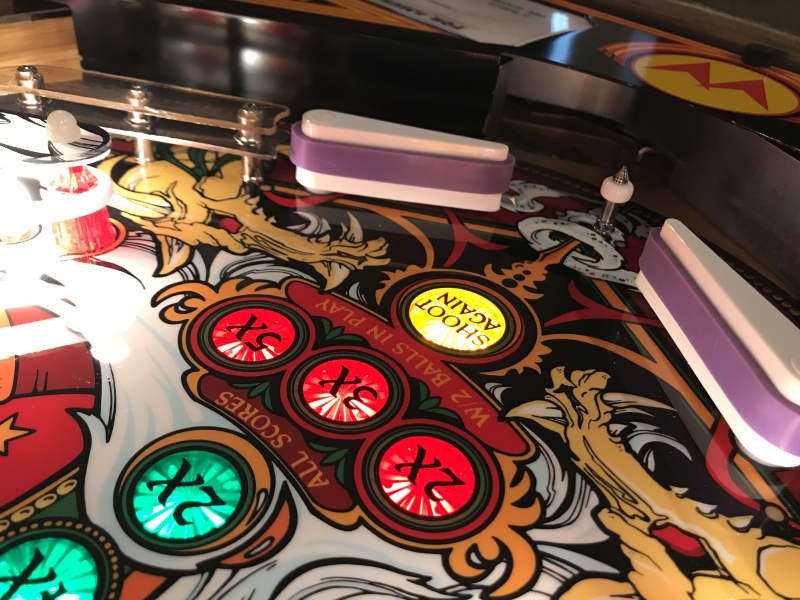

White Rings / Purple Flippers and Posts. (See Comments for more information)

Submitted by: Jeff C. Jeff C.
Submitted on: 2020-03-20 06:59:42 2020-03-20 06:59:42
View Full Kit

Rubber Rings - 7/16 Inch O.D.
White
Qty: 5
Rubber Rings - 5/16 Inch I.D.
White
Qty: 13
Rubber Rings - 3/4 Inch I.D.
White
Qty: 4
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 1
Post Sleeves - Standard
Purple
Qty: 4
Rubber Rings - Flipper Standard
Purple
Qty: 3
Rubber Rings - Shooter Tip
Purple
Qty: 1
(0)

Mostly Orange Rubbers, Clear/Purple for Slings and center sorcerer. Upper Flipper Purple, lowers red. Includes color matched post caps.

Submitted by: Gary T. Gary T.
Submitted on: 2020-11-27 17:21:13 2020-11-27 17:21:13
View Full Kit

This kit doesn't have any photos.
Misc - Post Cap
Black
Qty: 2
Misc - Post Cap
Orange
Qty: 13
Misc - Post Cap
Purple
Qty: 1
Misc - Post Cap
Translucent
Qty: 6
Post Sleeves - Standard
Orange
Qty: 4
Post Sleeves - Standard
Purple
Qty: 1
Rubber Rings - 3 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Purple
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Orange
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Orange
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 3
Rubber Rings - Flipper Standard
Red
Qty: 2
Rubber Rings - Flipper Standard
Purple
Qty: 1
Rubber Rings - 1 Inch I.D.
Orange
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Orange
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Orange
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Orange
Qty: 1
Rubber Rings - 3 1/2 Inch I.D.
Orange
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Orange
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 10
(0)

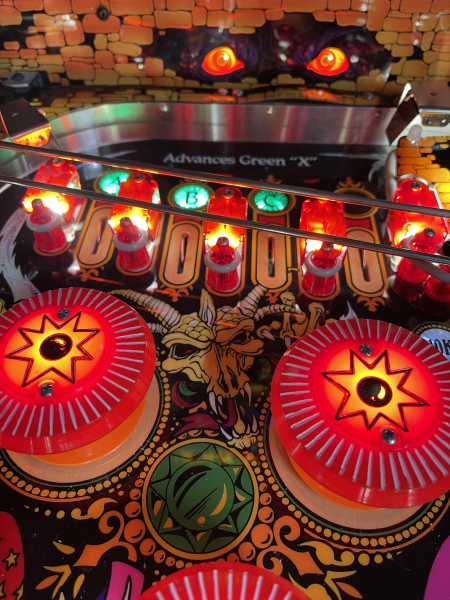

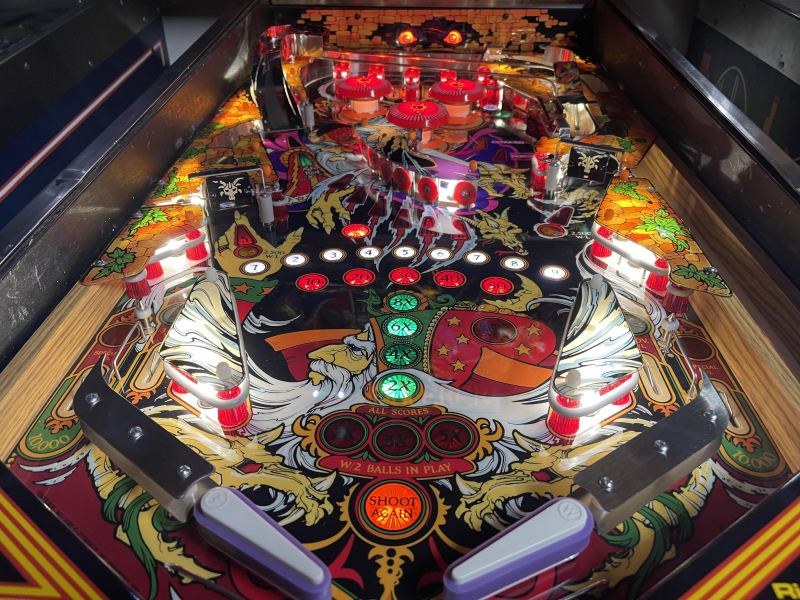

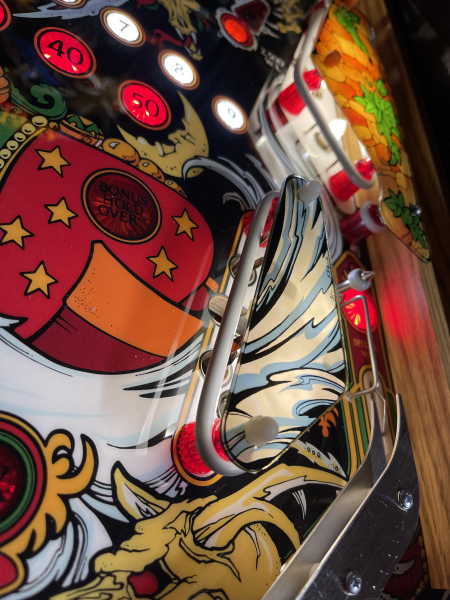

Sorcerer kit with grey rubbers, purple flippers, orange and grey post caps. Looks great! My photos show some white plastic screw on post caps. I've updated this kit to include all necessary Titan caps so no white plastic would be used.

Submitted by: Tim W. Tim W.
Submitted on: 2022-08-30 16:49:59 2022-08-30 16:49:59
View Full Kit

Rubber Rings - 7/16 Inch O.D.
Grey
Qty: 5
Rubber Rings - 5/16 Inch I.D.
Grey
Qty: 13
Rubber Rings - 3/4 Inch I.D.
Grey
Qty: 4
Rubber Rings - 1 Inch I.D.
Grey
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Grey
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Grey
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Grey
Qty: 1
Rubber Rings - 3 Inch I.D.
Grey
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Grey
Qty: 1
Post Sleeves - Standard
Grey
Qty: 4
Rubber Rings - Flipper Standard
Purple
Qty: 3
Rubber Rings - Shooter Tip
Purple
Qty: 1
Misc - Post Cap
Orange
Qty: 19
Misc - Post Cap
Grey
Qty: 4
(0)

Just purple flippers

Submitted by: Anonymous Anonymous
Submitted on: 2023-05-08 13:03:21 2023-05-08 13:03:21
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Low Bounce Standard Flipper
Purple
Qty: 3
(0)

Grey rubbers and purple flipper theme with 2 extra red flipper bands.

Submitted by: Anonymous Anonymous
Submitted on: 2023-11-27 18:24:08 2023-11-27 18:24:08
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 7/16 Inch O.D.
Grey
Qty: 5
Rubber Rings - 5/16 Inch I.D.
Grey
Qty: 13
Rubber Rings - 3/4 Inch I.D.
Grey
Qty: 4
Rubber Rings - 1 Inch I.D.
Grey
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Grey
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Grey
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Grey
Qty: 1
Rubber Rings - 3 Inch I.D.
Grey
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Grey
Qty: 1
Post Sleeves - Standard
Grey
Qty: 4
Rubber Rings - Flipper Standard
Purple
Qty: 3
Rubber Rings - Shooter Tip
Grey
Qty: 1
Misc - Post Cap
Orange
Qty: 19
Misc - Post Cap
Grey
Qty: 4
Rubber Rings - Flipper Standard
Red
Qty: 2

Powered By Awesome Pinball Players Like You!
Made with love by 86Pixels
Titan Pinball © 2024
