Twilight Zone Rubber Kits



Midway Manufacturing Company, a subsidiary of WMS Industries, Incorporated , April 05, 1993
4 Players , 6 Balls

(0)

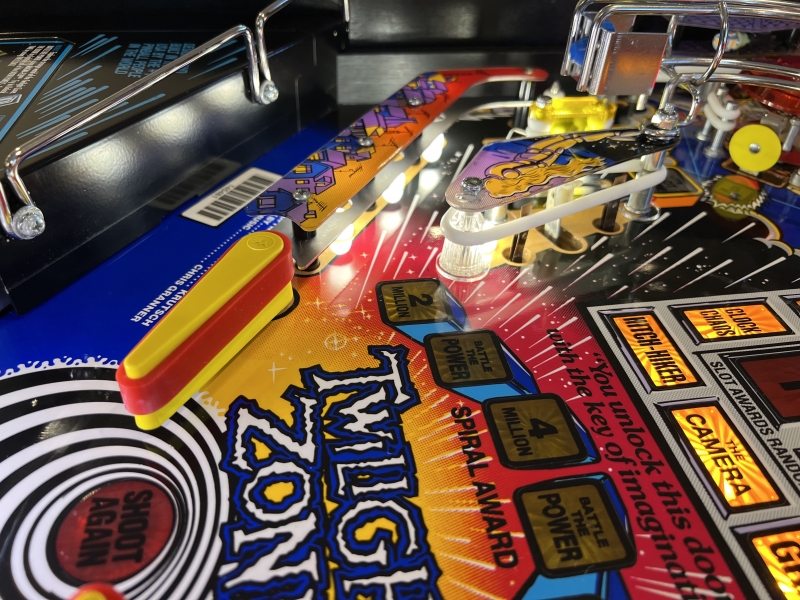

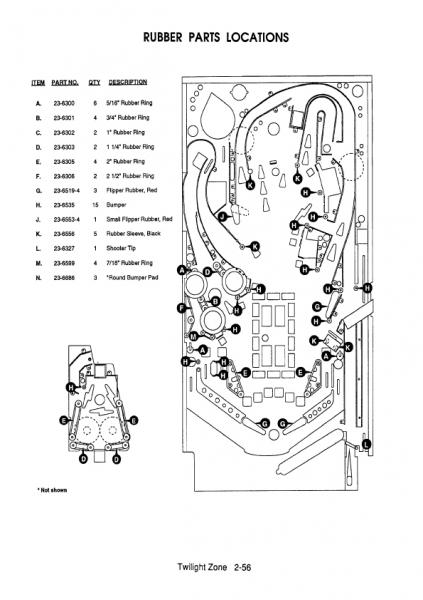

Basic White kit from manual - changed a 1 1/4 to a 1 inch behind pop bumbers

Submitted by: Anonymous Anonymous
Submitted on: 2015-05-07 15:41:56 2015-05-07 15:41:56
View Full Kit

Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - Flipper Mini
Red
Qty: 1
Rubber Rings - 5/16 Inch I.D.
White
Qty: 6
Rubber Rings - 3/4 Inch I.D.
White
Qty: 4
Rubber Rings - 1 Inch I.D.
White
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 2 Inch I.D.
White
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 15
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - 7/16 Inch I.D.
White
Qty: 4
Post Sleeves - Standard
Black
Qty: 5
(0)

Barry R

Submitted by: Anonymous Anonymous
Submitted on: 2015-10-24 21:32:16 2015-10-24 21:32:16
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - Flipper Mini
Red
Qty: 1
Rubber Rings - 5/16 Inch I.D.
White
Qty: 6
Rubber Rings - 3/4 Inch I.D.
White
Qty: 4
Rubber Rings - 1 Inch I.D.
White
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 2 Inch I.D.
White
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 15
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - 7/16 Inch I.D.
White
Qty: 4
Misc - Post Cap
Yellow
Qty: 5
(0)

Some blue accents. Blue flipper rubbers, post sleeves.

Submitted by: Greg T. Greg T.
Submitted on: 2015-11-18 13:47:25 2015-11-18 13:47:25
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
White
Qty: 6
Rubber Rings - 3/4 Inch I.D.
White
Qty: 4
Rubber Rings - 1 Inch I.D.
White
Qty: 3
Rubber Rings - 2 Inch I.D.
White
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 15
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - 7/16 Inch I.D.
White
Qty: 4
Rubber Rings - Flipper Standard
Blue
Qty: 3
Rubber Rings - Flipper Mini
Blue
Qty: 1
Post Sleeves - Standard
Blue
Qty: 6
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
(0)

Mini PF kit only. I usually add one extra to my counts just in case.

Submitted by: Greg T. Greg T.
Submitted on: 2016-01-25 06:16:32 2016-01-25 06:16:32
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 7/16 Inch O.D.
White
Qty: 3
Rubber Rings - 2 Inch I.D.
White
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 3
(1)

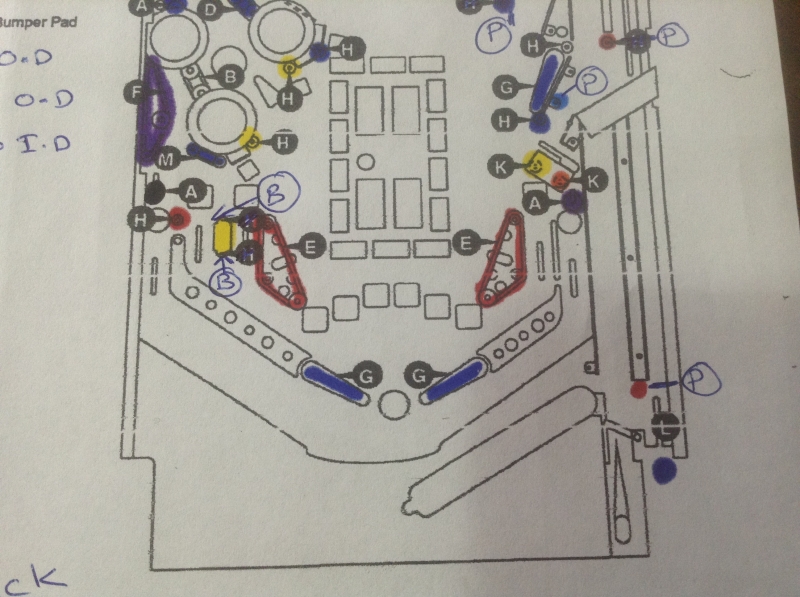

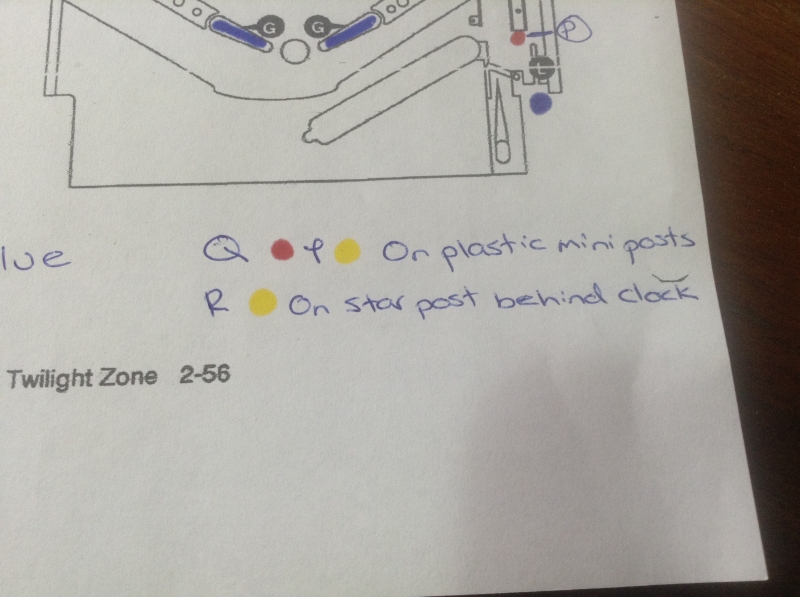

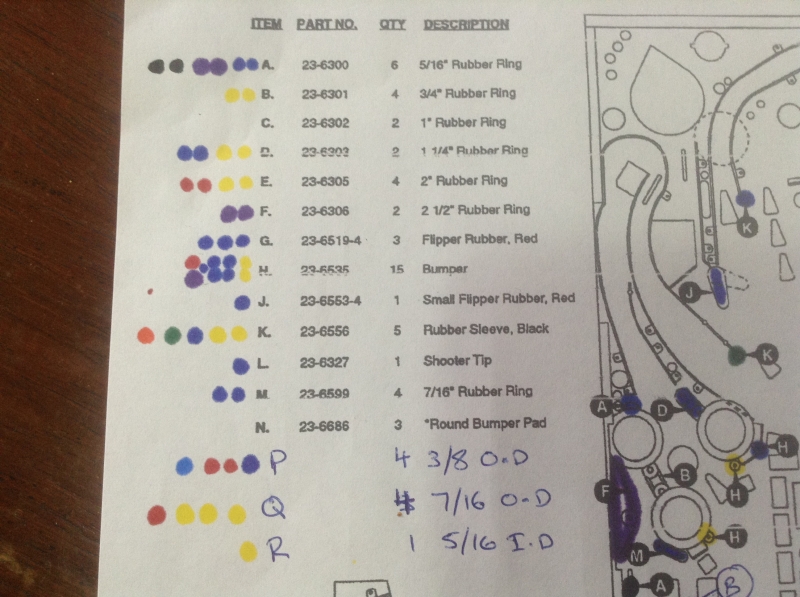

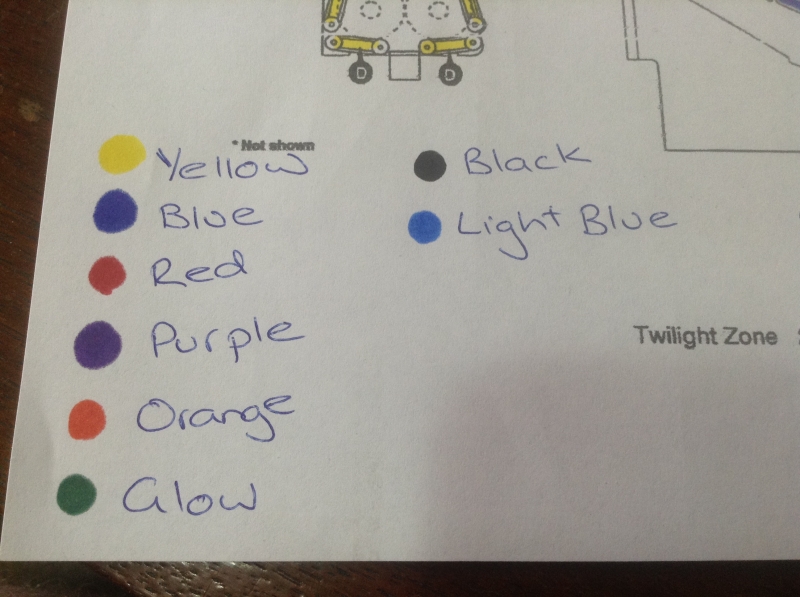

This is my custom list of coloured rubber kit for Twilight Zone. I have allowed for an extra post ( 3/8" OD light blue ) which I installed behind the top right flipper as this ensures the ball goes into the rocket launcher every single time if you get the skill shot. You may also want to purchase coloured star posts and narrow lane guide posts to match your new rubbers, they look so much better than standard clear posts.

Submitted by: Scott W. Scott W.
Submitted on: 2016-05-16 00:08:36 2016-05-16 00:08:36
View Full Kit

Rubber Rings - 5/16 Inch I.D.
Black
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Purple
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Blue
Qty: 2
Rubber Rings - 2 Inch I.D.
Red
Qty: 2
Rubber Rings - 2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Purple
Qty: 2
Rubber Rings - Flipper Standard
Blue
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Yellow
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Purple
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Red
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Red
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Lt. Blue
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 1
Rubber Rings - Flipper Mini
Blue
Qty: 1
Post Sleeves - Standard
Blue
Qty: 1
Post Sleeves - Standard
Yellow
Qty: 2
Post Sleeves - Standard
Red
Qty: 1
Post Sleeves - Standard
Glow
Qty: 1
Rubber Rings - Shooter Tip
Blue
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Blue
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Yellow
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Red
Qty: 1
Verified
(0)

Translucent kit with red thin flipper

Submitted by: Titan . Titan .
Submitted on: 2016-08-30 18:01:51 2016-08-30 18:01:51
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Low Bounce Standard Flipper
Red
Qty: 3
Rubber Rings - Flipper Mini
Red
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 15
Rubber Rings - Shooter Tip
Translucent
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Translucent
Qty: 4
Post Sleeves - Standard
Translucent
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
(5)

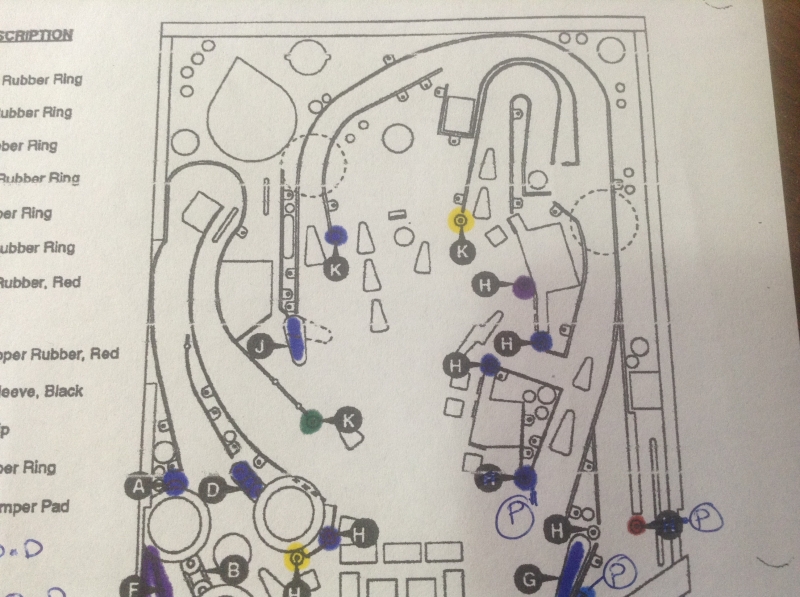

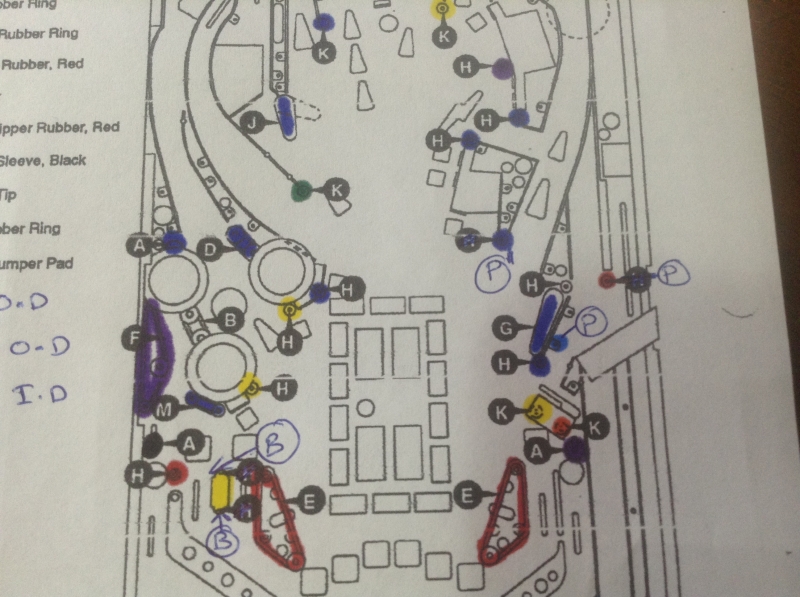

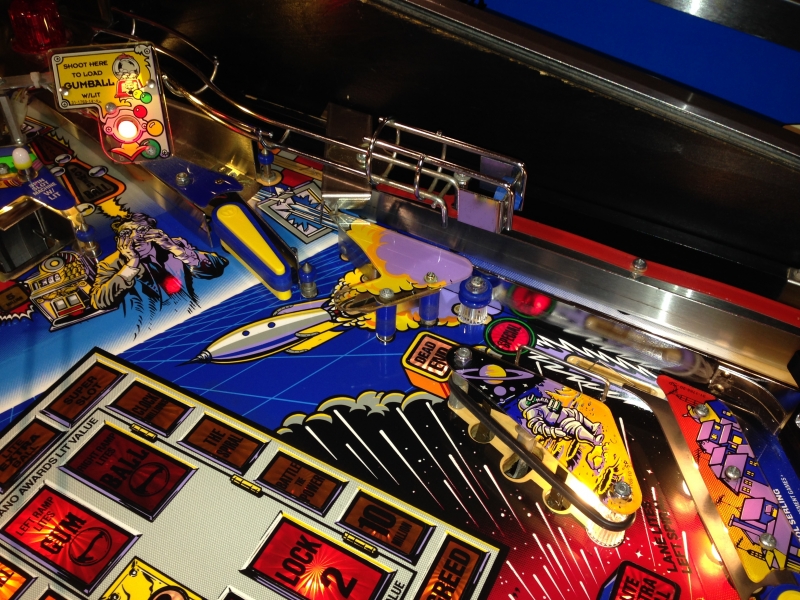

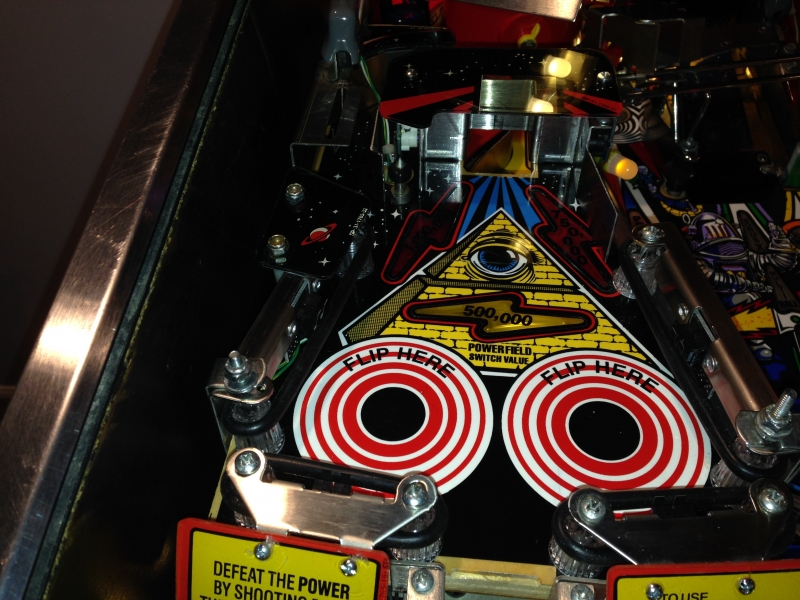

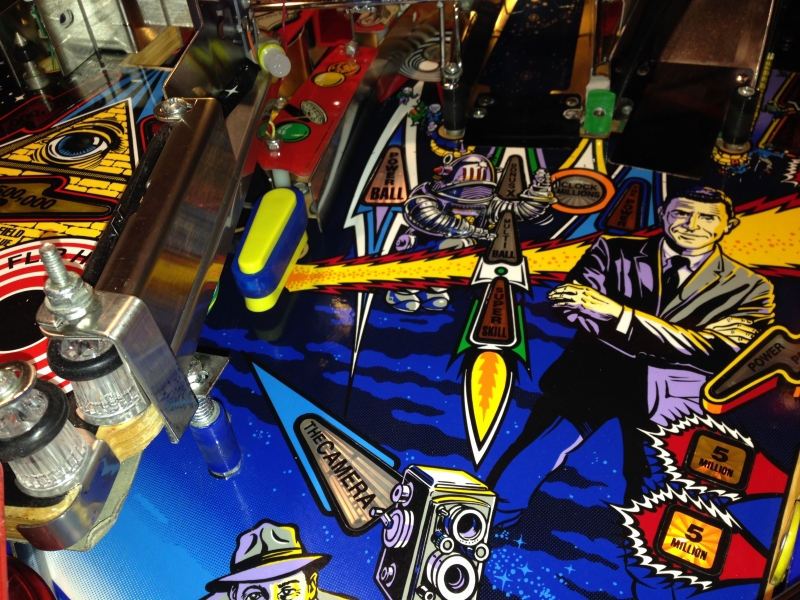

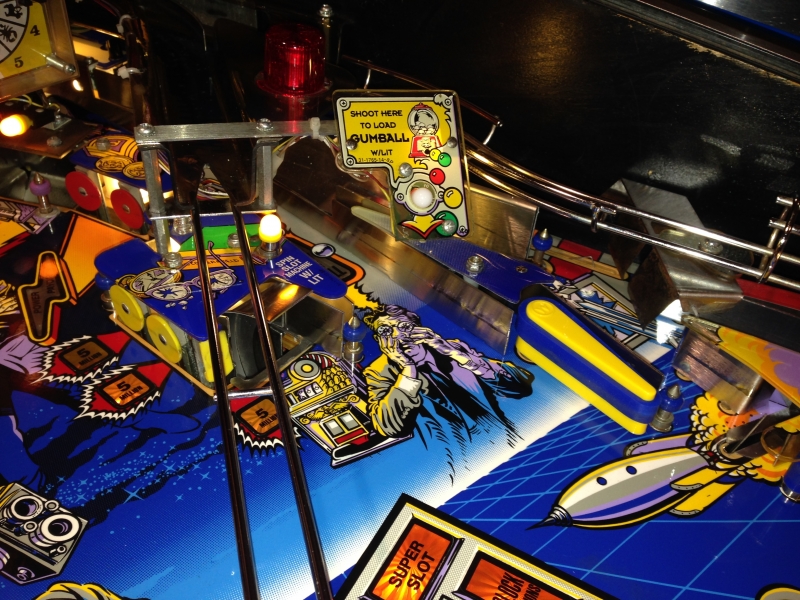

Mostly blue on lower playfield, with black sleeves and rubber where it matches the playfield. Purple 2 1/2 on lower left of playfield. Black on upper playfield. Please note that the manual is not accurate on a number of items. Rings behind the pops labeled "D" should be 1", not 1.25". Manual lists 4 7/16" I.D. rings, but you only need 2. Manual lists 15 bumpers (7/16 OD), but if you want one near the shooter lane, you need 16 total. Also, my machine doesn't have the extra set of posts/rubbers between the left 2 pops (labeled "B" in the manual). If you have those in your machine, you'll need to add 2 3/4" blue rubbers to your order. Again, the manual is wrong here, listing 4 needed, but you need 0-2 depending on your machine. One other note, in the pictures, the 7/16" OD rubber near the left outlane is blue. It should be black, and is black in the kit. Thanks!

Submitted by: Nick S. Nick S.
Submitted on: 2016-10-07 16:54:54 2016-10-07 16:54:54
View Full Kit

Rubber Rings - Flipper Standard
Blue
Qty: 3
Rubber Rings - Flipper Mini
Blue
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 2 Inch I.D.
Black
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
Purple
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 9
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Purple
Qty: 1
Post Sleeves - Standard
Blue
Qty: 3
Post Sleeves - Standard
Black
Qty: 2
Rubber Rings - Shooter Tip
Black
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Blue
Qty: 2
(0)

Same as the other kit but no purple 2.5 bands

Submitted by: Anonymous Anonymous
Submitted on: 2016-11-11 14:20:39 2016-11-11 14:20:39
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Blue
Qty: 3
Rubber Rings - Flipper Mini
Blue
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Blue
Qty: 4
Rubber Rings - 1 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 14
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 1
Rubber Rings - Shooter Tip
Blue
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 2
Rubber Rings - 2 Inch I.D.
Black
Qty: 4
Post Sleeves - Standard
Blue
Qty: 3
Post Sleeves - Standard
Black
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
(0)

Uses Yellow post sleeves instead of black

Submitted by: Anonymous Anonymous
Submitted on: 2017-01-30 19:02:22 2017-01-30 19:02:22
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - Flipper Mini
Red
Qty: 1
Rubber Rings - 5/16 Inch I.D.
White
Qty: 6
Rubber Rings - 3/4 Inch I.D.
White
Qty: 4
Rubber Rings - 1 Inch I.D.
White
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 2 Inch I.D.
White
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 15
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - 7/16 Inch I.D.
White
Qty: 4
Post Sleeves - Standard
Yellow
Qty: 5
(0)

All white rubber, uses blue post sleeves instead of black

Submitted by: Anonymous Anonymous
Submitted on: 2017-02-03 20:00:03 2017-02-03 20:00:03
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - Flipper Mini
Red
Qty: 1
Rubber Rings - 5/16 Inch I.D.
White
Qty: 6
Rubber Rings - 3/4 Inch I.D.
White
Qty: 4
Rubber Rings - 2 Inch I.D.
White
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 15
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - 7/16 Inch I.D.
White
Qty: 4
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Post Sleeves - Standard
Blue
Qty: 5
(0)

Standard White and Black without Flipper Rubbers

Submitted by: Anonymous Anonymous
Submitted on: 2018-01-05 09:01:54 2018-01-05 09:01:54
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
White
Qty: 6
Rubber Rings - 3/4 Inch I.D.
White
Qty: 4
Rubber Rings - 1 Inch I.D.
White
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 2 Inch I.D.
White
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 15
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - 7/16 Inch I.D.
White
Qty: 4
Post Sleeves - Standard
Black
Qty: 5
(0)

White rubbers, no black post sleeves. Do those ever go bad?

Submitted by: Andrew B. Andrew B.
Submitted on: 2018-07-29 20:58:30 2018-07-29 20:58:30
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - Flipper Mini
Red
Qty: 1
Rubber Rings - 5/16 Inch I.D.
White
Qty: 6
Rubber Rings - 3/4 Inch I.D.
White
Qty: 4
Rubber Rings - 1 Inch I.D.
White
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 2 Inch I.D.
White
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 15
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - 7/16 Inch I.D.
White
Qty: 4
(0)

Some white and blue

Submitted by: Anonymous Anonymous
Submitted on: 2019-02-04 18:05:32 2019-02-04 18:05:32
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Blue
Qty: 3
Rubber Rings - Flipper Mini
Blue
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 1 Inch I.D.
Blue
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Purple
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 9
Rubber Rings - 7/16 Inch O.D.
Purple
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Blue
Qty: 2
Rubber Rings - Shooter Tip
White
Qty: 1
Post Sleeves - Standard
White
Qty: 2
Post Sleeves - Standard
Blue
Qty: 1
Post Sleeves - Standard
Yellow
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 6
Rubber Rings - 5/16 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 2 Inch I.D.
White
Qty: 4
(0)

Standard kit w/ 1 1/4" behind pop bumper changed to 1"

Submitted by: Anonymous Anonymous
Submitted on: 2019-12-07 15:59:51 2019-12-07 15:59:51
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - Flipper Mini
Red
Qty: 1
Rubber Rings - 5/16 Inch I.D.
White
Qty: 6
Rubber Rings - 3/4 Inch I.D.
White
Qty: 4
Rubber Rings - 1 Inch I.D.
White
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 2 Inch I.D.
White
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 15
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - 7/16 Inch I.D.
White
Qty: 4
Post Sleeves - Standard
Black
Qty: 5
(0)

This kit has colors changing by each area of the machine. Going with white for the upper playfield.

Submitted by: David B. David B.
Submitted on: 2020-05-13 18:35:59 2020-05-13 18:35:59
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - Flipper Mini
Red
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Purple
Qty: 2
Rubber Rings - 1 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Blue
Qty: 2
Rubber Rings - 2 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Purple
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Yellow
Qty: 7
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Red
Qty: 1
Post Sleeves - Standard
Blue
Qty: 3
Post Sleeves - Standard
Black
Qty: 2
Rubber Rings - Shooter Tip
Black
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Yellow
Qty: 2
(0)

Twilight Zone (Black Rubbers): Don't over think it. The game doesn't need a rainbow of colored rubber rings. Black looks very clean on both the upper playfield and main playfield.

Submitted by: Anonymous Anonymous
Submitted on: 2020-05-24 22:23:33 2020-05-24 22:23:33
View Full Kit

Rubber Rings - Flipper Standard
Black
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - Flipper Mini
Black
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 6
Rubber Rings - 1 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 2 Inch I.D.
Black
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 16
Post Sleeves - Standard
Black
Qty: 5
Rubber Rings - Shooter Tip
Black
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Black
Qty: 2
Rubber Rings - Flipper Standard
Black
Qty: 3
(0)

This kit uses clear rings, black posts and shooter tips, and purple flipper rubbers. See palette for color selection and amounts. Each kit I create is checked twice - the planetary pinball parts database and then I hand count on the playfield to confirm or adjust.

Submitted by: David F. David F.
Submitted on: 2020-06-24 06:10:52 2020-06-24 06:10:52
View Full Kit

Rubber Rings - Flipper Standard
Purple
Qty: 3
Rubber Rings - Flipper Mini
Purple
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 15
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 6
Post Sleeves - Standard
Black
Qty: 5
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 7/16 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - Shooter Tip
Black
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
(0)

TZ

Submitted by: Anonymous Anonymous
Submitted on: 2020-07-05 21:33:55 2020-07-05 21:33:55
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 7/16 Inch O.D.
Yellow
Qty: 10
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 10
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 5
Rubber Rings - 5/16 Inch I.D.
Yellow
Qty: 5
Post Sleeves - Standard
Yellow
Qty: 5
Rubber Rings - 3/4 Inch I.D.
Blue
Qty: 4
Rubber Rings - 3/4 Inch I.D.
Yellow
Qty: 4
Rubber Rings - 2 Inch I.D.
Blue
Qty: 2
Rubber Rings - 2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 7/16 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 7/16 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 Inch I.D.
Blue
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Yellow
Qty: 1
Rubber Rings - Shooter Tip
Black
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - Flipper Mini
Red
Qty: 1
(0)

Patricks Kit

Submitted by: Anonymous Anonymous
Submitted on: 2021-06-22 13:52:04 2021-06-22 13:52:04
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Blue
Qty: 3
Rubber Rings - Flipper Mini
Blue
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 15
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 6
Post Sleeves - Standard
Blue
Qty: 5
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 7/16 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - Shooter Tip
Blue
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
(0)

TWZ Incompliete

Submitted by: Anonymous Anonymous
Submitted on: 2021-06-28 16:40:04 2021-06-28 16:40:04
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 35
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 6
Post Sleeves - Standard
Black
Qty: 5
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 4
Rubber Rings - 2 Inch I.D.
Black
Qty: 4
Rubber Rings - 7/16 Inch I.D.
Black
Qty: 4
Rubber Rings - 1 Inch I.D.
Black
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - Shooter Tip
Black
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
(0)

All translucent (with a few extras) with red flipper rubbers

Submitted by: Anonymous Anonymous
Submitted on: 2022-01-30 15:40:35 2022-01-30 15:40:35
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - Flipper Mini
Red
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 15
Rubber Rings - Shooter Tip
Translucent
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Translucent
Qty: 4
Post Sleeves - Standard
Translucent
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
(0)

TZ kit with tapered post rings (make sure to have the thin part of the taper at the bottom when you install), and low bounce red flipper bands. Added one spare for each item (2 spare on bumper rings). I went translucent rings to get better illumination, but traditional would be white (photos show white rings).

Submitted by: Anonymous Anonymous
Submitted on: 2022-04-24 20:37:09 2022-04-24 20:37:09
View Full Kit

Rubber Rings - Low Bounce Standard Flipper
Red
Qty: 4
Rubber Rings - Flipper Mini
Red
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 7
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 17
Rubber Rings - Shooter Tip
Red
Qty: 2
Rubber Rings - 7/16 Inch I.D.
Translucent
Qty: 5
Post Sleeves - Stern Slim Tapered
Black
Qty: 5
(0)

Translucent and blue field, red flippers, a few spares to play with colors on bumpers.

Submitted by: Anonymous Anonymous
Submitted on: 2022-05-08 20:36:18 2022-05-08 20:36:18
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - Flipper Mini
Red
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
Purple
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 9
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 6
Post Sleeves - Standard
Blue
Qty: 3
Rubber Rings - Shooter Tip
Yellow
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - Shooter Tip
Purple
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - Shooter Tip
Lt. Blue
Qty: 1
(1)

Twilight Zone with low bounce flipper rings

Submitted by: Ray S. Ray S.
Submitted on: 2022-06-11 13:14:01 2022-06-11 13:14:01
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Low Bounce Standard Flipper
Blue
Qty: 3
Rubber Rings - Flipper Mini
Blue
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 2 Inch I.D.
Black
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
Purple
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 9
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Purple
Qty: 1
Post Sleeves - Standard
Blue
Qty: 3
Post Sleeves - Standard
Black
Qty: 2
Rubber Rings - Shooter Tip
Black
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Blue
Qty: 2
(0)

Clear and blue kit for Twilight Zone, from Randy's Pinball Repair. All clear rings, with blue flipper bands, post sleeves and shooter tip.

Submitted by: Randy W. Randy W.
Submitted on: 2022-11-16 16:43:50 2022-11-16 16:43:50
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Low Bounce Standard Flipper
Blue
Qty: 3
Rubber Rings - Flipper Mini
Blue
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 15
Rubber Rings - Shooter Tip
Blue
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Translucent
Qty: 4
Post Sleeves - Standard
Blue
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
(2)

All CLEAR rubbers w RED flipper, red slim post sleeves (install narrow side down) and shooter tip will make the playfield look awesome. Amazing game! All per manual. LOOKS AMAZING

Submitted by: Ty J. Ty J.
Submitted on: 2023-01-22 23:42:56 2023-01-22 23:42:56
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Low Bounce Standard Flipper
Red
Qty: 3
Rubber Rings - Flipper Mini
Red
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 15
Rubber Rings - Shooter Tip
Red
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Translucent
Qty: 4
Post Sleeves - Tapered Post
Red
Qty: 5
(0)

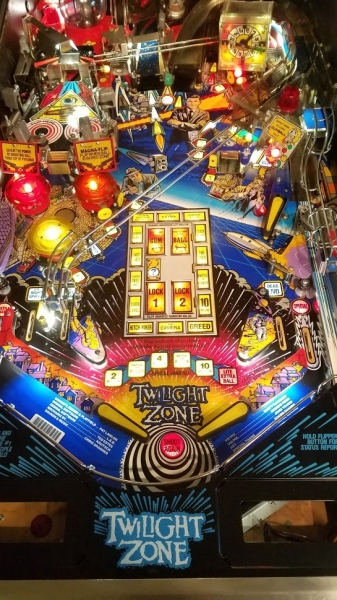

Twilight Zone

Submitted by: Anonymous Anonymous
Submitted on: 2023-03-07 22:30:19 2023-03-07 22:30:19
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Blue
Qty: 3
Rubber Rings - Flipper Mini
Blue
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 2 Inch I.D.
Black
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
Purple
Qty: 2
Rubber Rings - 7/16 Inch I.D.
Blue
Qty: 9
Rubber Rings - 7/16 Inch I.D.
Black
Qty: 6
Rubber Rings - 7/16 Inch I.D.
Purple
Qty: 1
Post Sleeves - Standard
Blue
Qty: 3
Post Sleeves - Standard
Black
Qty: 2
Rubber Rings - Shooter Tip
Black
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Blue
Qty: 2
(0)

.

Submitted by: Anonymous Anonymous
Submitted on: 2023-04-18 13:22:02 2023-04-18 13:22:02
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - Flipper Mini
Red
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 15
Rubber Rings - Shooter Tip
Red
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Translucent
Qty: 4
Post Sleeves - Tapered Post
Red
Qty: 5
(0)

Translucent rubber kit without flippers or shooter tip.

Submitted by: Anonymous Anonymous
Submitted on: 2023-07-21 11:49:01 2023-07-21 11:49:01
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 15
Rubber Rings - 7/16 Inch I.D.
Translucent
Qty: 4
Post Sleeves - Standard
Translucent
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1

Powered By Awesome Pinball Players Like You!
Made with love by 86Pixels
Titan Pinball © 2024
