Whirlwind Rubber Kits



Williams Electronics Games, Incorporated, a subsidiary of WMS Ind., Incorporated , January, 1990
4 Players , 3 Balls

(0)

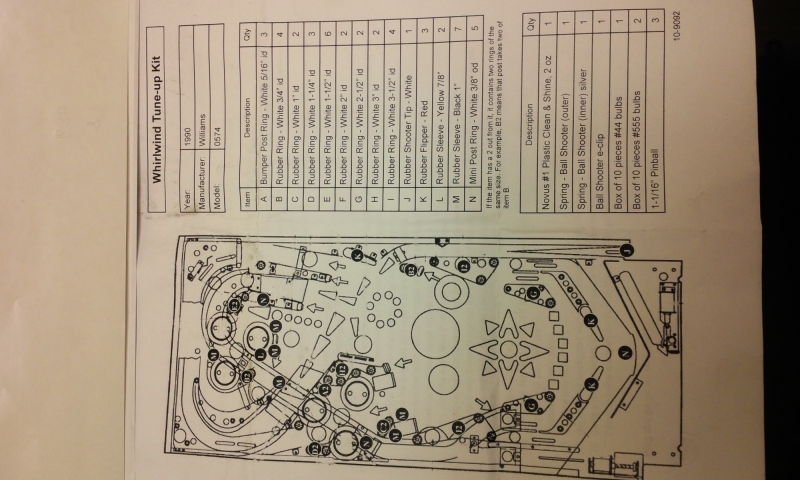

Basic White Kit - Things I changed from the attached image: I went with all yellow post sleeves. I used 7/16 OD for the mini-posts since they're closer to what I have seen commonly used.

Submitted by: Harold T. Harold T.
Submitted on: 2015-09-03 06:18:54 2015-09-03 06:18:54
View Full Kit

Rubber Rings - 5/16 Inch I.D.
White
Qty: 9
Rubber Rings - 3/4 Inch I.D.
White
Qty: 6
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 4
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 3
Post Sleeves - Standard
Yellow
Qty: 2
Post Sleeves - Standard
Yellow
Qty: 6
Rubber Rings - 7/16 Inch O.D.
White
Qty: 10
(0)

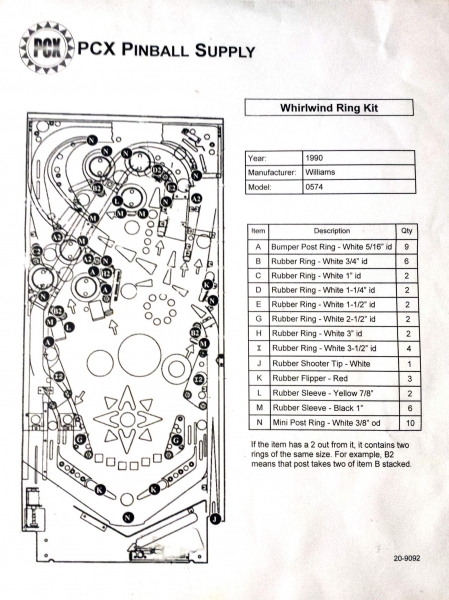

Whirlwind rubber ring kit (factory colors) Not listed in the Titan drop down menu, You will need...... 2) Yellow 7/8 rubber sleeves 7) Black 1'' rubber sleeves 5) White 3/8 OD mini post rings

Submitted by: devin w. devin w.
Submitted on: 2016-02-08 08:01:37 2016-02-08 08:01:37
View Full Kit

Rubber Rings - 5/16 Inch I.D.
White
Qty: 3
Rubber Rings - 3/4 Inch I.D.
White
Qty: 4
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 6
Rubber Rings - 2 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 4
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - 3/8 Inch O.D.
White
Qty: 5
Rubber Rings - Flipper Standard
Red
Qty: 3
Post Sleeves - Standard
Black
Qty: 9
(0)

standard kit with 7/16 mini posts

Submitted by: Anonymous Anonymous
Submitted on: 2016-03-15 18:18:57 2016-03-15 18:18:57
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
White
Qty: 9
Rubber Rings - 3/4 Inch I.D.
White
Qty: 6
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 4
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 3
Post Sleeves - Standard
Yellow
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 10
Post Sleeves - Standard
Black
Qty: 6
(0)

HUO whirlwind

Submitted by: Anonymous Anonymous
Submitted on: 2018-12-04 18:21:25 2018-12-04 18:21:25
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
White
Qty: 9
Rubber Rings - 3/4 Inch I.D.
White
Qty: 6
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 4
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - 7/16 Inch O.D.
White
Qty: 10
Post Sleeves - Standard
Black
Qty: 9
(0)

Added Extra blue and yellow post sleeves to replace black sleeves in previous kit

Submitted by: Anonymous Anonymous
Submitted on: 2019-03-18 08:55:21 2019-03-18 08:55:21
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
White
Qty: 9
Rubber Rings - 3/4 Inch I.D.
White
Qty: 6
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 4
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - 7/16 Inch O.D.
White
Qty: 10
Post Sleeves - Standard
Blue
Qty: 9
Post Sleeves - Standard
Yellow
Qty: 9
(0)

Full Kit in Translucent with red flippers and yellow posts.

Submitted by: Anonymous Anonymous
Submitted on: 2019-04-17 09:24:47 2019-04-17 09:24:47
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 9
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 3 1/2 Inch I.D.
Translucent
Qty: 4
Rubber Rings - Shooter Tip
Translucent
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 10
Post Sleeves - Standard
Yellow
Qty: 9
(0)

Cool blue kit. No flippers or shooter rubbers included :)

Submitted by: Anonymous Anonymous
Submitted on: 2020-02-25 17:13:22 2020-02-25 17:13:22
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Blue
Qty: 4
Rubber Rings - 1 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Blue
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Blue
Qty: 6
Rubber Rings - 2 Inch I.D.
Blue
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Blue
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Blue
Qty: 4
Post Sleeves - Standard
Blue
Qty: 8
Verified
(0)

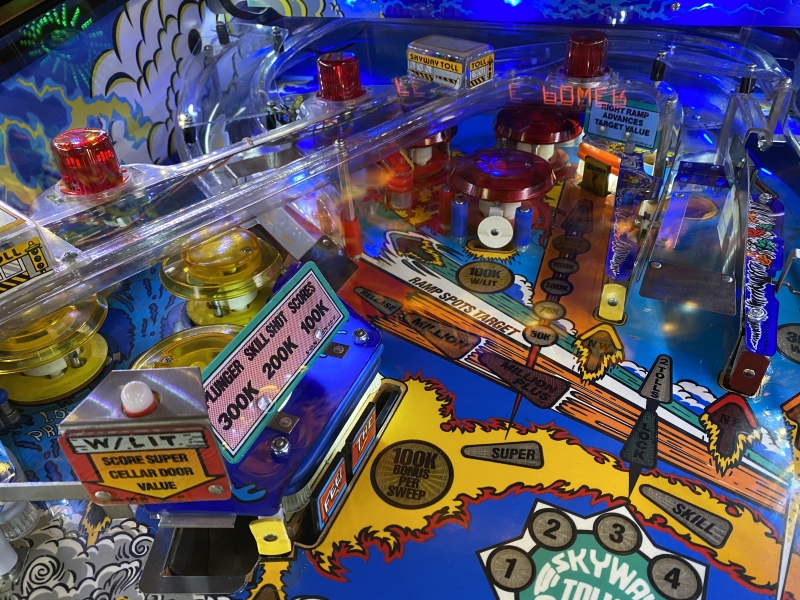

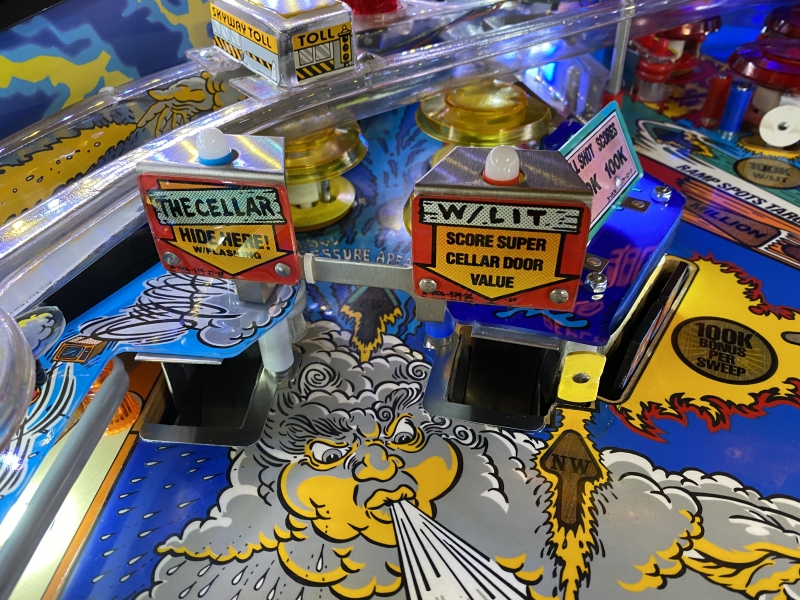

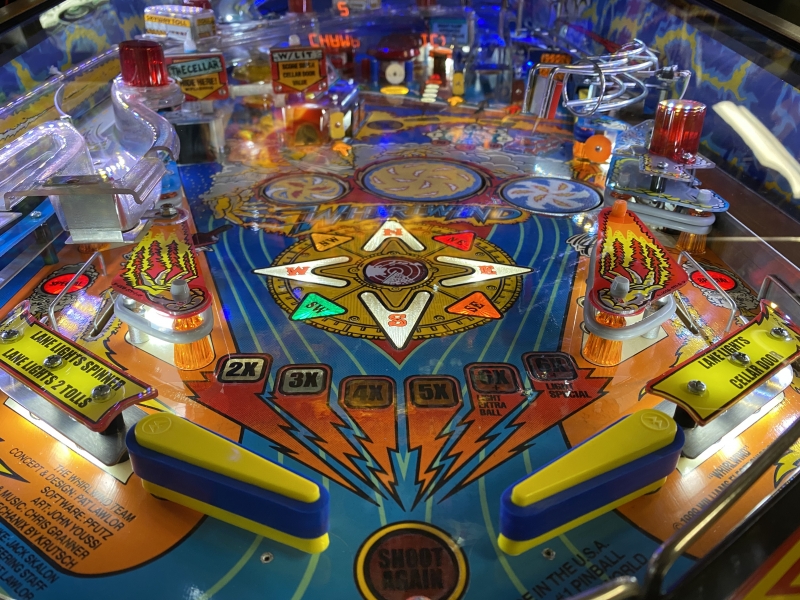

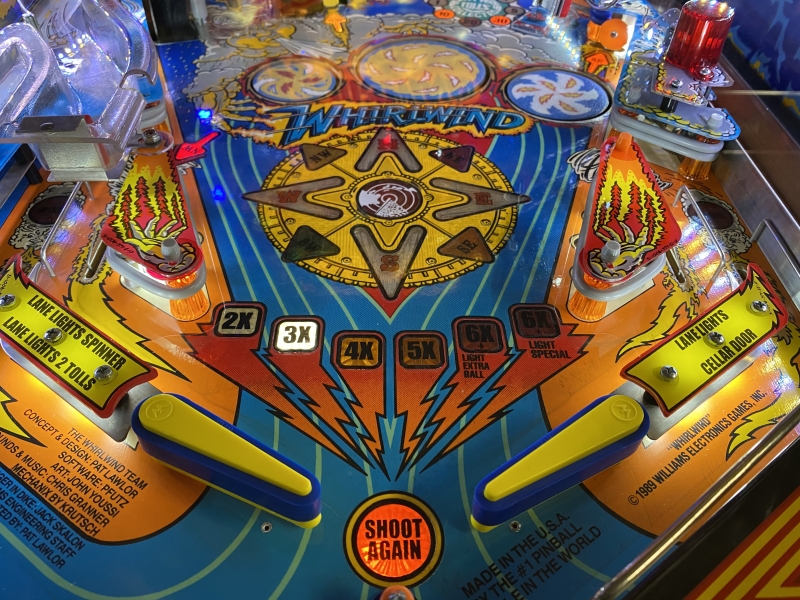

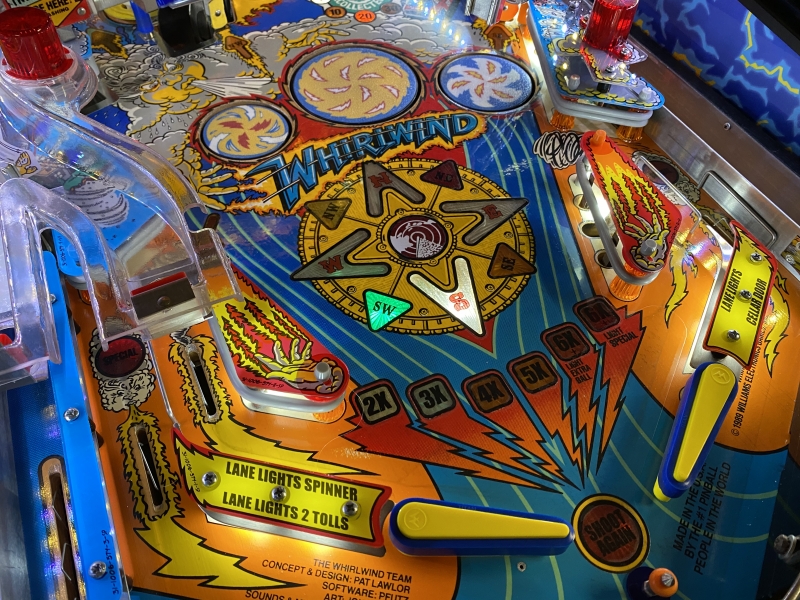

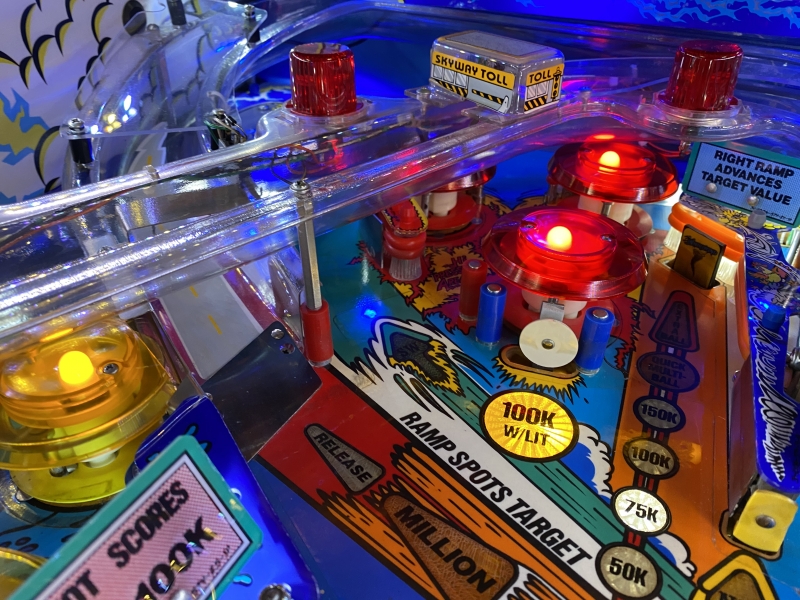

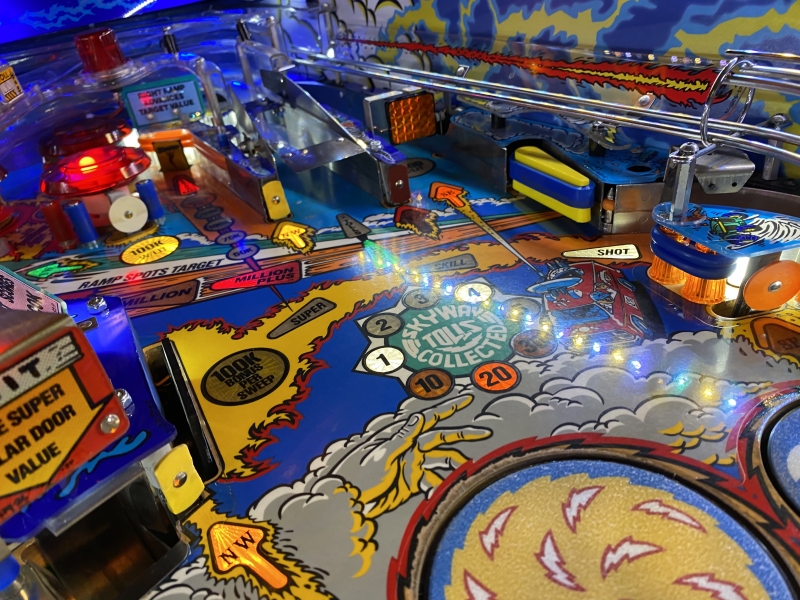

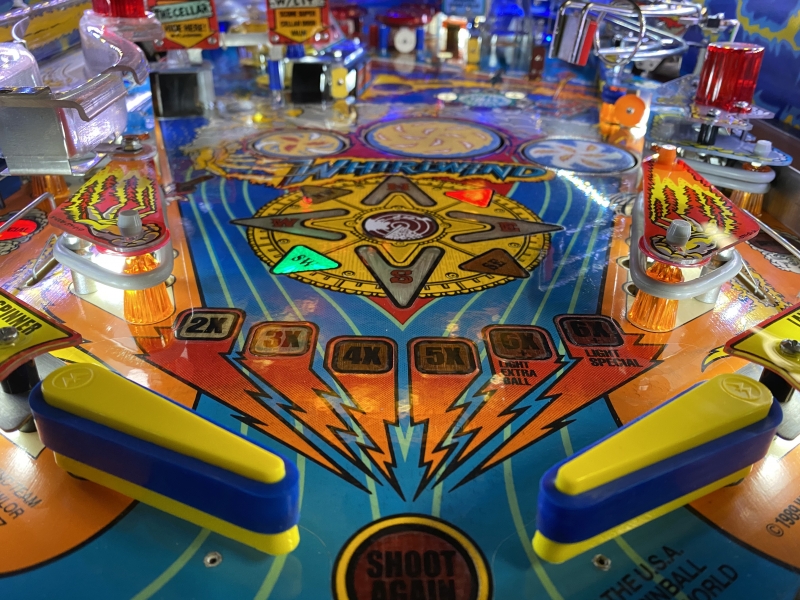

Custom Titan Pinball kit as seen on our Whirlwind at shows. Includes color matched to area rings and post caps. Includes 1 each extra post cap in each color. Also includes extra post sleve (some versions take 9, others 8) and a couple extra 3/8" OD to give some color placement options. MORE INFO: Also takes 3 of the 1x1 bumper pads, and if you are replacing star posts use 4 Orange Single Star Posts (slingshots), 8 Orange Double Star Post (lowest doubles, 3 on the left, 5 on the right) and 16 Clear Double Star Post for all the rest ;) ES 1/25/2022

Submitted by: Titan . Titan .
Submitted on: 2020-02-29 19:35:21 2020-02-29 19:35:21
View Full Kit

Misc - Post Cap
Grey
Qty: 8
Misc - Post Cap
Lt. Blue
Qty: 4
Misc - Post Cap
Orange
Qty: 2
Misc - Post Cap
Blue
Qty: 8
Post Sleeves - Standard
Red
Qty: 2
Post Sleeves - Standard
Orange
Qty: 1
Post Sleeves - Standard
Grey
Qty: 1
Post Sleeves - Standard
Blue
Qty: 5
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Lt. Blue
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Red
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Orange
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Orange
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Lt. Blue
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Blue
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Grey
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Red
Qty: 2
Rubber Rings - 1 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Orange
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Orange
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Grey
Qty: 2
Rubber Rings - 2 3/4 Inch I.D.
Blue
Qty: 2
Rubber Rings - 3 Inch I.D.
Grey
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Grey
Qty: 2
Rubber Rings - Flipper Standard
Blue
Qty: 3
Rubber Rings - Shooter Tip
Orange
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Yellow
Qty: 1
(0)

Clear Rings, Red Flippers. Includes extra rings -- used the owner's manual plus aftermarket ring kits to come up with sizes/quantities. Add three of the 1" Bumper Pads to your cart as well -- they were not an option to add to the kit.

Submitted by: Anonymous Anonymous
Submitted on: 2020-11-26 08:05:00 2020-11-26 08:05:00
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 9
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Translucent
Qty: 4
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - Shooter Tip
Red
Qty: 1
Post Sleeves - Standard
Translucent
Qty: 8
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 10
(0)

Extra colour posts

Submitted by: Anonymous Anonymous
Submitted on: 2020-11-29 04:20:35 2020-11-29 04:20:35
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Lt. Blue
Qty: 6
Post Sleeves - Standard
Red
Qty: 4
(0)

Whirlwind, plus tapered post, extra flipper and coloured posts

Submitted by: Anonymous Anonymous
Submitted on: 2020-11-29 05:11:12 2020-11-29 05:11:12
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Lt. Blue
Qty: 6
Post Sleeves - Standard
Yellow
Qty: 6
Post Sleeves - Standard
Red
Qty: 6
Post Sleeves - Tapered Post
Yellow
Qty: 1
Rubber Rings - Flipper Standard
Orange
Qty: 3
Rubber Rings - Flipper Standard
Lt. Blue
Qty: 3
(0)

Whirlwind titan ring kit

Submitted by: Anonymous Anonymous
Submitted on: 2022-09-15 16:42:54 2022-09-15 16:42:54
View Full Kit

This kit doesn't have any photos.
Misc - Post Cap
Grey
Qty: 8
Misc - Post Cap
Lt. Blue
Qty: 4
Misc - Post Cap
Orange
Qty: 2
Misc - Post Cap
Blue
Qty: 8
Post Sleeves - Standard
Red
Qty: 2
Post Sleeves - Standard
Orange
Qty: 1
Post Sleeves - Standard
Grey
Qty: 1
Post Sleeves - Standard
Blue
Qty: 5
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Lt. Blue
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Red
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Orange
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Orange
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Lt. Blue
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Blue
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Grey
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Red
Qty: 2
Rubber Rings - 1 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Orange
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Orange
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Grey
Qty: 2
Rubber Rings - 2 3/4 Inch I.D.
Blue
Qty: 2
Rubber Rings - 3 Inch I.D.
Grey
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Grey
Qty: 2
Rubber Rings - Flipper Standard
Blue
Qty: 3
Rubber Rings - Shooter Tip
Orange
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Yellow
Qty: 1
(0)

Clear kit with orange posts and red flippers

Submitted by: Anonymous Anonymous
Submitted on: 2023-10-05 19:07:16 2023-10-05 19:07:16
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Orange
Qty: 10
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - Shooter Tip
Translucent
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 10
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 10
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 3 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Translucent
Qty: 4
(0)

Factory rubber kit

Submitted by: Anonymous Anonymous
Submitted on: 2023-10-23 10:06:43 2023-10-23 10:06:43
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
White
Qty: 9
Rubber Rings - 3/4 Inch I.D.
White
Qty: 6
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 4
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 3
Post Sleeves - Standard
Yellow
Qty: 2
Post Sleeves - Standard
Yellow
Qty: 6
Rubber Rings - 7/16 Inch O.D.
White
Qty: 10
(0)

Color custom Whirlwind with extras

Submitted by: Anonymous Anonymous
Submitted on: 2024-01-17 16:44:22 2024-01-17 16:44:22
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 9
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Translucent
Qty: 4
Rubber Rings - Flipper Standard
Orange
Qty: 3
Rubber Rings - Shooter Tip
Orange
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 10
Misc - Post Cap
Orange
Qty: 2
Post Sleeves - Standard
Lt. Blue
Qty: 2
Post Sleeves - Standard
Blue
Qty: 2
Post Sleeves - Standard
Red
Qty: 4
Post Sleeves - Standard
Yellow
Qty: 1
Post Sleeves - Standard
Orange
Qty: 1
Post Sleeves - Standard
Grey
Qty: 1
Post Sleeves - Tapered Post
Red
Qty: 1
Post Sleeves - Tapered Post
Blue
Qty: 1

Powered By Awesome Pinball Players Like You!
Made with love by 86Pixels
Titan Pinball © 2024
