(0)

Basic White kit from manual

Submitted by: Anonymous Anonymous

Submitted on: 2015-04-13 20:47:20 2015-04-13 20:47:20

(0)

Uses Blue Post Sleeves

Submitted by: Anonymous Anonymous

Submitted on: 2016-12-27 09:32:44 2016-12-27 09:32:44

(0)

white water

Submitted by: Anonymous Anonymous

Submitted on: 2017-11-18 15:05:40 2017-11-18 15:05:40

(0)

White Water

Submitted by: Anonymous Anonymous

Submitted on: 2017-11-19 19:49:30 2017-11-19 19:49:30

(0)

ww

Submitted by: Anonymous Anonymous

Submitted on: 2017-11-25 15:11:43 2017-11-25 15:11:43

(0)

My version of whitewater

Submitted by: Anonymous Anonymous

Submitted on: 2018-01-01 19:53:13 2018-01-01 19:53:13

(0)

White Water Kit (no shooter rubber or flipper rings!) with white rubbers and blue posts. Classy and close to stock. But easier to clean with the Titans!

Submitted by: Anonymous Anonymous

Submitted on: 2018-07-20 16:44:09 2018-07-20 16:44:09

(0)

Correct Rubbers

Submitted by: Anonymous Anonymous

Submitted on: 2018-09-26 12:10:07 2018-09-26 12:10:07

(0)

My wh2o rubber kit

Submitted by: Anonymous Anonymous

Submitted on: 2019-01-11 03:33:07 2019-01-11 03:33:07

(0)

All blue kit - with blue post sleeves and extra star post rings, the kit from the manual is missing rings so this kit has those and a couple extra, fault on the side of extra

Submitted by: Mark H. Mark H.

Submitted on: 2019-11-26 16:22:07 2019-11-26 16:22:07

(0)

Factory spec'd kit

Submitted by: Anonymous Anonymous

Submitted on: 2020-08-13 08:30:42 2020-08-13 08:30:42

(1)

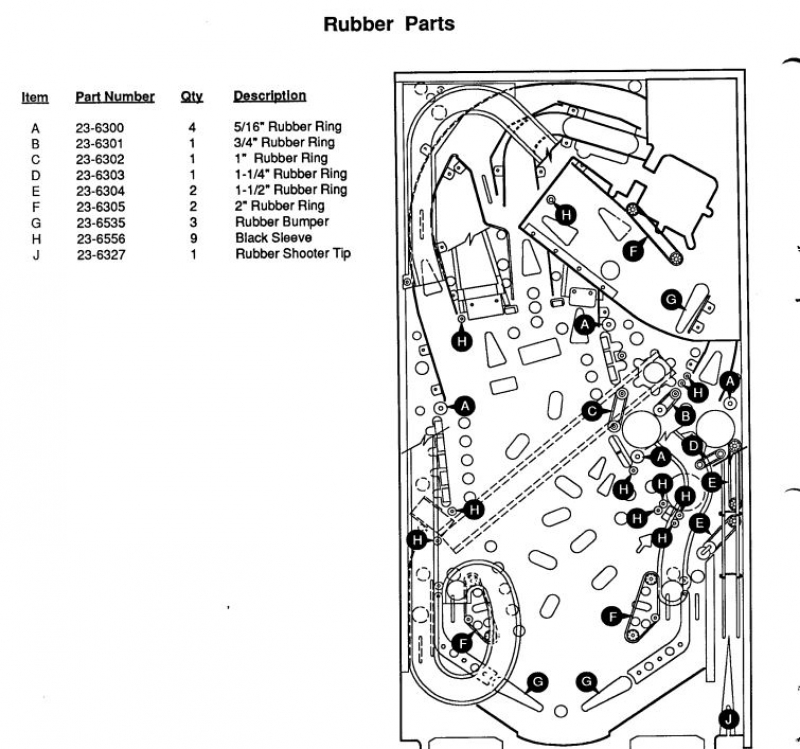

The ring list in the manual is incorrect. There are a bunch of other ones listed in the database here which either don't have them all, or have extras and you don't know which are extras. This is the exact rubbers you need with no extras. You can always change the quantity in the cart if you want extras. Also, the rubbers are blue except the slings are clear. When you add the kit to your cart, it will ask you what colors you want, so no need to add a kit just to get different colors. Lastly, the stock sling diameter is 2" ID. You will notice in this kit there is only 1 2" ID ring. That is for the upper playfield. The 2 1/4" rings are for the slings. If you buy the 2" ID rings for the slings, they tend to break really easy. The little extra room gives you a considerable amount of extra life.

Submitted by: Charlie M. Charlie M.

Submitted on: 2021-04-09 08:18:34 2021-04-09 08:18:34

(0)

Blue and White Kit with flipper rings

Submitted by: Anonymous Anonymous

Submitted on: 2022-06-24 17:07:05 2022-06-24 17:07:05

(1)

Correct rubber ring kit, plus 1 of each size for spares. The manual is missing some rings. Sling rubber size is 1/4" larger for better fit. Clear rubbers, blue posts and flippers.

Submitted by: phillip h. phillip h.

Submitted on: 2022-08-30 15:24:57 2022-08-30 15:24:57

(0)

Translucent Rings everywhere except Flippers and Post Sleeves which are Light Blue.

Submitted by: Anonymous Anonymous

Submitted on: 2022-11-24 20:10:09 2022-11-24 20:10:09

(0)

all clear with blue posts and red and blue flipper rubbers

Submitted by: Anonymous Anonymous

Submitted on: 2023-12-05 13:29:32 2023-12-05 13:29:32

(0)

Proper sized kit

Submitted by: Anonymous Anonymous

Submitted on: 2024-01-12 08:14:15 2024-01-12 08:14:15

(0)

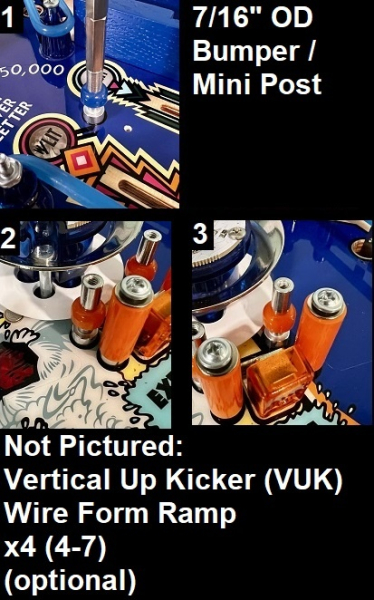

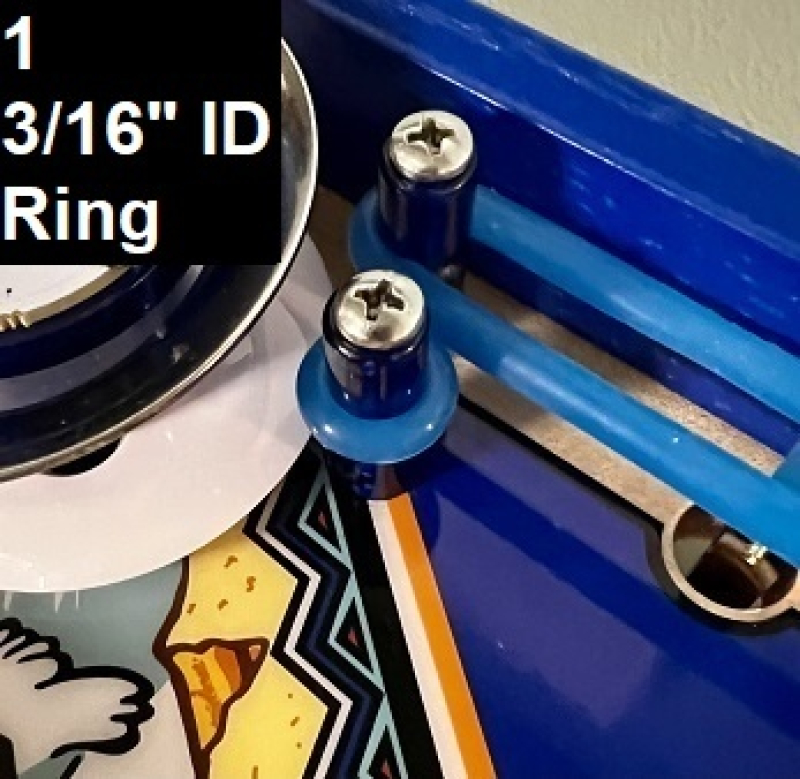

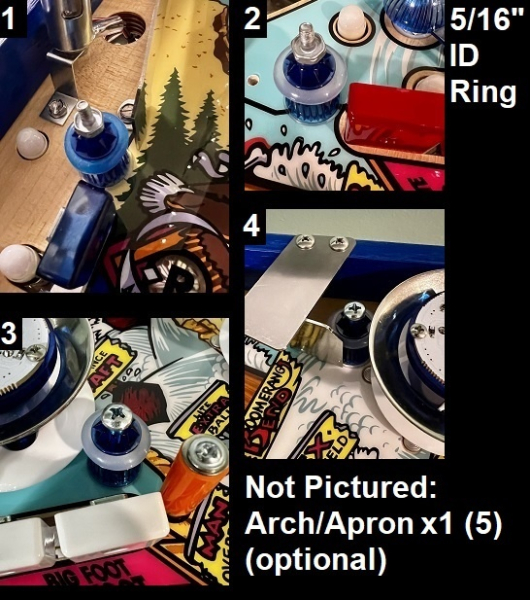

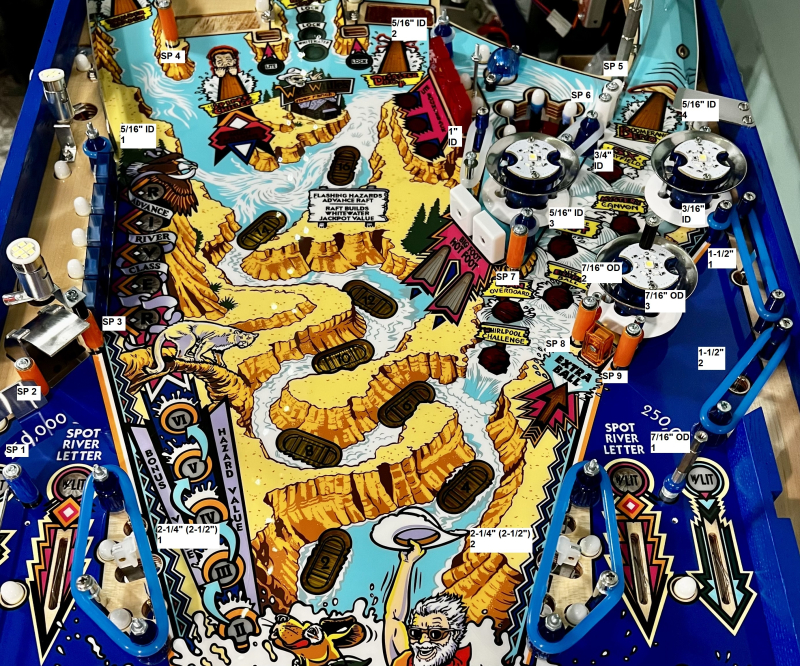

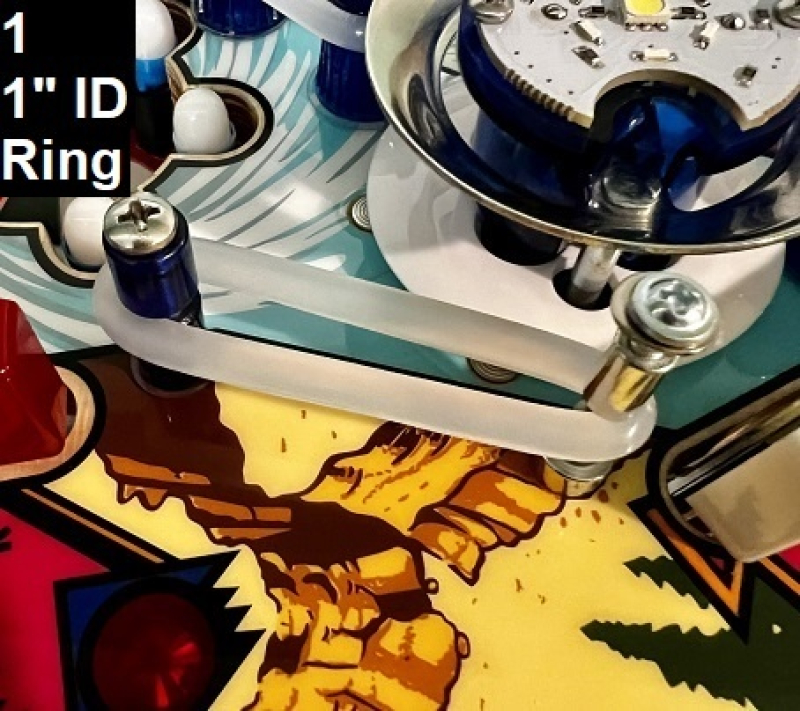

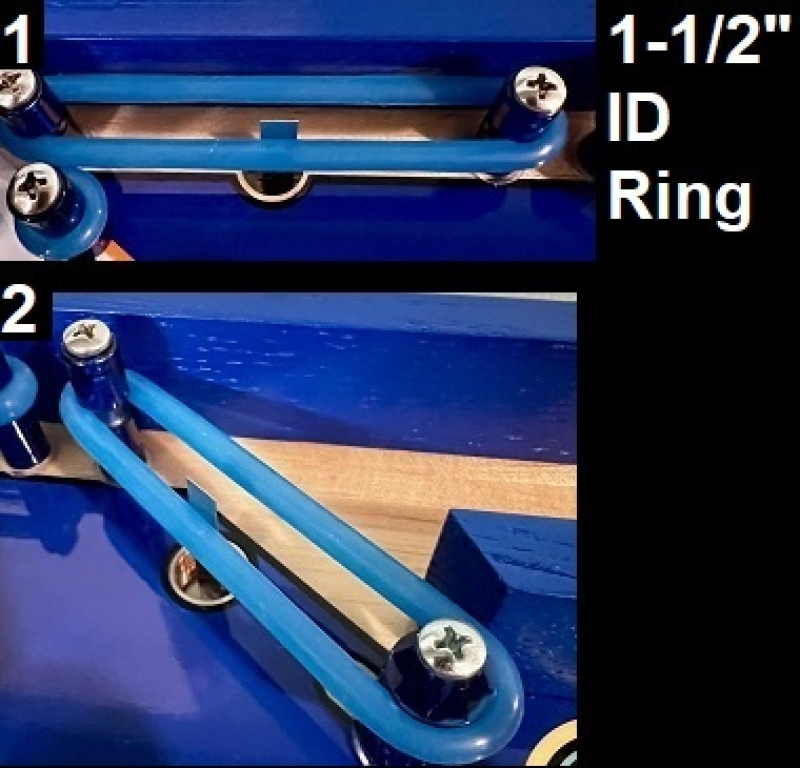

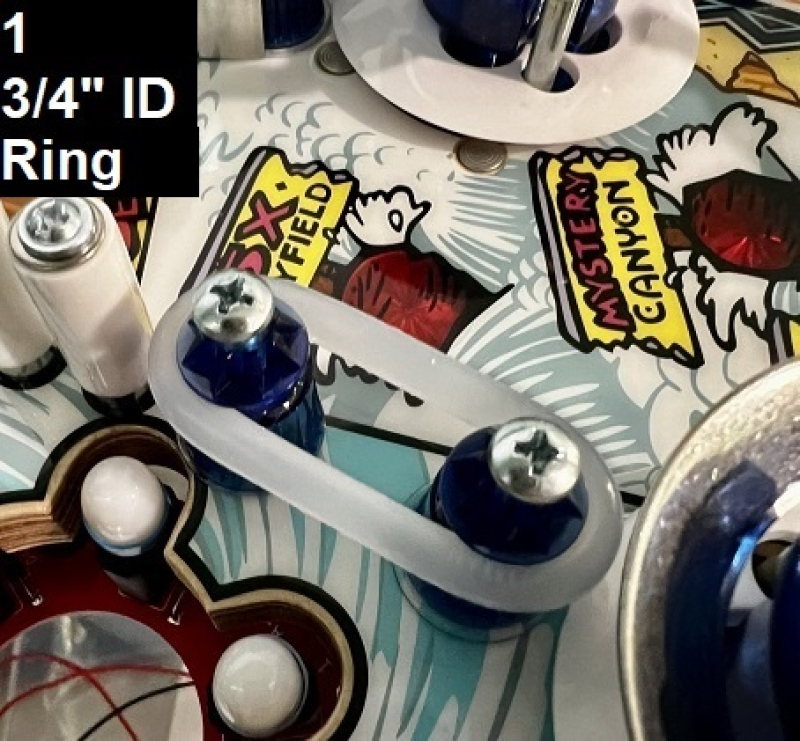

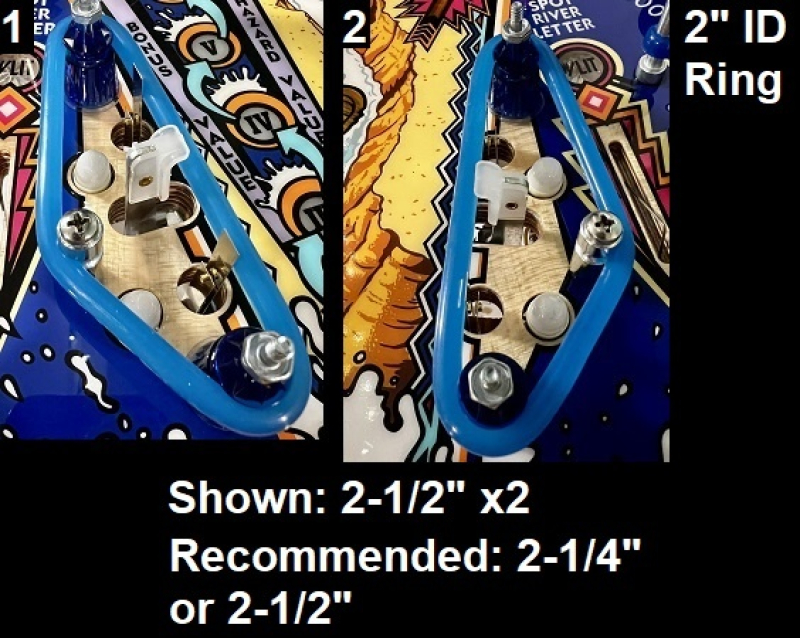

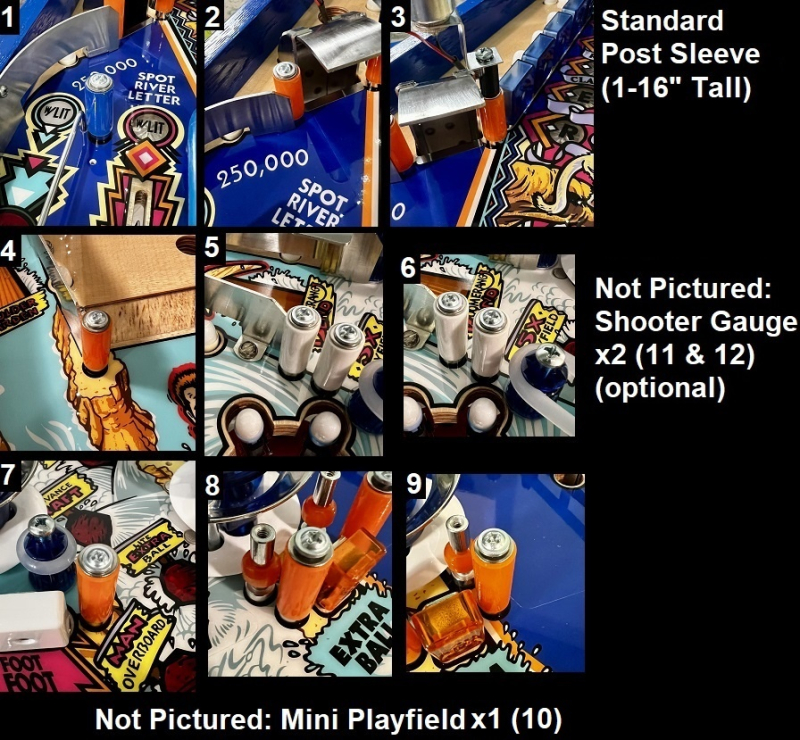

Give your WH2O new life and a splash of color! Totally complete kit for White Water, so please customize for your needs and remove what you don't need. Notes and details are below: - 3/16" ID ring (#23-6641) x1 (slim plastic post, top of Jet Arena) - 5/16" ID ring (#23-6300) x5 (1 is optional) (plastic starred posts (optional one is on arch/apron)) - 3/4" ID ring (#23-6301) x1 (inner, left side of Boulder Garden) - 1" ID ring (#23-6302) x1 (outer, left side of Boulder Garden) - 1-1/4" ID ring (#23-6303) x1 (optional, not pictured) (replaced by 3/16" ID ring (#23-6641) x1) (seals an exit from Boulder Garden, seldom used) - 1-1/2" ID ring (#23-6304) x2 (right of Jet Arena) - 2" ID ring (#23-6305) x1 (Upper Playfield) - 2-1/4" ID ring x2 (or use 2-1/2" ID ring (#23-6306)) (Slingshots) (2" ID stock is too small for good durability) - Standard Post / 1-16" tall (7/16" OD) (#23-6556) x12 (2 are optional for shooter gauge starred posts (cut 1/4" away, to protect light shield)) - Bumper / 7/16" OD (#23-6535) x7 (4 optional) (optional 4 are for Vertical Up Kicker wire form ramp to prevent backspin, cut once and slide on the end that exits to the upper playfield) - Flipper Ring 1-1/2" ID (#23-6695) x3 (2 main playfield, 1 mini playfield) - Shooter Tip (#23-6327) x1 - Post Cap x2 (optional, not pictured, for both ends of the apron / arch to protect the decals) Using translucent blue and translucent white rings, with some orange for bumper posts to blend in with the boulders/mountains. 2-1/4” ID (or 2-1/2" ID) rings for the slingshots / slings (instead of 2" ID) for better durability, and no ring for partially closing off the Jet Arena to the right lanes, as this isn't typically found in games and doesn't actually decrease ball drains. Translucent blue flippers (standard) and shooter tip. Translucent blue rings go on the lower region of the playfield, by RIVER and the Jet Arena. Translucent white rings go on the lower region of the playfield to the left of the Boulder Garden and on the upper playfield. Areas are color matched for perfection! Note: If using the 3/16" ID ring and not using the 1-1/2" ring, it might mean you have an extra starred post in your Boulder Garden. You can leave the starred post in place if you want, but then add one more 5/16" ID ring to the order (x6 5/16" ID rings, total)

Submitted by: Matthew d. Matthew d.

Submitted on: 2024-11-17 13:37:02 2024-11-17 13:37:02
