Guardians of the Galaxy (Limited Edition) Rubber Kits



Stern Pinball, Incorporated , 2017
4 Players

(0)

From The manual except with 2-1/4" slingshot rings

Submitted by: Titan . Titan .
Submitted on: 2018-10-06 12:15:23 2018-10-06 12:15:23
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 6
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Black
Qty: 1
Rubber Rings - 2 1/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 8
Rubber Rings - Shooter Tip
Black
Qty: 1
Rubber Rings - Flipper Standard
Black
Qty: 2
(0)

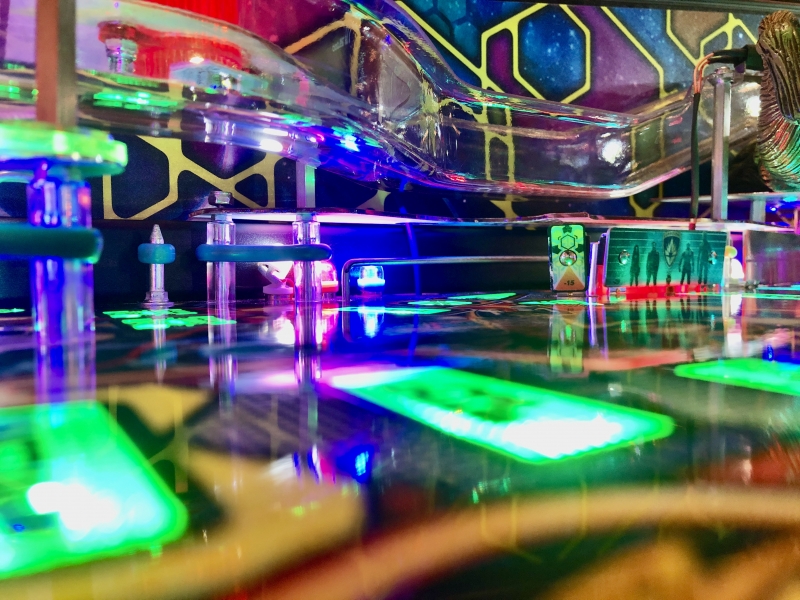

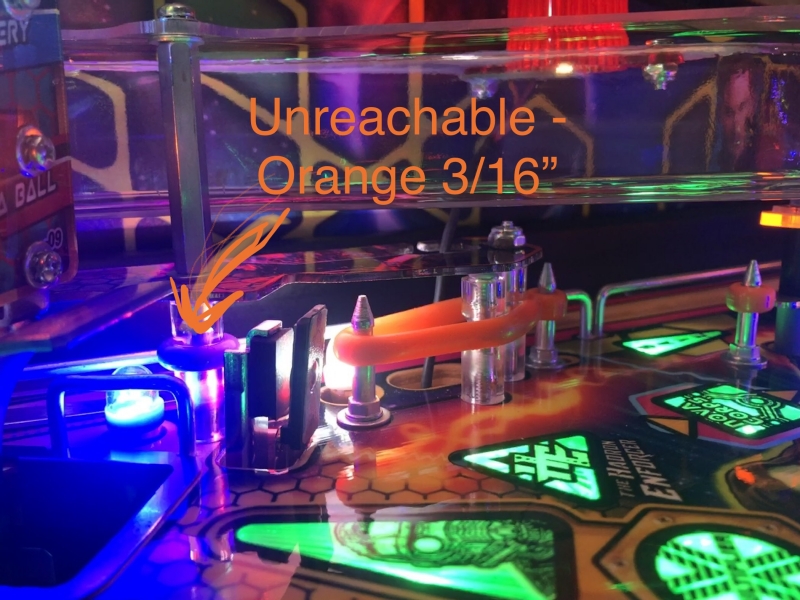

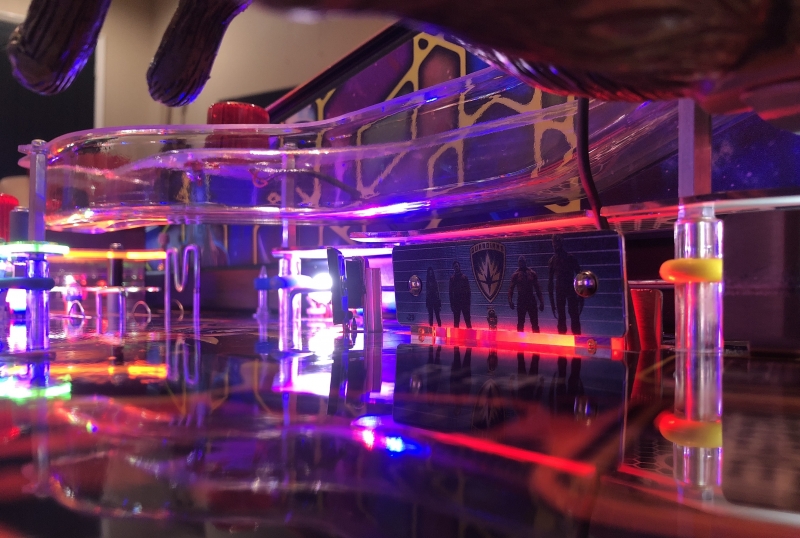

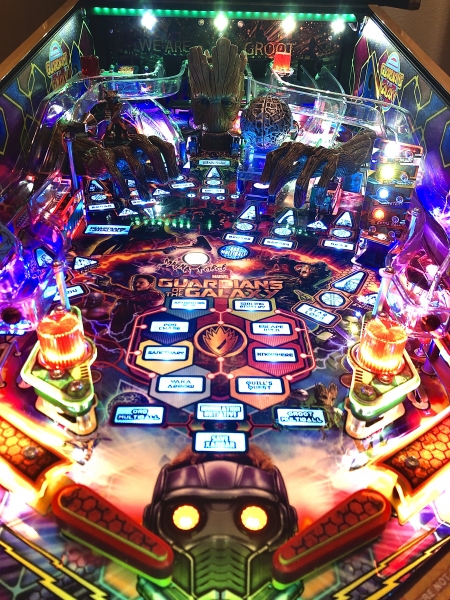

Works with all GOTG models. This set attempts to match colors to the play modes closest to the related shots on the playfield. There are some undocumented rubbers on the machine and these are included in this set. For instance, there is an impossible to hit post that has a rubber to the right of the mode scoop. All posts were accounted for and color matched to their shot targets as well. See pictures to see how it all looks and where the colors were placed. Make sure to use the appropriate size rings on the upper lanes that drop into the bumpers, the posts and rings are larger towards the bumpers to keep the ball from popping up through the lane too frequently when the pop bumpers are in action. Also note that the slingshots in this game use smaller diameter rings than many of the "standard" stern games (the larger standard ones are too big). I originally ordered both standard post sleeves and the Stern Slim Tapered post sleeves and you definitely want the Stern Slim Tapered and install them slim side down towards the playfield to best keep the ball from jumping.

Submitted by: TOM S. TOM S.
Submitted on: 2020-11-26 18:42:18 2020-11-26 18:42:18
View Full Kit

Rubber Rings - Low Bounce Standard Flipper
Red
Qty: 2
Rubber Rings - 2 1/4 Inch I.D.
Green
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Red
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Green
Qty: 1
Rubber Rings - 3/16 Inch I.D.
Yellow
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Lt. Blue
Qty: 1
Rubber Rings - 1 Inch I.D.
Orange
Qty: 1
Rubber Rings - Shooter Tip
Red
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Orange
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Lt. Blue
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Green
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Pink
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Orange
Qty: 1
Post Sleeves - Stern Slim Tapered
Blue
Qty: 2
Post Sleeves - Stern Slim Tapered
Green
Qty: 1
Post Sleeves - Stern Slim Tapered
Purple
Qty: 2
(0)

Black rubber version of TomS

Submitted by: Anonymous Anonymous
Submitted on: 2021-03-02 09:27:50 2021-03-02 09:27:50
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Black
Qty: 2
Rubber Rings - Shooter Tip
Black
Qty: 1
Post Sleeves - Stern Slim Tapered
Black
Qty: 5
Rubber Rings - 2 1/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 7
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Black
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 8
