Black Hole Rubber Kits



D. Gottlieb & Company, a Columbia Pictures Industries Company , October, 1981
4 Players

(1)

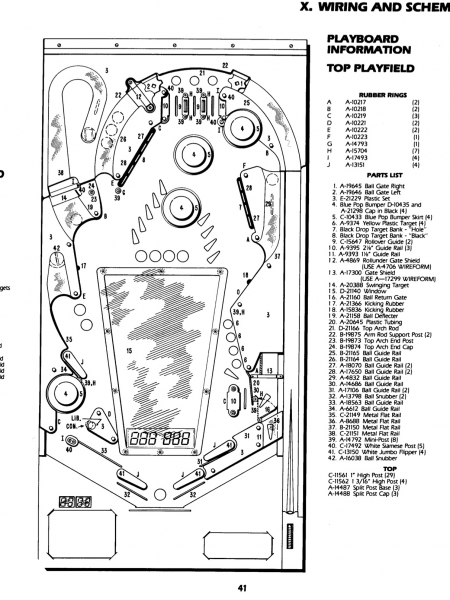

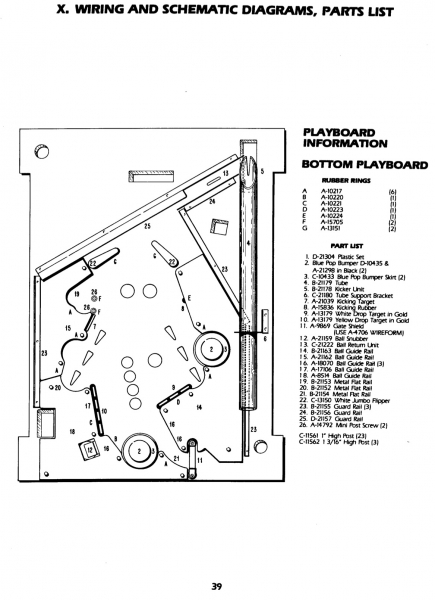

Per Gottlieb Parts Manual. For both lower and upper playfields.

Submitted by: Scott C. Scott C.
Submitted on: 2015-09-12 09:23:24 2015-09-12 09:23:24
View Full Kit

Rubber Rings - 5/16 Inch I.D.
White
Qty: 8
Rubber Rings - 3/4 Inch I.D.
White
Qty: 2
Rubber Rings - 1 Inch I.D.
White
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 2 Inch I.D.
White
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 7/16 Inch O.D.
White
Qty: 9
Rubber Rings - Flipper 3/8 Inch
Red
Qty: 6
Rubber Rings - 3/8 Inch O.D.
White
Qty: 1
Rubber Rings - 7/16 Inch I.D.
White
Qty: 4
Rubber Rings - Shooter Tip
White
Qty: 1
(0)

Color light blue kit with glow flipper rubber

Submitted by: James C. James C.
Submitted on: 2016-03-29 19:15:30 2016-03-29 19:15:30
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Lt. Blue
Qty: 8
Rubber Rings - Shooter Tip
Lt. Blue
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Lt. Blue
Qty: 4
Rubber Rings - 3/8 Inch O.D.
Lt. Blue
Qty: 1
Rubber Rings - Flipper 3/8 Inch
Glow
Qty: 6
Rubber Rings - 3 1/2 Inch I.D.
Lt. Blue
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Lt. Blue
Qty: 9
Rubber Rings - 3 Inch I.D.
Lt. Blue
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Lt. Blue
Qty: 2
Rubber Rings - 3 Inch I.D.
Lt. Blue
Qty: 2
Rubber Rings - 2 Inch I.D.
Lt. Blue
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Lt. Blue
Qty: 1
Rubber Rings - 1 Inch I.D.
Lt. Blue
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Lt. Blue
Qty: 2
(0)

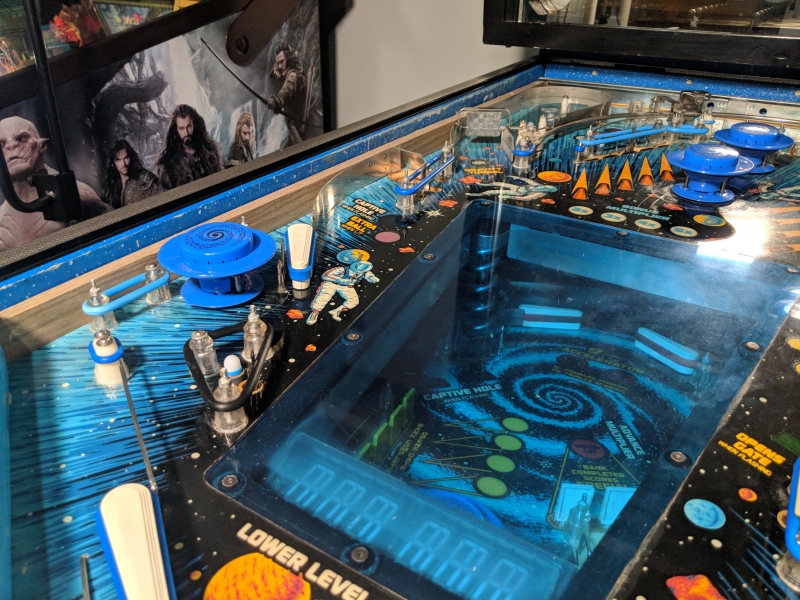

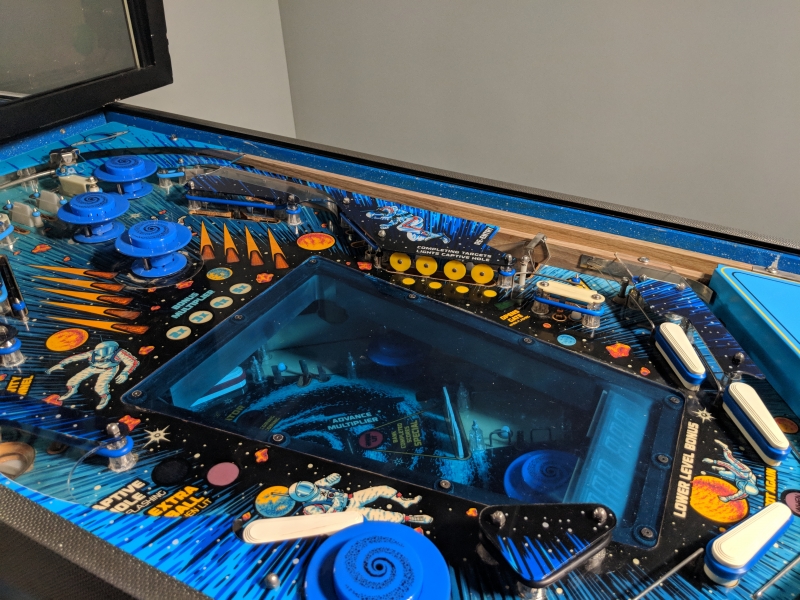

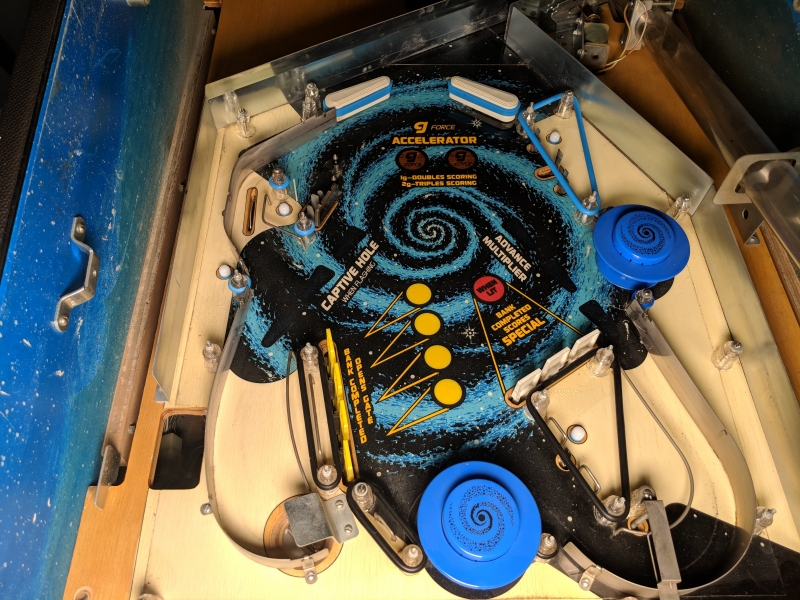

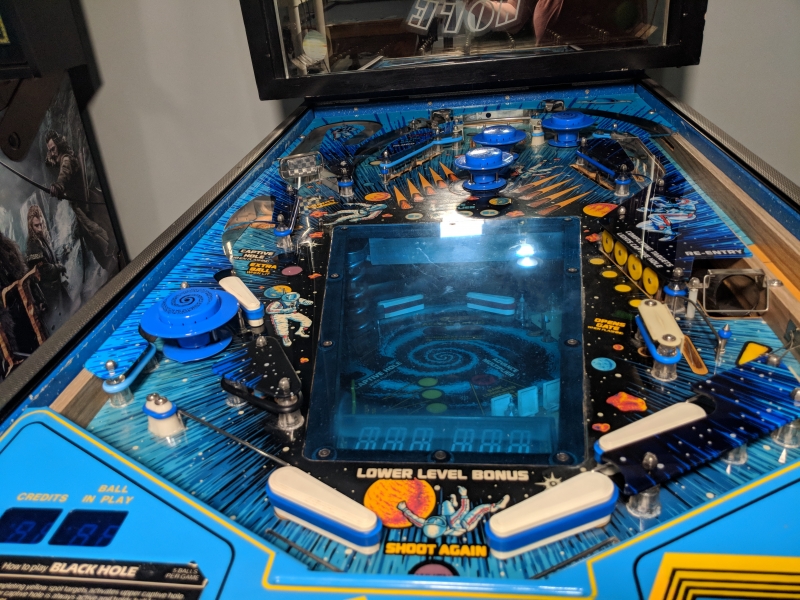

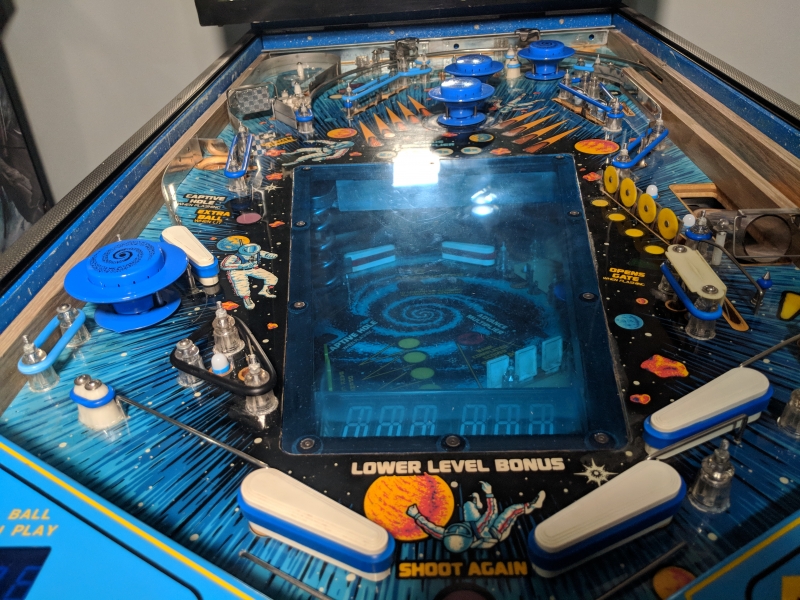

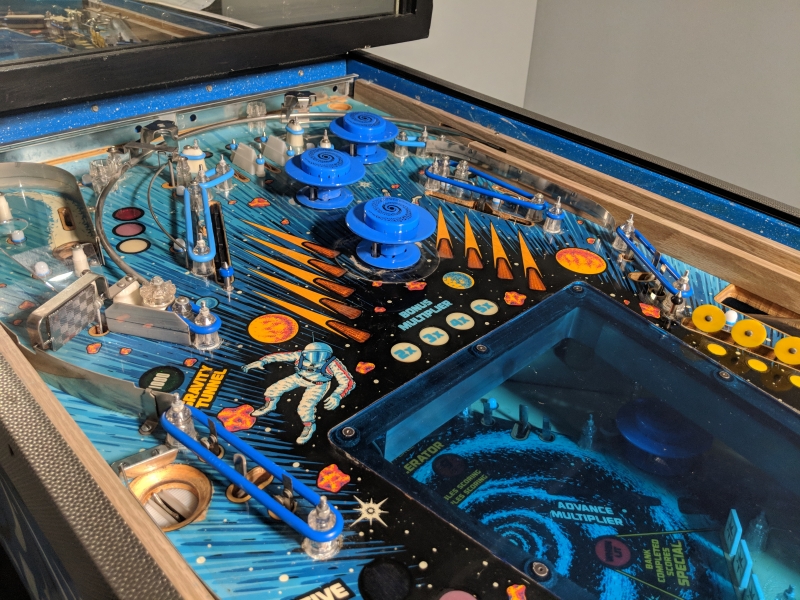

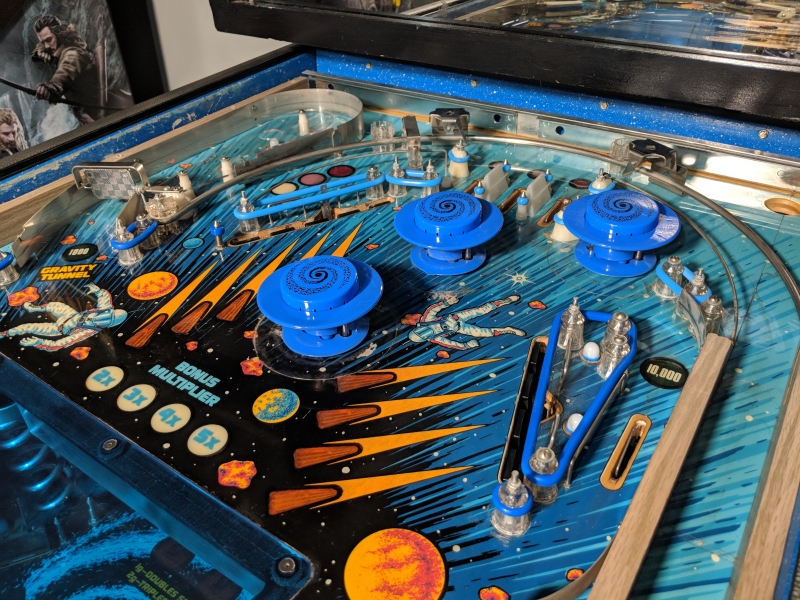

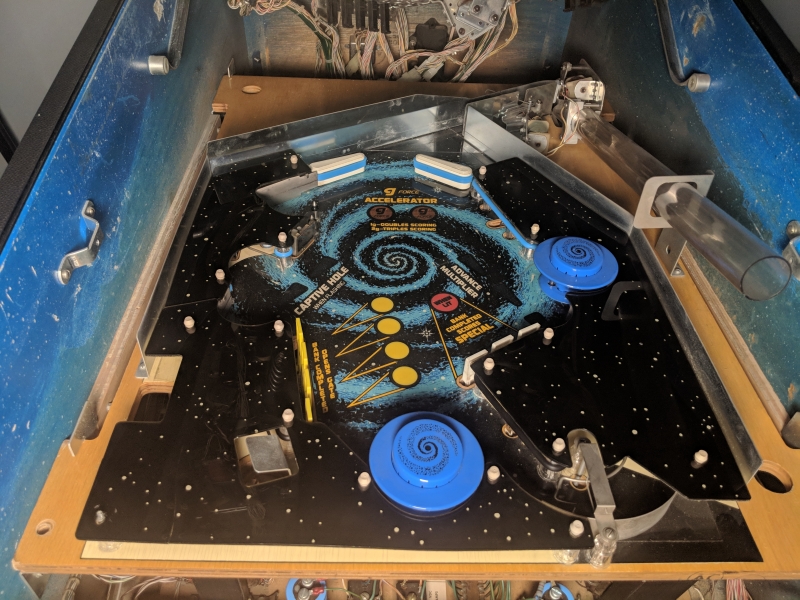

Color coordinated upper and lower playfields

Submitted by: Andrew B. Andrew B.
Submitted on: 2018-07-04 10:26:29 2018-07-04 10:26:29
View Full Kit

Rubber Rings - Shooter Tip
Black
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Black
Qty: 4
Rubber Rings - 3/8 Inch O.D.
Lt. Blue
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Lt. Blue
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Lt. Blue
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Blue
Qty: 1
Rubber Rings - 1 Inch I.D.
Blue
Qty: 1
Rubber Rings - 1 Inch I.D.
Lt. Blue
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Black
Qty: 1
Rubber Rings - 2 Inch I.D.
Black
Qty: 2
Rubber Rings - 2 Inch I.D.
Blue
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Blue
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Lt. Blue
Qty: 1
Rubber Rings - 3 Inch I.D.
Blue
Qty: 1
Rubber Rings - 3 Inch I.D.
Black
Qty: 1
Rubber Rings - 3 1/2 Inch I.D.
Lt. Blue
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Lt. Blue
Qty: 3
Rubber Rings - 7/16 Inch I.D.
Blue
Qty: 1
Rubber Rings - Flipper 3/8 Inch
Blue
Qty: 4
Rubber Rings - Flipper 3/8 Inch
Lt. Blue
Qty: 2
(1)

[Tested and Complete] (One user said this kit is missing rubbers, it was build from the manual other than the two substitutions mentioned below, it IS complete, they must have been shorted on their order) All blue set with 3 red flippers and 1 blue up top and glow below. Subbed 1-1/4" for the two 1" rubbers used on the lower part of the upper playfield as 1" is too tight.

Submitted by: Anonymous Anonymous
Submitted on: 2020-10-16 09:18:55 2020-10-16 09:18:55
View Full Kit

Rubber Rings - Flipper 3/8 Inch
Glow
Qty: 2
Rubber Rings - Flipper 3/8 Inch
Red
Qty: 3
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 9
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 8
Rubber Rings - 7/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 3/4 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 Inch I.D.
Blue
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Blue
Qty: 1
Rubber Rings - 2 Inch I.D.
Blue
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
Blue
Qty: 2
Rubber Rings - 3 Inch I.D.
Blue
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Blue
Qty: 1
Rubber Rings - Shooter Tip
Blue
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Blue
Qty: 2
Rubber Rings - Flipper 3/8 Inch
Blue
Qty: 1
(0)

Black Hole

Submitted by: Anonymous Anonymous
Submitted on: 2020-11-27 14:47:44 2020-11-27 14:47:44
View Full Kit

This kit doesn't have any photos.
Misc - Post Cap
Blue
Qty: 39
(0)

All dark blue rubbers

Submitted by: Anonymous Anonymous
Submitted on: 2022-07-21 20:41:05 2022-07-21 20:41:05
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Shooter Tip
Blue
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 4
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Blue
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Blue
Qty: 1
Rubber Rings - 1 Inch I.D.
Blue
Qty: 1
Rubber Rings - 1 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Blue
Qty: 1
Rubber Rings - 2 Inch I.D.
Blue
Qty: 2
Rubber Rings - 2 Inch I.D.
Blue
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Blue
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Blue
Qty: 1
Rubber Rings - 3 Inch I.D.
Blue
Qty: 1
Rubber Rings - 3 Inch I.D.
Blue
Qty: 1
Rubber Rings - 3 1/2 Inch I.D.
Blue
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Blue
Qty: 3
Rubber Rings - 7/16 Inch I.D.
Blue
Qty: 1
Rubber Rings - Flipper 3/8 Inch
Blue
Qty: 4
Rubber Rings - Flipper 3/8 Inch
Blue
Qty: 2
(0)

This is a mix of translucent and glow in the dark, using the Gottlied factory sizes.

Submitted by: Keith R. Keith R.
Submitted on: 2022-12-27 11:30:03 2022-12-27 11:30:03
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 8
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3 1/2 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Glow
Qty: 9
Rubber Rings - Flipper 3/8 Inch
Glow
Qty: 6
Rubber Rings - 3/8 Inch O.D.
Glow
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Translucent
Qty: 4
Rubber Rings - Shooter Tip
Glow
Qty: 1
