Pirates of the Caribbean Rubber Kits



Stern Pinball, Incorporated , July, 2006
4 Players

(0)

This game has a lot of rings in hidden spots behind or beneath play field features. I've specified that they be black, but you may prefer blue to match the upper playfield.

Submitted by: Doug S. Doug S.
Submitted on: 2015-07-01 12:23:26 2015-07-01 12:23:26
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Shooter Tip
Red
Qty: 1
Post Sleeves - Standard
Black
Qty: 7
Post Sleeves - Standard
Blue
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Blue
Qty: 1
Rubber Rings - 1 Inch I.D.
Black
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 6
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Blue
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 13
Rubber Rings - 2 1/2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 1 3/4 Inch I.D.
Grey
Qty: 1
Rubber Rings - 3/16 Inch I.D.
Grey
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Grey
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 2
(0)

Tried to get as close to the standard game colors and sizes as possible.

Submitted by: Anonymous Anonymous
Submitted on: 2016-04-05 07:52:22 2016-04-05 07:52:22
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 3/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Black
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 6
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 56
Rubber Rings - Flipper Standard
Black
Qty: 2
Rubber Rings - Shooter Tip
White
Qty: 1
Post Sleeves - Standard
Black
Qty: 9
(0)

Potc glow in the dark

Submitted by: Anonymous Anonymous
Submitted on: 2016-06-18 22:37:26 2016-06-18 22:37:26
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 1 3/4 Inch I.D.
Grey
Qty: 1
Misc - Post Cap
Glow
Qty: 7
Post Sleeves - Standard
Glow
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Glow
Qty: 1
Rubber Rings - 1 Inch I.D.
Glow
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Glow
Qty: 6
Rubber Rings - 3/16 Inch I.D.
Glow
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Glow
Qty: 5
Rubber Rings - 7/16 Inch O.D.
Glow
Qty: 15
Rubber Rings - 5/16 Inch I.D.
Glow
Qty: 4
Rubber Rings - Shooter Tip
Glow
Qty: 1
Misc - Rebound Rubber 1 1/4
Glow
Qty: 7
Rubber Rings - Flipper Standard
Glow
Qty: 2
(0)

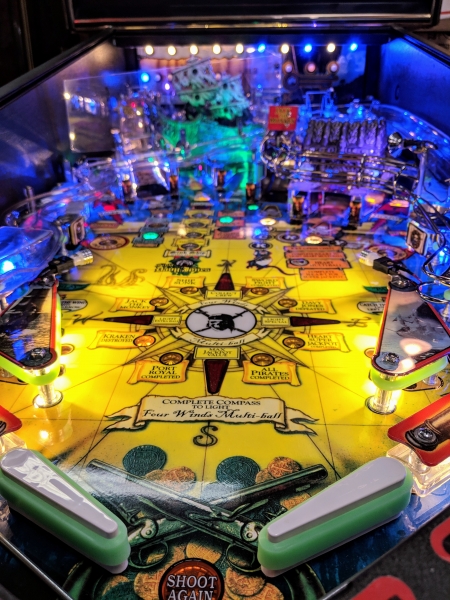

Glow in the Dark Kit as used on location by @epicpdx

Submitted by: Eddie B. Eddie B.
Submitted on: 2016-08-10 23:59:53 2016-08-10 23:59:53
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 1/2 Inch I.D.
Glow
Qty: 2
Rubber Rings - 1 3/4 Inch I.D.
Glow
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Glow
Qty: 1
Rubber Rings - 1 Inch I.D.
Glow
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Glow
Qty: 6
Rubber Rings - 5/16 Inch I.D.
Glow
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Glow
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Glow
Qty: 15
Rubber Rings - Flipper Standard
Glow
Qty: 2
Rubber Rings - Shooter Tip
Glow
Qty: 1
Post Sleeves - Standard
Glow
Qty: 9
(0)

POTC in Clear Competition Rubber, some color highlights here and there.

Submitted by: Craig S. Craig S.
Submitted on: 2017-08-01 07:12:29 2017-08-01 07:12:29
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 15
Rubber Rings - Flipper Standard
Black
Qty: 2
Rubber Rings - Shooter Tip
Red
Qty: 1
Post Sleeves - Stern Slim Tapered
Green
Qty: 9
(0)

Clear set without post sleeves, flipper rubbers and shooter tip.

Submitted by: Anonymous Anonymous
Submitted on: 2017-08-02 14:48:22 2017-08-02 14:48:22
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 15
(0)

This is a copy of the Kit by Eddie B. Just a couple of 3/16 rings extra and one less post needed for the machine I worked on with date AUG 05 2006 on it.

Submitted by: eric b. eric b.
Submitted on: 2019-02-28 09:57:42 2019-02-28 09:57:42
View Full Kit

Rubber Rings - 2 1/2 Inch I.D.
Glow
Qty: 2
Rubber Rings - 1 3/4 Inch I.D.
Glow
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Glow
Qty: 1
Rubber Rings - 1 Inch I.D.
Glow
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Glow
Qty: 6
Rubber Rings - 5/16 Inch I.D.
Glow
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Glow
Qty: 15
Rubber Rings - Flipper Standard
Glow
Qty: 2
Rubber Rings - Shooter Tip
Glow
Qty: 1
Rubber Rings - 3/16 Inch I.D.
Glow
Qty: 8
Post Sleeves - Standard
Glow
Qty: 8
(0)

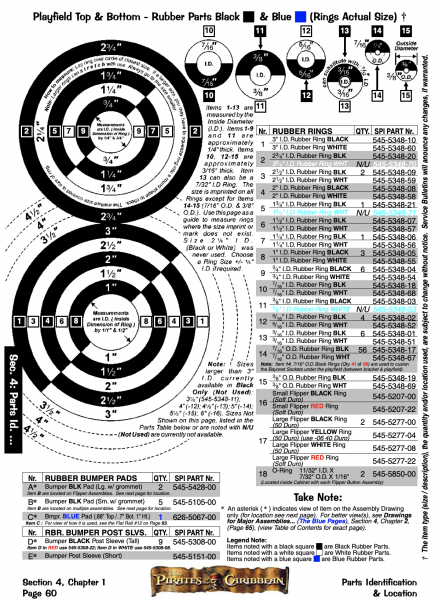

All Black kit constructed from the Stern Manual. If you want to replace all the rubbers used as isolators under the playfield for the lamp sockets add (41) 7/16".

Submitted by: Austin K. Austin K.
Submitted on: 2020-05-01 08:56:56 2020-05-01 08:56:56
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 3/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Black
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 6
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 15
Rubber Rings - Flipper Standard
Black
Qty: 2
Rubber Rings - Shooter Tip
Black
Qty: 1
Post Sleeves - Standard
Black
Qty: 9
(0)

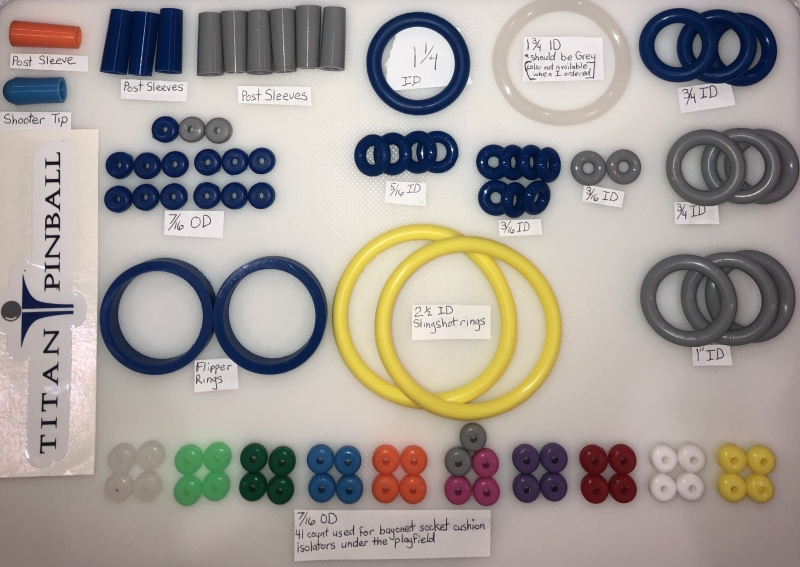

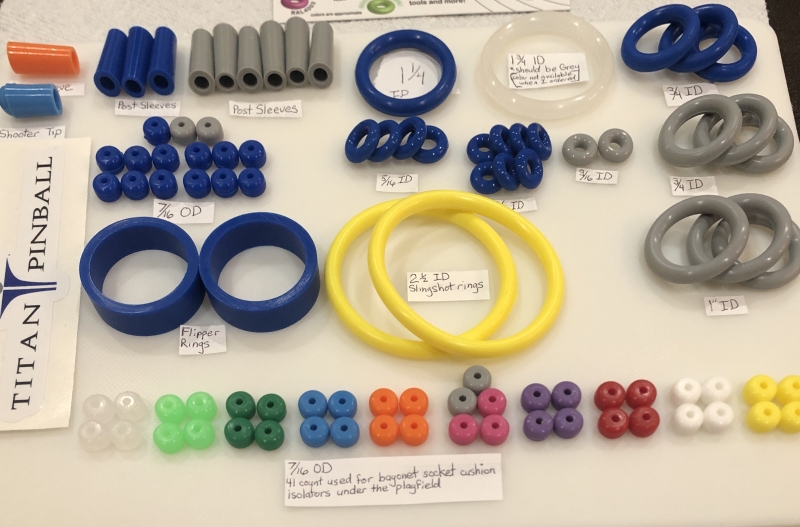

Full kit including the 41 bayonet socket cushion isolators. Mostly blue to match primary game color and theme of the blue sea. Colors chosen to compliment on slings (yellow) and upper playfield areas (blue and grey). I tried to account for all posts in the game. NOTE: the 41 bayonet socket cushion isolators are spread across the variety of colors to get exposure to all of the colors Titan offers; but also give you creative freedom to organize and group colors under the playfield.

Submitted by: TOM S. TOM S.
Submitted on: 2020-11-30 22:39:05 2020-11-30 22:39:05
View Full Kit

Rubber Rings - 2 1/2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 1 3/4 Inch I.D.
Grey
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Blue
Qty: 1
Rubber Rings - 1 Inch I.D.
Grey
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Blue
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Blue
Qty: 7
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 13
Rubber Rings - Flipper Standard
Blue
Qty: 2
Post Sleeves - Stern Slim Tapered
Blue
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Grey
Qty: 4
Rubber Rings - 3/4 Inch I.D.
Grey
Qty: 3
Rubber Rings - 3/16 Inch I.D.
Grey
Qty: 2
Post Sleeves - Stern Slim Tapered
Grey
Qty: 6
Post Sleeves - Stern Slim Tapered
Orange
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Glow
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Green
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Lt. Blue
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Orange
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Pink
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Purple
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Red
Qty: 4
Rubber Rings - 7/16 Inch O.D.
White
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Yellow
Qty: 4
(0)

Ignore this kit - I made modifications based on rubbers I already had (so some are missing) and I added a bunch of additional stuff I just wanted to have on hand

Submitted by: Anonymous Anonymous
Submitted on: 2022-01-12 08:45:49 2022-01-12 08:45:49
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 1/2 Inch I.D.
Red
Qty: 2
Rubber Rings - 1 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 15
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 41
Rubber Rings - Low Bounce Standard Flipper
Red
Qty: 2
Rubber Rings - Low Bounce Standard Flipper
Blue
Qty: 2
Rubber Rings - Low Bounce Standard Flipper
Black
Qty: 4
Rubber Rings - Shooter Tip
Red
Qty: 1
Post Sleeves - Stern Slim Tapered
Blue
Qty: 9
(0)

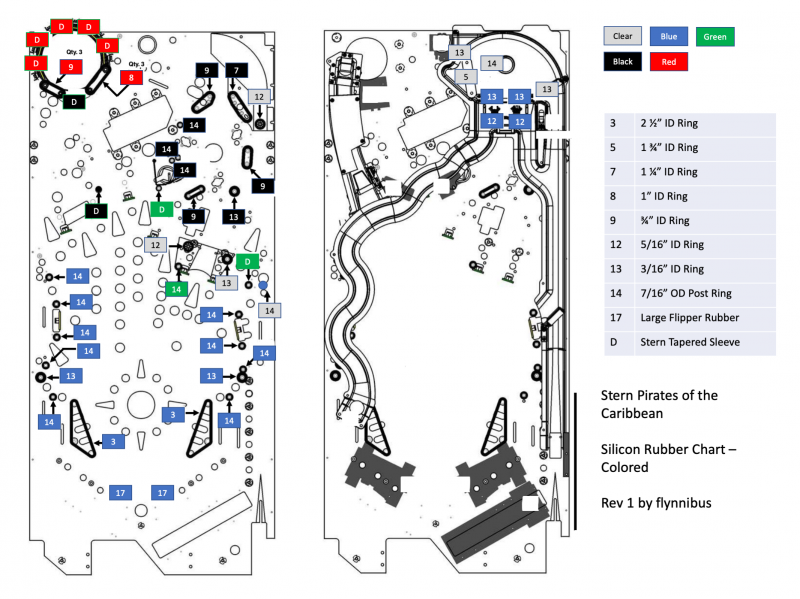

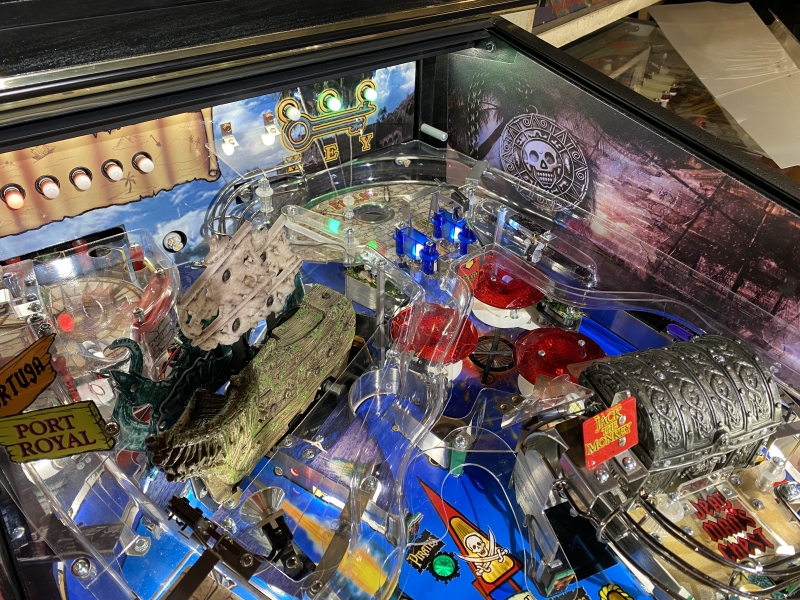

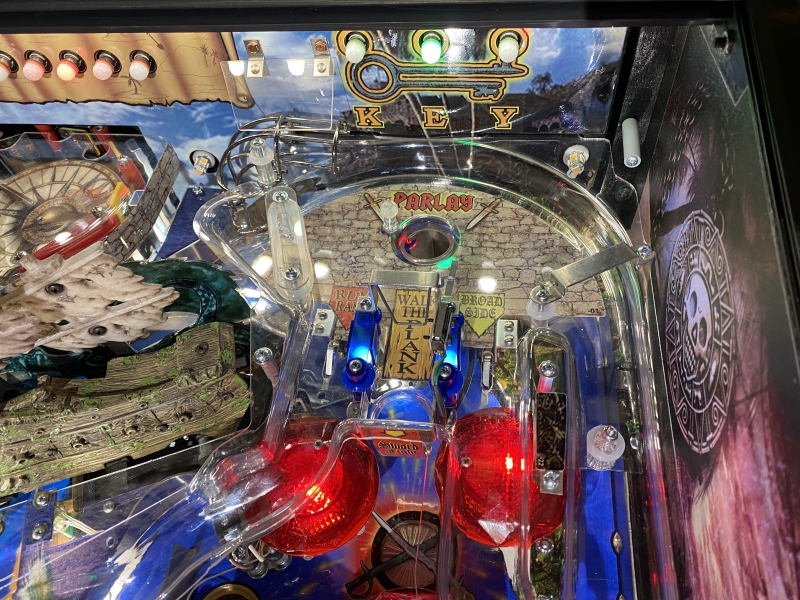

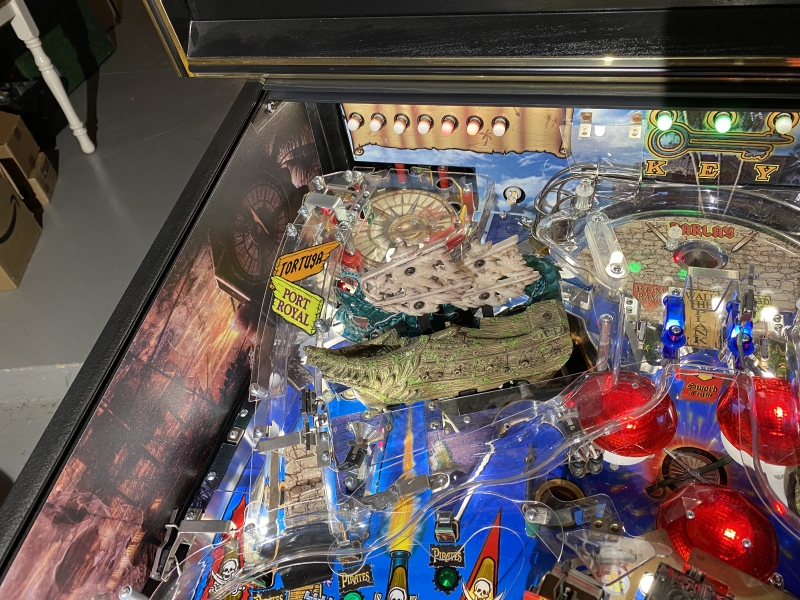

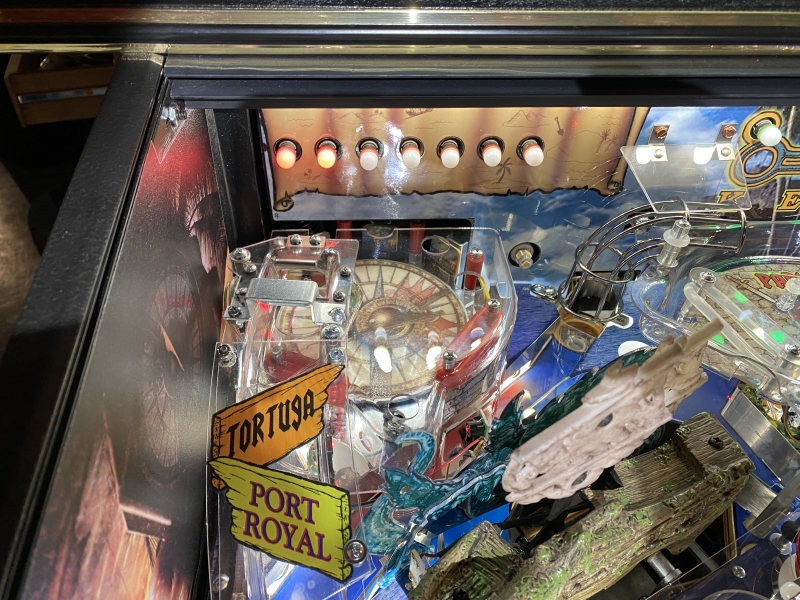

This is a verified color matched rubber kit - all photos are of the actual installation. Make sure you use the included chart for installation. Keyed to match the Stern Manual. The premise of the color choices was: - Use blue at the bottom to match the water graphics - Match the green pirate targets in those areas - Use red in the spinning disc - Use clear for any ball trap plastics - Use black in hidden areas around the pops The kit does not include the blue guide or ramp stoppers titan doesn't sell - but those can usually be cleaned vs replaced. No isolation rubbers for the under playfield screws are included - there is no need to replace those.

Submitted by: steve k. steve k.
Submitted on: 2022-01-16 19:52:57 2022-01-16 19:52:57
View Full Kit

Rubber Rings - 2 1/2 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Red
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Red
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 1
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Green
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 9
Rubber Rings - Flipper Standard
Blue
Qty: 2
Post Sleeves - Stern Slim Tapered
Red
Qty: 5
Post Sleeves - Stern Slim Tapered
Blue
Qty: 2
Post Sleeves - Stern Slim Tapered
Black
Qty: 2
Rubber Rings - Shooter Tip
Black
Qty: 1
(0)

But those that don’t like to see their rings as much, a clear choice! I do like the post sleeves to be yellow though.

Submitted by: Justin M. Justin M.
Submitted on: 2023-02-12 10:22:22 2023-02-12 10:22:22
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 15
Rubber Rings - Flipper Standard
Red
Qty: 2
Rubber Rings - Shooter Tip
Translucent
Qty: 1
Post Sleeves - Standard
Yellow
Qty: 9
(0)

Pirates kit

Submitted by: Anonymous Anonymous
Submitted on: 2023-07-26 07:34:23 2023-07-26 07:34:23
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 1/2 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Red
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Red
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 1
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Green
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 9
Rubber Rings - Flipper Standard
Blue
Qty: 2
Post Sleeves - Stern Slim Tapered
Red
Qty: 5
Post Sleeves - Stern Slim Tapered
Blue
Qty: 2
Post Sleeves - Stern Slim Tapered
Black
Qty: 2
Rubber Rings - Shooter Tip
Black
Qty: 1
(0)

Copy of Steve K's kit except blacks are swapped with clears, and slings are also clear to allow a little light more through

Submitted by: Anonymous Anonymous
Submitted on: 2023-11-26 17:32:45 2023-11-26 17:32:45
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 Inch I.D.
Red
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Red
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Blue
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Green
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 9
Rubber Rings - Flipper Standard
Blue
Qty: 2
Post Sleeves - Stern Slim Tapered
Red
Qty: 5
Post Sleeves - Stern Slim Tapered
Blue
Qty: 2
Post Sleeves - Stern Slim Tapered
Translucent
Qty: 2
Rubber Rings - Shooter Tip
Blue
Qty: 1
(0)

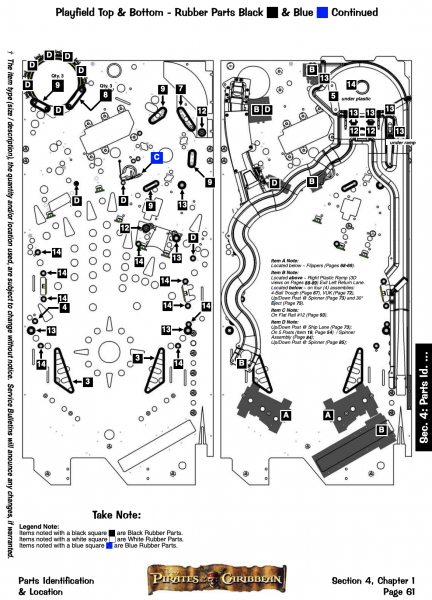

Copy of the all-black factory original color kit from Austin K with some corrections, and includes the bulb socket insulators for under the playfield. The manual shows a count of 6 3/16" rings, but the diagram refers to 9 of them, so I adjusted that qty. Also changed 1 post sleeve to a Stern slim tapered, to go with the under playfield post in the ship/Kraken lane that pops up via solenoid. The regular post sleeve rubber is too thick and doesn't slide into the coil sleeve there, but the slim stern tapered one does.

Submitted by: Adam T. Adam T.
Submitted on: 2023-12-07 13:24:44 2023-12-07 13:24:44
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 3/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Black
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 6
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 15
Rubber Rings - Flipper Standard
Black
Qty: 2
Rubber Rings - Shooter Tip
Black
Qty: 1
Post Sleeves - Standard
Black
Qty: 9
Post Sleeves - Stern Slim Tapered
Black
Qty: 1
(0)

All Yellow

Submitted by: Anonymous Anonymous
Submitted on: 2024-01-30 20:45:49 2024-01-30 20:45:49
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 1/2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 1 3/4 Inch I.D.
Yellow
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Yellow
Qty: 1
Rubber Rings - 1 Inch I.D.
Yellow
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Yellow
Qty: 6
Rubber Rings - 5/16 Inch I.D.
Yellow
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Yellow
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Yellow
Qty: 15
Rubber Rings - Flipper Standard
Yellow
Qty: 2
Rubber Rings - Shooter Tip
Yellow
Qty: 1
Post Sleeves - Standard
Yellow
Qty: 9
Post Sleeves - Stern Slim Tapered
Yellow
Qty: 1

Powered By Awesome Pinball Players Like You!
Made with love by 86Pixels
Titan Pinball © 2024
