Red & Ted's Road Show Rubber Kits



Williams Electronics Games, Incorporated, a subsidiary of WMS Ind., Incorporated , October, 1994
4 Players

(1)

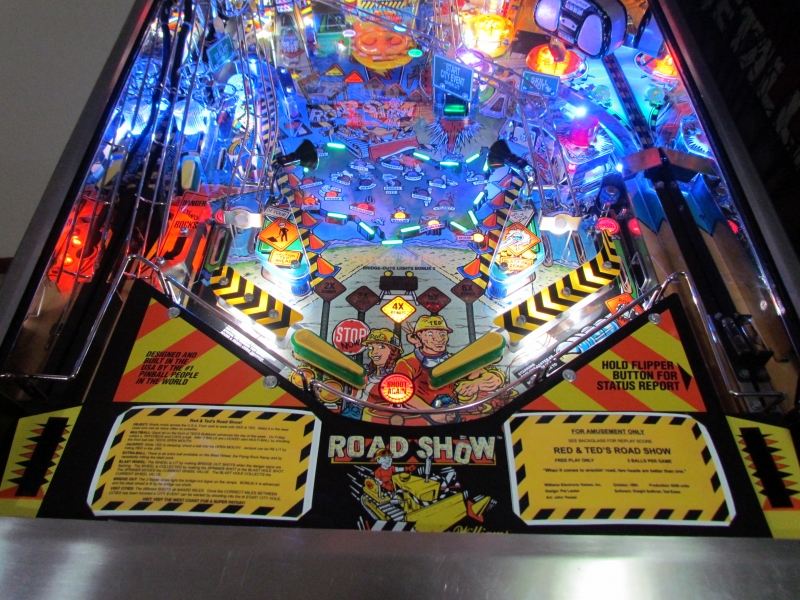

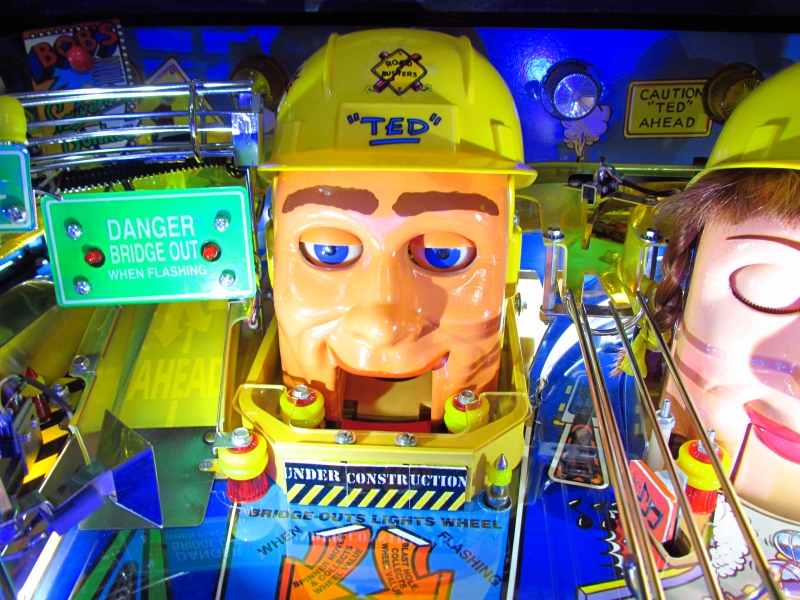

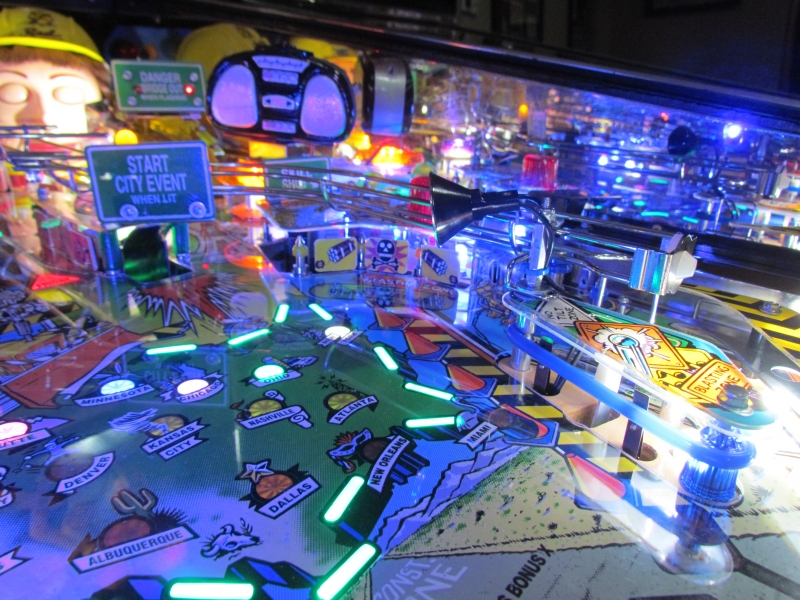

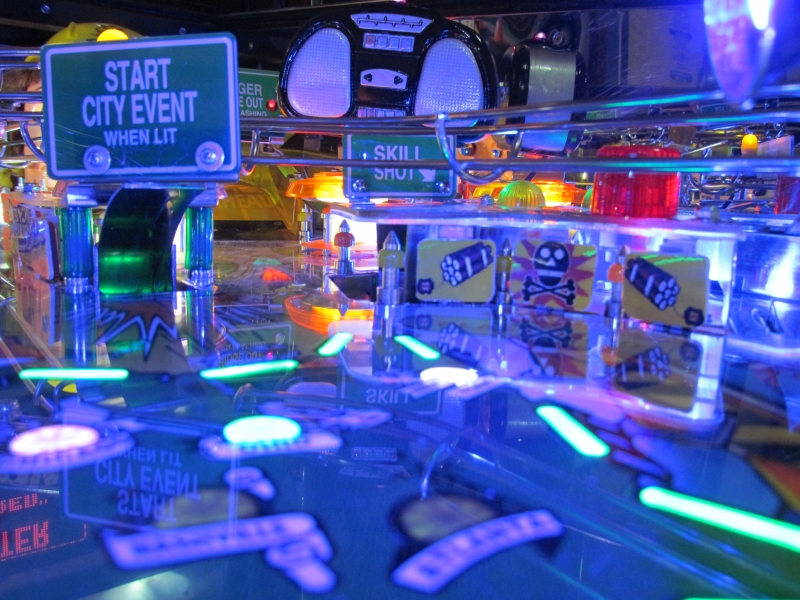

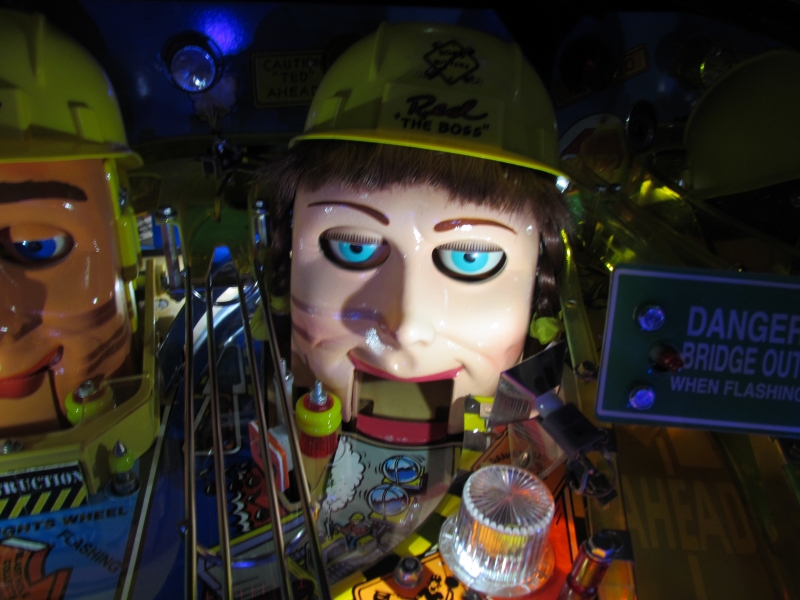

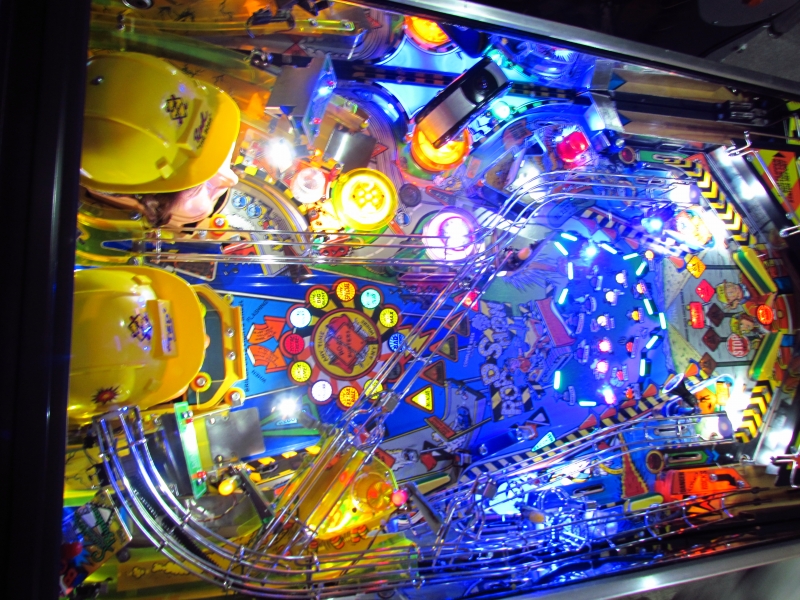

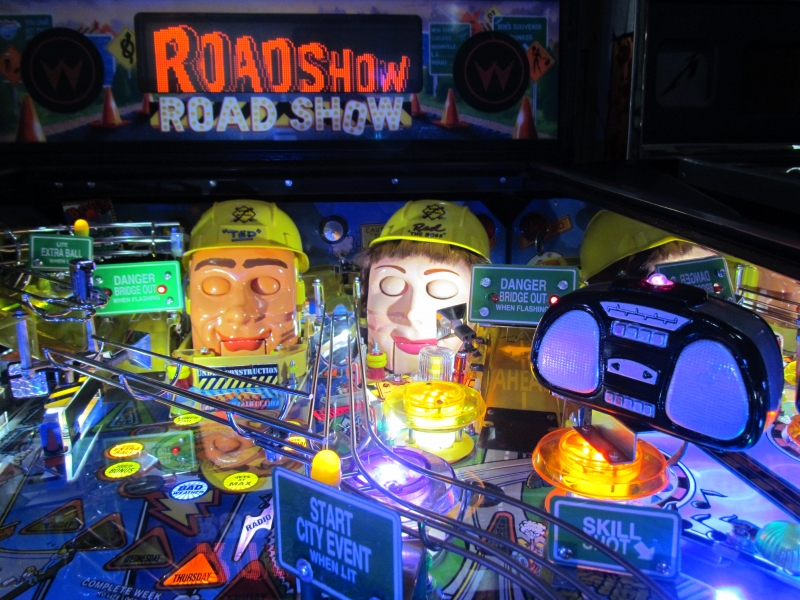

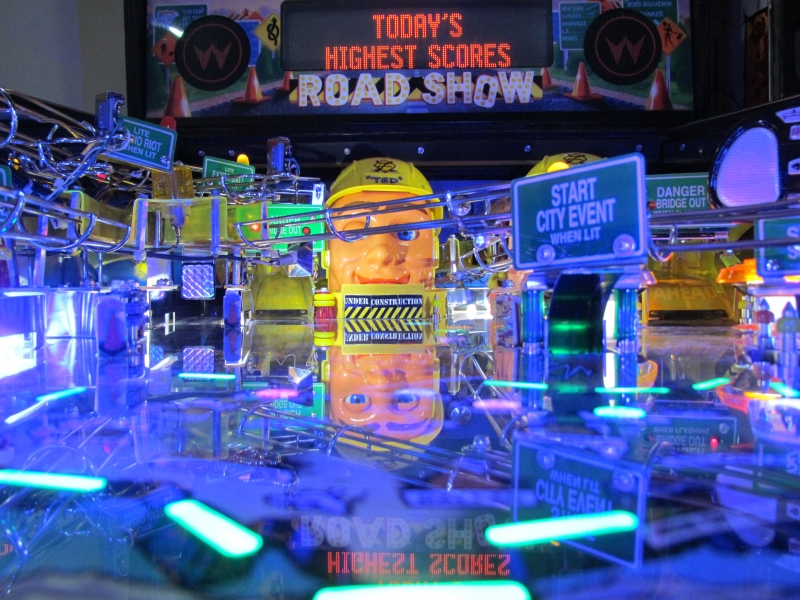

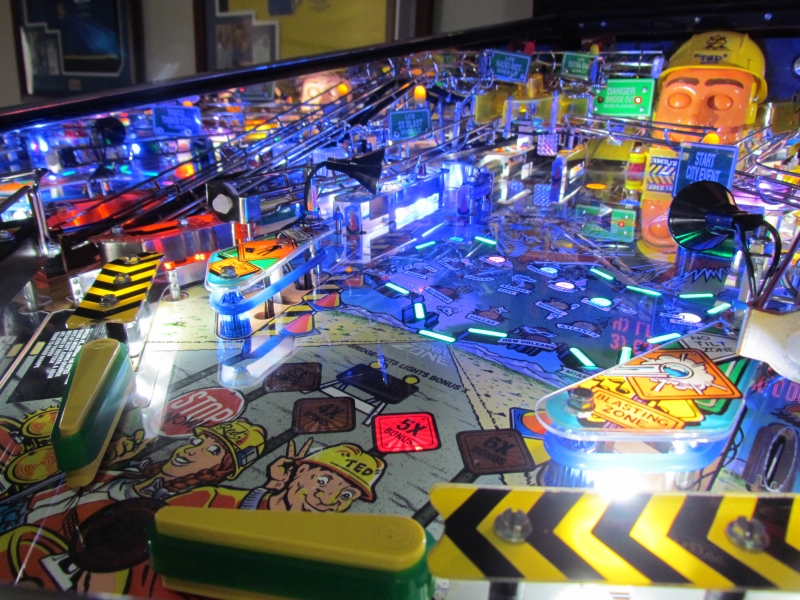

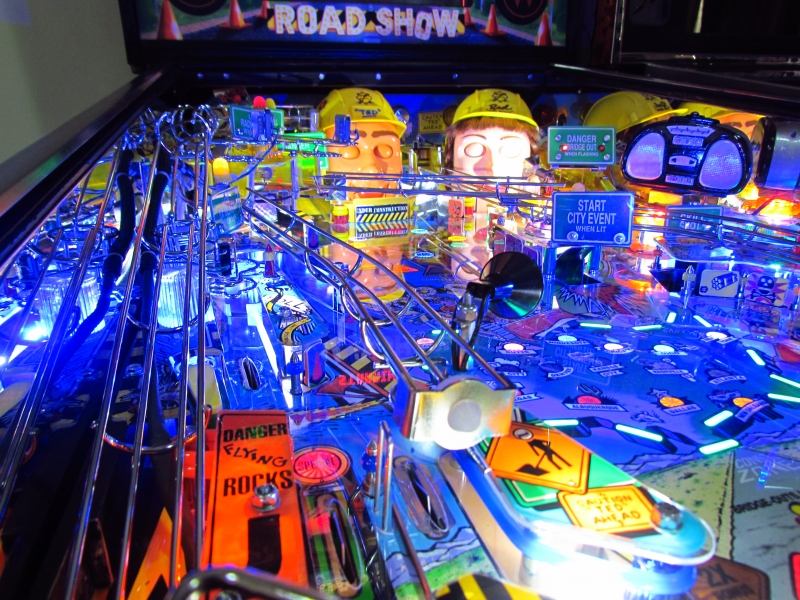

Custom colour rubber kit for Roadshow. Took ages to create this list as I couldn't find much information on it. You may also want to purchase new coloured posts to match the kit. You will need Double star posts 4 x Red 1 x Green & 1 x Orange Star posts 2 x Blue 1"Mini post 2 x Red 1 1/4"Narrow post 2 x Red Made my RS look and play heaps better, check out the pictures.

Submitted by: Scott W. Scott W.
Submitted on: 2016-05-17 21:53:07 2016-05-17 21:53:07
View Full Kit

Rubber Rings - 3/4 Inch I.D.
Orange
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 Inch I.D.
Green
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Blue
Qty: 2
Post Sleeves - Standard
Green
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Green
Qty: 3
Rubber Rings - 3/8 Inch O.D.
Orange
Qty: 3
Rubber Rings - 3/8 Inch O.D.
Yellow
Qty: 8
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 7
Rubber Rings - 3/8 Inch O.D.
Red
Qty: 3
Rubber Rings - Flipper Mini
Green
Qty: 1
Rubber Rings - Flipper Standard
Green
Qty: 2
Rubber Rings - Shooter Tip
Glow
Qty: 2
(0)

Close to factory

Submitted by: Anonymous Anonymous
Submitted on: 2018-03-11 11:07:30 2018-03-11 11:07:30
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Shooter Tip
White
Qty: 2
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - Flipper Mini
Red
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Post Sleeves - Standard
Black
Qty: 2
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 3/4 Inch I.D.
White
Qty: 2
Rubber Rings - 5/16 Inch I.D.
White
Qty: 10
Rubber Rings - 3/8 Inch O.D.
White
Qty: 16
(0)

Road show rubber kit done in Lite Blue

Submitted by: Anonymous Anonymous
Submitted on: 2018-08-12 08:52:08 2018-08-12 08:52:08
View Full Kit

Rubber Rings - Shooter Tip
Lt. Blue
Qty: 2
Rubber Rings - Flipper Standard
Lt. Blue
Qty: 3
Rubber Rings - Flipper Mini
Lt. Blue
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Lt. Blue
Qty: 2
Post Sleeves - Standard
Lt. Blue
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Lt. Blue
Qty: 2
Rubber Rings - 1 Inch I.D.
Lt. Blue
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Lt. Blue
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Lt. Blue
Qty: 10
Rubber Rings - 3/8 Inch O.D.
Lt. Blue
Qty: 24
(0)

W yellow 5/16 added Added flipper

Submitted by: Anonymous Anonymous
Submitted on: 2018-09-04 15:07:41 2018-09-04 15:07:41
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Orange
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 Inch I.D.
Green
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Blue
Qty: 2
Post Sleeves - Standard
Green
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Green
Qty: 3
Rubber Rings - 3/8 Inch O.D.
Orange
Qty: 3
Rubber Rings - 3/8 Inch O.D.
Yellow
Qty: 8
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 7
Rubber Rings - 3/8 Inch O.D.
Red
Qty: 3
Rubber Rings - Flipper Mini
Green
Qty: 1
Rubber Rings - Flipper Standard
Green
Qty: 2
Rubber Rings - Shooter Tip
Glow
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Yellow
Qty: 4
(0)

Standard White kit with yellow post sleeves and orange flippers

Submitted by: Anonymous Anonymous
Submitted on: 2019-04-17 09:34:38 2019-04-17 09:34:38
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 5/16 Inch I.D.
White
Qty: 10
Rubber Rings - 1 Inch I.D.
White
Qty: 2
Post Sleeves - Standard
Yellow
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 3/8 Inch O.D.
White
Qty: 24
Rubber Rings - Shooter Tip
Translucent
Qty: 2
Rubber Rings - Flipper Standard
Orange
Qty: 3
Rubber Rings - Flipper Mini
Orange
Qty: 1
(1)

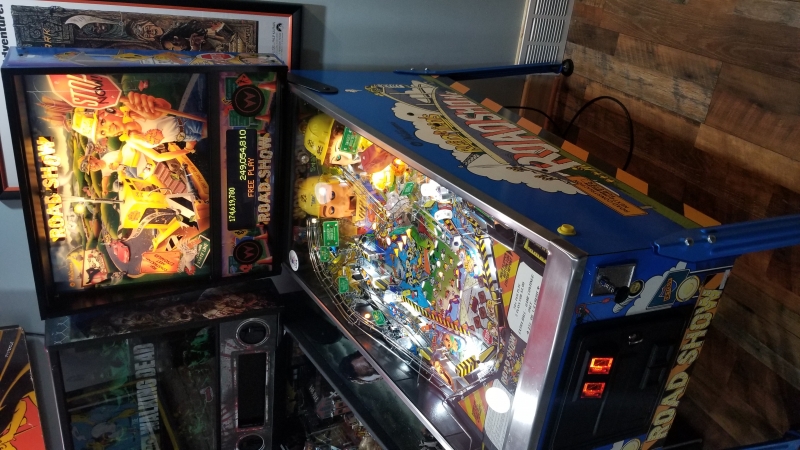

Could not find a list for these in the manual. So I used ipdb parts text. Will post pics after install

Submitted by: Anonymous Anonymous
Submitted on: 2020-04-09 18:43:16 2020-04-09 18:43:16
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 1 1/4 Inch I.D.
Orange
Qty: 1
Rubber Rings - 1 Inch I.D.
Orange
Qty: 1
Rubber Rings - 1 Inch I.D.
Yellow
Qty: 1
Rubber Rings - 2 Inch I.D.
Yellow
Qty: 3
Rubber Rings - 2 Inch I.D.
Orange
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Orange
Qty: 4
Rubber Rings - 7/16 Inch I.D.
Orange
Qty: 2
Rubber Rings - Flipper Mini
Orange
Qty: 1
Rubber Rings - Flipper Standard
Orange
Qty: 3
Rubber Rings - Shooter Tip
Orange
Qty: 2
Post Sleeves - Standard
Orange
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Orange
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Orange
Qty: 5
Rubber Rings - 3/4 Inch I.D.
Yellow
Qty: 5
(0)

Same as the first custom kit that shows up, with 8 - 5/16" yellow rings by Red and Ted, 3 standard flippers, and black shooter tips. I'll post pics when completed.

Submitted by: Steven D. Steven D.
Submitted on: 2022-11-27 03:36:29 2022-11-27 03:36:29
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Orange
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 Inch I.D.
Green
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Blue
Qty: 2
Post Sleeves - Standard
Green
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Green
Qty: 3
Rubber Rings - 3/8 Inch O.D.
Orange
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Yellow
Qty: 8
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 7
Rubber Rings - 3/8 Inch O.D.
Red
Qty: 3
Rubber Rings - Flipper Mini
Green
Qty: 1
Rubber Rings - Flipper Standard
Green
Qty: 3
(0)

all clear with orange flippers and orange posts (some extras)

Submitted by: Anonymous Anonymous
Submitted on: 2024-07-02 14:03:49 2024-07-02 14:03:49
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Shooter Tip
Translucent
Qty: 2
Rubber Rings - Flipper Standard
Orange
Qty: 3
Rubber Rings - Flipper Mini
Orange
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 25
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 10
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
(0)

Roadshow beatdown kit

Submitted by: Anonymous Anonymous
Submitted on: 2024-07-24 17:46:24 2024-07-24 17:46:24
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Shooter Tip
Orange
Qty: 2
Rubber Rings - Flipper Standard
Yellow
Qty: 3
Rubber Rings - Flipper Mini
Yellow
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Yellow
Qty: 25
Rubber Rings - 5/16 Inch I.D.
Yellow
Qty: 10
Rubber Rings - 3/4 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 1 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Yellow
Qty: 2
