Rock Encore Rubber Kits



Premier Technology , April, 1986
4 Players

(0)

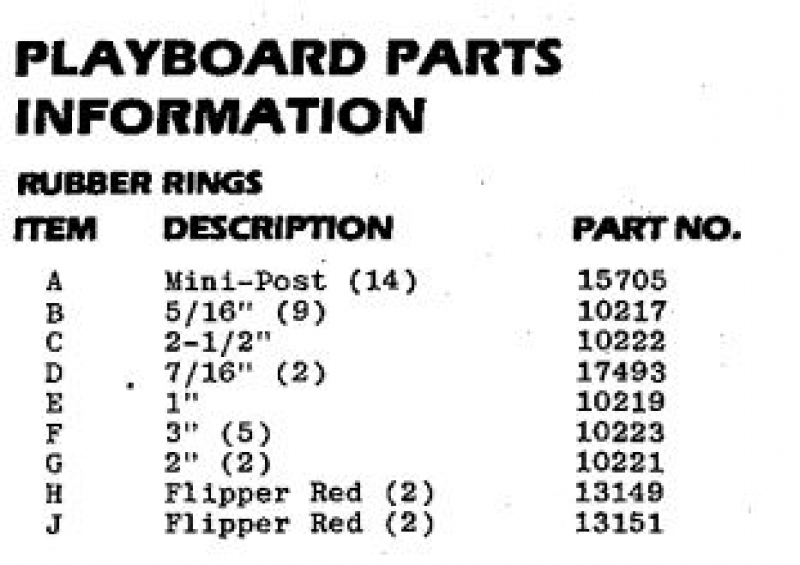

This is a rubber kit for a Gottlieb Rock or Rock Encore. Based on original manual.

Submitted by: James H. James H.
Submitted on: 2022-01-29 09:00:51 2022-01-29 09:00:51
View Full Kit

Misc - Post Cap
White
Qty: 14
Rubber Rings - 5/16 Inch I.D.
White
Qty: 9
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 7/16 Inch I.D.
White
Qty: 2
Rubber Rings - 1 Inch I.D.
White
Qty: 1
Rubber Rings - 3 Inch I.D.
White
Qty: 5
Rubber Rings - 2 Inch I.D.
White
Qty: 2
Rubber Rings - Flipper Standard
Black
Qty: 2
Rubber Rings - Flipper Mini
Black
Qty: 2
(0)

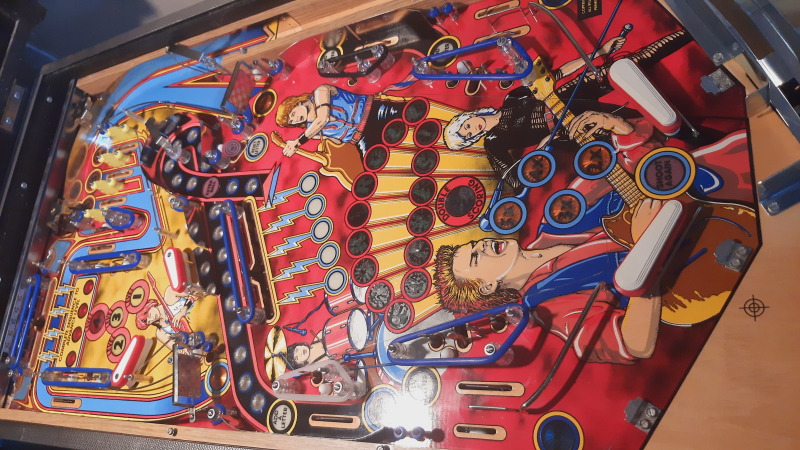

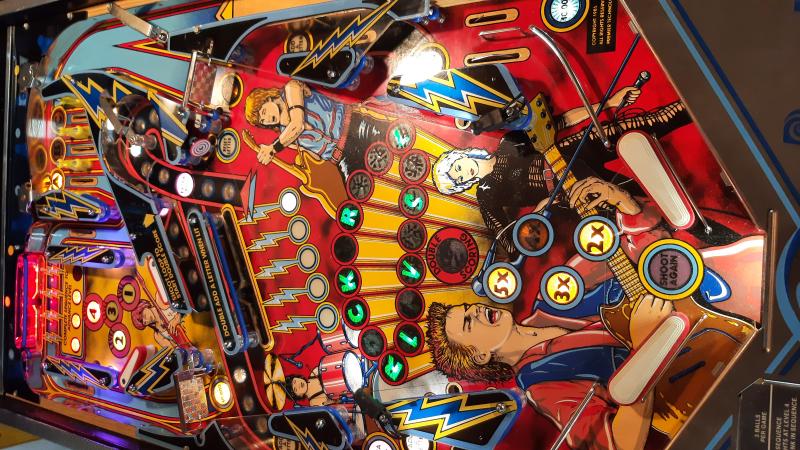

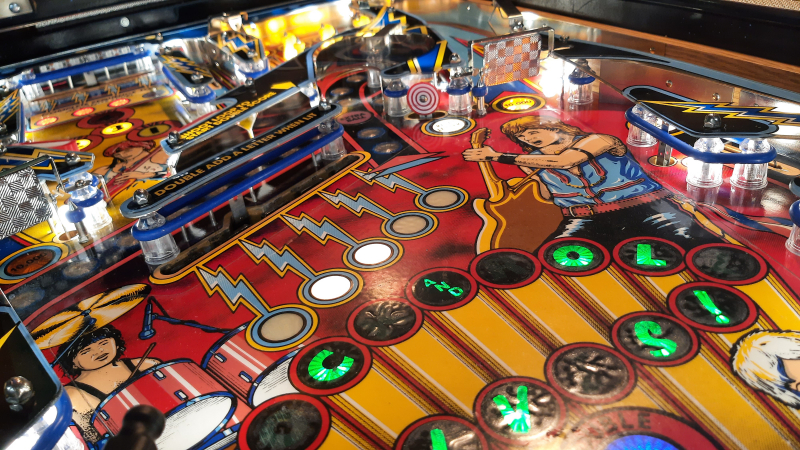

[Tested and Complete] Made using a test kit of Titans as silicone stretches differently from traditional rubber, a couple of sizes vary from the manual for a better fit. There is no rubber intended for the middle of the loop, (it plays better without) but you can add another 5/16" if you want it. Installation Guide: (5) 2-3/4" Flanking the upper PF, Slings, and lower drop bank | (1) 2-1/2" Upper drop bank | (1) 1-1/4" Left of top lanes | (2) 1-3/4" Above slings | (2) 7/16" ID Upper left of top lanes | (9) 5/16" Star posts | (14) 7/16 " OD Spike posts, Yellow used to secure top lane plastics. (Pictures show an error, this is corrected in the final kit)

Submitted by: Anonymous Anonymous
Submitted on: 2023-02-21 16:53:29 2023-02-21 16:53:29
View Full Kit

Rubber Rings - 2 3/4 Inch I.D.
Blue
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
Blue
Qty: 1
Rubber Rings - 1 3/4 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Blue
Qty: 1
Rubber Rings - 7/16 Inch I.D.
Blue
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 9
Rubber Rings - 7/16 Inch O.D.
Blue
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Yellow
Qty: 8
Rubber Rings - Shooter Tip
Red
Qty: 1
Rubber Rings - Flipper 3/8 Inch
Red
Qty: 2
Rubber Rings - Flipper Beaded
Red
Qty: 2
