Star Trek: The Next Generation Rubber Kits



Williams Electronics Games, Incorporated, a subsidiary of WMS Ind., Incorporated , November, 1993
4 Players , 6 Balls

(0)

i have included a mini post that i slide over the right outlane gromet to allow a chance at nudging a slow moving ball. omit if you have cheater lanes or if you are a purist.

Submitted by: Craig C. Craig C.
Submitted on: 2015-05-29 09:21:49 2015-05-29 09:21:49
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Grey
Qty: 3
Rubber Rings - 4 Inch I.D.
Grey
Qty: 2
Post Sleeves - Standard
Grey
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Grey
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Grey
Qty: 1
Rubber Rings - 3/16 Inch I.D.
Grey
Qty: 5
Post Sleeves - Standard
Grey
Qty: 16
(0)

Based on what's listed in the Operations Manual (November 1993) on the Rubber Parts Locations page. The quantities were verified to match what's on my playfield. This kit does not include any rubbers on the clear plastic posts located above the playfield near the upper right flipper and left spinner switch. The ball rarely contacts them, and they are not listed on the page with the regular playfield rubbers, so not included here. 1x 23-6694-5 Black Rubber Ring 3/4" (above and to the left of the top lanes) 3x 23-6694-6 Black Rubber Ring 1" (1 above each of the top 2 jet bumpers, 1 on right outlane) 2x 23-6694-7 Black Rubber Ring 1-1/4" (both on posts to left of Beta ramp, stacked) 5x 23-6641 Black Rubber Ring (top lanes) 1x 23-6552 Yellow Rubber Bumper Sleeve (left post at Delta ramp entrance) 15x 23-6556 Black Rubber Bumper Sleeve (4 by lower stand-up targets, 3 near Command Decision hole, 2 by Alpha entrance, 3 around Q's target, 1 to left of Beta entrance, 1 under right jet bumper, 1 hidden near main Borg lock hole) 2x 23-6694-13 Black Rubber Ring 4" (2 slingshots) 3x 23-6695 Black Flipper Rubber Rings

Submitted by: John S. John S.
Submitted on: 2015-09-10 06:35:41 2015-09-10 06:35:41
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Black
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 5
Post Sleeves - Standard
Yellow
Qty: 1
Post Sleeves - Standard
Black
Qty: 15
Rubber Rings - 4 Inch I.D.
Black
Qty: 2
Rubber Rings - Flipper Standard
Black
Qty: 3
(0)

Sttng

Submitted by: Anonymous Anonymous
Submitted on: 2016-03-21 12:56:25 2016-03-21 12:56:25
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Black
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 5
Post Sleeves - Standard
Yellow
Qty: 1
Post Sleeves - Standard
Black
Qty: 15
Rubber Rings - 4 Inch I.D.
Black
Qty: 2
Rubber Rings - Flipper Standard
Black
Qty: 3
(0)

STTNG with color matched rubbers for areas.

Submitted by: Anonymous Anonymous
Submitted on: 2017-09-24 00:06:20 2017-09-24 00:06:20
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Black
Qty: 3
Post Sleeves - Standard
Yellow
Qty: 1
Rubber Rings - 4 Inch I.D.
Purple
Qty: 2
Post Sleeves - Standard
Purple
Qty: 15
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - 3/16 Inch I.D.
Red
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Purple
Qty: 2
(0)

blue

Submitted by: Anonymous Anonymous
Submitted on: 2017-12-08 15:04:39 2017-12-08 15:04:39
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Yellow
Qty: 1
Rubber Rings - 4 Inch I.D.
Purple
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Red
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Purple
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Blue
Qty: 1
Post Sleeves - Standard
Blue
Qty: 15
Rubber Rings - 1 Inch I.D.
Blue
Qty: 3
Rubber Rings - Flipper Standard
Blue
Qty: 3
(0)

All purple, from my recent order

Submitted by: Anonymous Anonymous
Submitted on: 2018-02-06 09:57:21 2018-02-06 09:57:21
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 4 Inch I.D.
Purple
Qty: 2
Post Sleeves - Standard
Purple
Qty: 15
Rubber Rings - 1 1/4 Inch I.D.
Purple
Qty: 2
Post Sleeves - Standard
Purple
Qty: 2
Rubber Rings - 1 Inch I.D.
Purple
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Purple
Qty: 1
Rubber Rings - Flipper Standard
Purple
Qty: 3
Rubber Rings - 3/16 Inch I.D.
Purple
Qty: 5
(0)

Clear and Purple

Submitted by: Anonymous Anonymous
Submitted on: 2018-02-06 11:32:08 2018-02-06 11:32:08
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 5
Post Sleeves - Standard
Translucent
Qty: 16
Rubber Rings - 4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - Flipper Standard
Purple
Qty: 3
(0)

Kit with 2 options. Original all black with 1 yellow sleeve, or a mix of different color options including purple, black, yellow, and light blue. Note: This is 2 kits worth of rubbers to provide multiple color options and have back up rubbers.

Submitted by: Anonymous Anonymous
Submitted on: 2018-08-11 13:10:58 2018-08-11 13:10:58
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Black
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 5
Post Sleeves - Standard
Yellow
Qty: 1
Post Sleeves - Standard
Black
Qty: 15
Rubber Rings - 4 Inch I.D.
Black
Qty: 2
Rubber Rings - Flipper Standard
Black
Qty: 3
Post Sleeves - Standard
Purple
Qty: 10
Post Sleeves - Standard
Yellow
Qty: 4
Rubber Rings - 4 Inch I.D.
Lt. Blue
Qty: 2
Rubber Rings - Flipper Standard
Lt. Blue
Qty: 2
Rubber Rings - Flipper Standard
Purple
Qty: 1
Rubber Rings - Flipper Standard
Blue
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Purple
Qty: 1
Rubber Rings - 1 Inch I.D.
Purple
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
Purple
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Purple
Qty: 5
(0)

multi

Submitted by: Anonymous Anonymous
Submitted on: 2018-11-23 10:40:59 2018-11-23 10:40:59
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Black
Qty: 3
Post Sleeves - Standard
Yellow
Qty: 1
Rubber Rings - 4 Inch I.D.
Purple
Qty: 2
Post Sleeves - Standard
Purple
Qty: 15
Rubber Rings - 3/16 Inch I.D.
Red
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Purple
Qty: 2
Rubber Rings - Flipper Standard
Purple
Qty: 3
(0)

Standard Black kit with extra post sleeves. Also, extra clear 4" bands for the slings and red flipper rubbers.

Submitted by: Anonymous Anonymous
Submitted on: 2019-12-01 16:06:17 2019-12-01 16:06:17
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Black
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 5
Post Sleeves - Standard
Yellow
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 3
Rubber Rings - 4 Inch I.D.
Translucent
Qty: 2
Post Sleeves - Standard
Black
Qty: 20
Rubber Rings - 4 Inch I.D.
Black
Qty: 2
(0)

All light blue

Submitted by: Anonymous Anonymous
Submitted on: 2020-03-09 20:46:54 2020-03-09 20:46:54
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Lt. Blue
Qty: 1
Rubber Rings - 4 Inch I.D.
Lt. Blue
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Lt. Blue
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Lt. Blue
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Lt. Blue
Qty: 1
Post Sleeves - Standard
Lt. Blue
Qty: 15
Rubber Rings - 1 Inch I.D.
Lt. Blue
Qty: 3
Rubber Rings - Flipper Standard
Lt. Blue
Qty: 3
(0)

Standard kit all in clear except for the different color post sleeves and red flipper rubbers.

Submitted by: Anonymous Anonymous
Submitted on: 2020-06-12 10:19:00 2020-06-12 10:19:00
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 4 Inch I.D.
Translucent
Qty: 2
Post Sleeves - Standard
Yellow
Qty: 4
Post Sleeves - Standard
Red
Qty: 5
Post Sleeves - Standard
Purple
Qty: 4
Post Sleeves - Standard
Black
Qty: 2
Rubber Rings - Flipper Standard
Red
Qty: 3
(0)

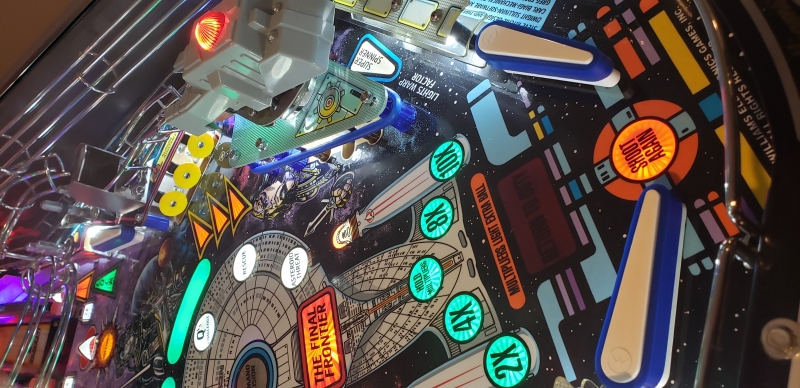

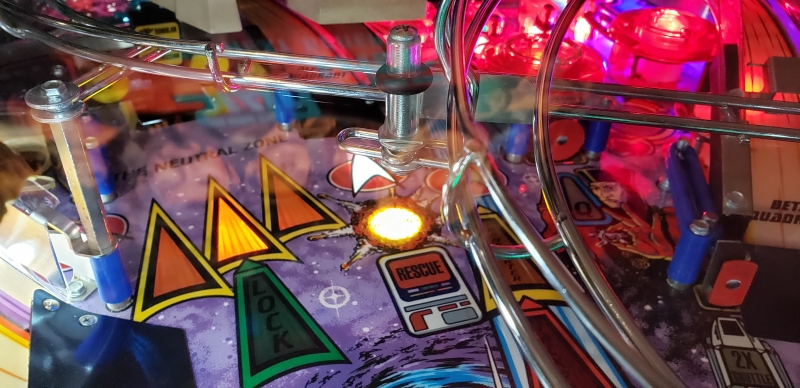

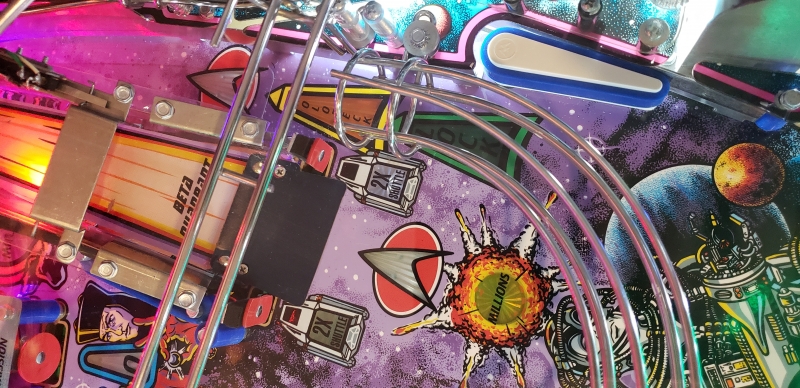

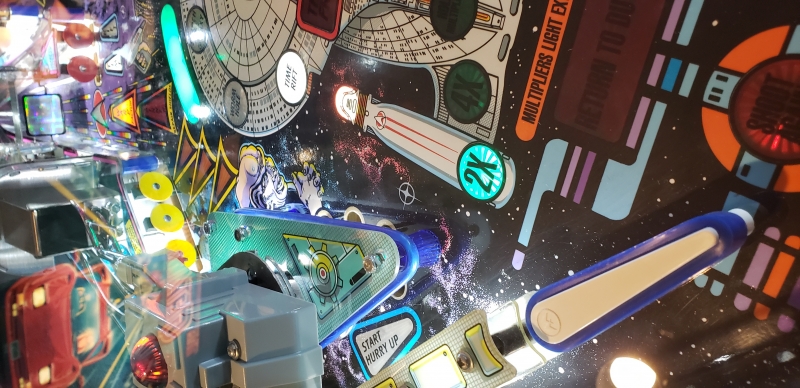

Blue ring kit. Including extra rings for posts on wire ramps. Also includes 1" and 1.25" bands for upper pop bumper area.

Submitted by: David A. David A.
Submitted on: 2021-06-22 10:16:52 2021-06-22 10:16:52
View Full Kit

Rubber Rings - Flipper Standard
Blue
Qty: 3
Rubber Rings - 4 Inch I.D.
Blue
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Blue
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 1
Rubber Rings - 3/16 Inch I.D.
Blue
Qty: 5
Post Sleeves - Standard
Blue
Qty: 16
Rubber Rings - 1 1/4 Inch I.D.
Blue
Qty: 2
Rubber Rings - 1 Inch I.D.
Blue
Qty: 3
(0)

All purple to match the playfield. Only clear are the 4” slings because any color there stands out a lot.

Submitted by: James B. James B.
Submitted on: 2021-11-26 23:50:00 2021-11-26 23:50:00
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Purple
Qty: 15
Rubber Rings - 1 1/4 Inch I.D.
Purple
Qty: 2
Post Sleeves - Standard
Purple
Qty: 2
Rubber Rings - 1 Inch I.D.
Purple
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Purple
Qty: 1
Rubber Rings - Flipper Standard
Purple
Qty: 3
Rubber Rings - 3/16 Inch I.D.
Purple
Qty: 5
Rubber Rings - 4 Inch I.D.
Translucent
Qty: 2
(0)

Standard ST TNG kit (black everything except the one yellow post). Low bounce flippers. One extra for each line item. Added some low bounce purple flippers to experiment with.

Submitted by: Ray G. Ray G.
Submitted on: 2022-06-25 20:22:37 2022-06-25 20:22:37
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 Inch I.D.
Black
Qty: 4
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 3
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 6
Post Sleeves - Standard
Yellow
Qty: 2
Post Sleeves - Standard
Black
Qty: 16
Rubber Rings - 4 Inch I.D.
Black
Qty: 3
Rubber Rings - Low Bounce Standard Flipper
Black
Qty: 4
Rubber Rings - Low Bounce Standard Flipper
Purple
Qty: 3
(0)

Modified kit, standard purple flippers

Submitted by: Anonymous Anonymous
Submitted on: 2022-11-24 20:43:35 2022-11-24 20:43:35
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 Inch I.D.
Black
Qty: 4
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 3
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 6
Post Sleeves - Standard
Yellow
Qty: 2
Post Sleeves - Standard
Black
Qty: 16
Rubber Rings - 4 Inch I.D.
Black
Qty: 3
Rubber Rings - Flipper Standard
Purple
Qty: 3
(0)

All clear Flippers have been swapped to blue translusent Led lights are fluted Comet Under PF are 4smd Comets in bright white. Pictures coming soon

Submitted by: Anonymous Anonymous
Submitted on: 2023-04-24 17:45:19 2023-04-24 17:45:19
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Post Sleeves - Standard
Translucent
Qty: 1
Rubber Rings - 4 Inch I.D.
Translucent
Qty: 2
Post Sleeves - Standard
Translucent
Qty: 15
Rubber Rings - Flipper Standard
Translucent
Qty: 3
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
(0)

Star Trek the Next Generation GLOW IN THE DARK KIT. All the rings and post sleeves are glow in the dark type in this kit. Looks great under a black light or if you have the pin stadium lights with the black lights.

Submitted by: Mark N. Mark N.
Submitted on: 2023-06-27 21:43:19 2023-06-27 21:43:19
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Glow
Qty: 1
Rubber Rings - 1 Inch I.D.
Glow
Qty: 3
Post Sleeves - Standard
Glow
Qty: 16
Rubber Rings - 4 Inch I.D.
Glow
Qty: 2
Rubber Rings - Flipper Standard
Glow
Qty: 3
Rubber Rings - 3/16 Inch I.D.
Glow
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Glow
Qty: 2
(0)

Clear and Purple kit, includes rubber for wireform posts and pop bumper area.

Submitted by: Randy W. Randy W.
Submitted on: 2023-09-13 20:17:46 2023-09-13 20:17:46
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Purple
Qty: 3
Rubber Rings - 4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Purple
Qty: 1
Rubber Rings - 3/16 Inch I.D.
Purple
Qty: 5
Post Sleeves - Standard
Purple
Qty: 16
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
(0)

all clear with purple post and flipper rubber

Submitted by: Anonymous Anonymous
Submitted on: 2023-09-17 10:58:05 2023-09-17 10:58:05
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Purple
Qty: 3
Post Sleeves - Standard
Purple
Qty: 17
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - Shooter Tip
Translucent
Qty: 1
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
(0)

ST:TNG rubber kit.

Submitted by: Eric B. Eric B.
Submitted on: 2023-09-24 12:20:10 2023-09-24 12:20:10
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 10
Rubber Rings - 4 Inch I.D.
Translucent
Qty: 2
Post Sleeves - Standard
Yellow
Qty: 4
Post Sleeves - Standard
Red
Qty: 5
Post Sleeves - Standard
Purple
Qty: 4
Post Sleeves - Standard
Black
Qty: 2
Rubber Rings - Low Bounce Standard Flipper
Purple
Qty: 1
Rubber Rings - Low Bounce Standard Flipper
Lt. Blue
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 4

Powered By Awesome Pinball Players Like You!
Made with love by 86Pixels
Titan Pinball © 2024
